4.2.7 Connect the Base Station Cables
1 If it is required that the cables enter the base station centrally from above, guide the
cables through the recess in the middle of the base station as shown in
figure 10 on
page 18.
Figure 24.
Power cable
(if used)
Data cable
016

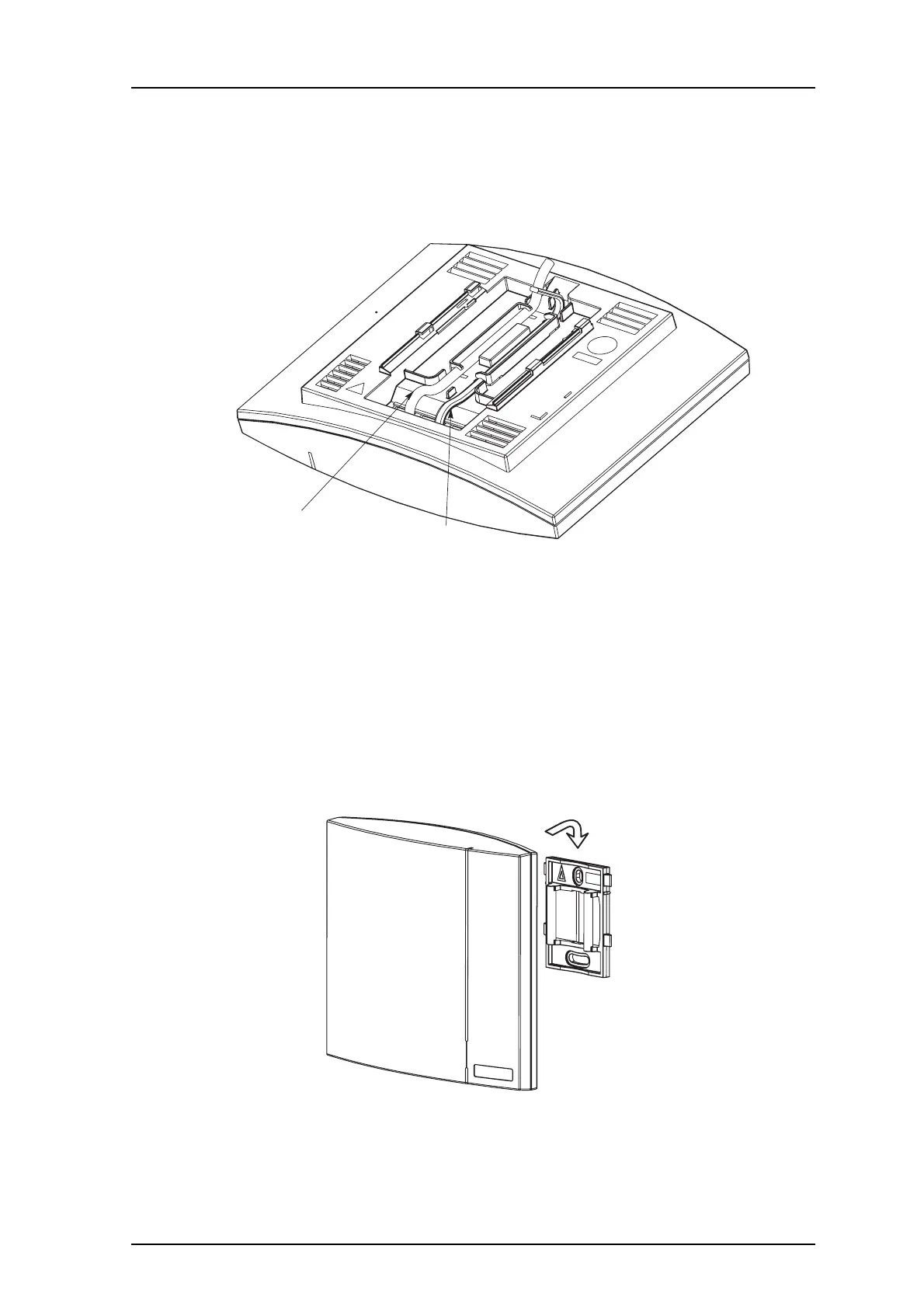

Figure 10. Cables entering centrally from above
2 Plug the modular jack of the data cable into one of the data/power connectors.
3 When an AC-adapter is used:
• Plug the modular jack of the AC-adapter in one of the data/power connectors.
• Plug the AC-adapter into a wall-outlet.
4.2.8 Mount the Base Station
1 Hold the base station flat against the mounting bracket and move it downwards
until it clicks, see
figure 11.
Figure 25.
017
Figure 11. Mounting the base station
