ASCOM IP-DECT Base Station User Manual

TD 92372GB
2007-06-18/ Ver. E
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
7
2.3 DECT Base Station BS3x0
The following versions of the are available:
• BS330 with Internal antenna
• BS340 with External antennas
2.3.1 DECT Base Station
Figure 11.
Test
(RJ12)
Data/Power
(RJ45)
Data/Power
(RJ45)
Front viewBack view
LED1
LED2
007

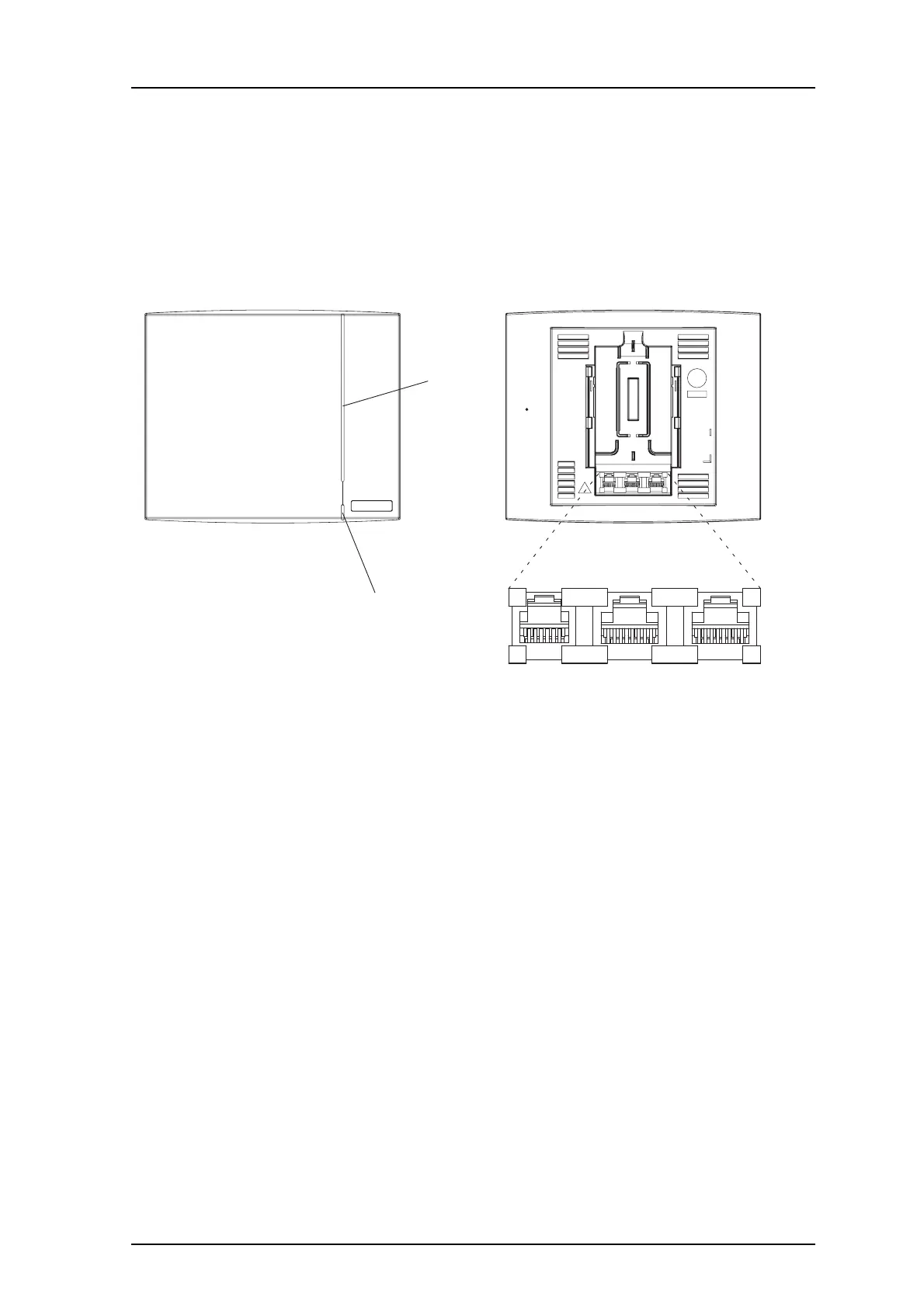

Figure 3. BS3x0 Overview
Contents of the Box
The box in which the base station is packed contains:
•A base station
• Two antennas (only base station with external antenna)
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The base station can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
Note: For more information about power distribution, see 4.3 Power the Base Station on
page 19.

ASCOM IP-DECT Base Station Specifications

General

Brand	ASCOM
Model	IP-DECT Base Station
Category	Cordless Telephone
Language	English
