ASCOM IP-DECT Base Station User Manual

TD 92372GB
2007-06-18/ Ver. E
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
21
5.2 Pin the IPBL Cable
All data cables used for the IPBL is standard CAT5 unshielded cable. It is assumed that
installation personnel know how to crimp these connectors to a cable.
5.2.1 Synchronization Cable
The maximum cable length between two IPBLs must not exceed 2000 meters.
1 Cut the cable to the correct length.
2 Connect the cable to a RJ45 modular jack. For information on pinning, see figure
13 and figure 14.
3 Label the cable.
Sync IN
Figure 27.
RJ45
modular jack
Sign Tx + Sign Tx - Sign Rx + Rx + Rx - Sign Rx - Tx + Tx -
Sign = Signalling
Rx = Reciever data pair
Tx = Transmitter data pair
026
15432678

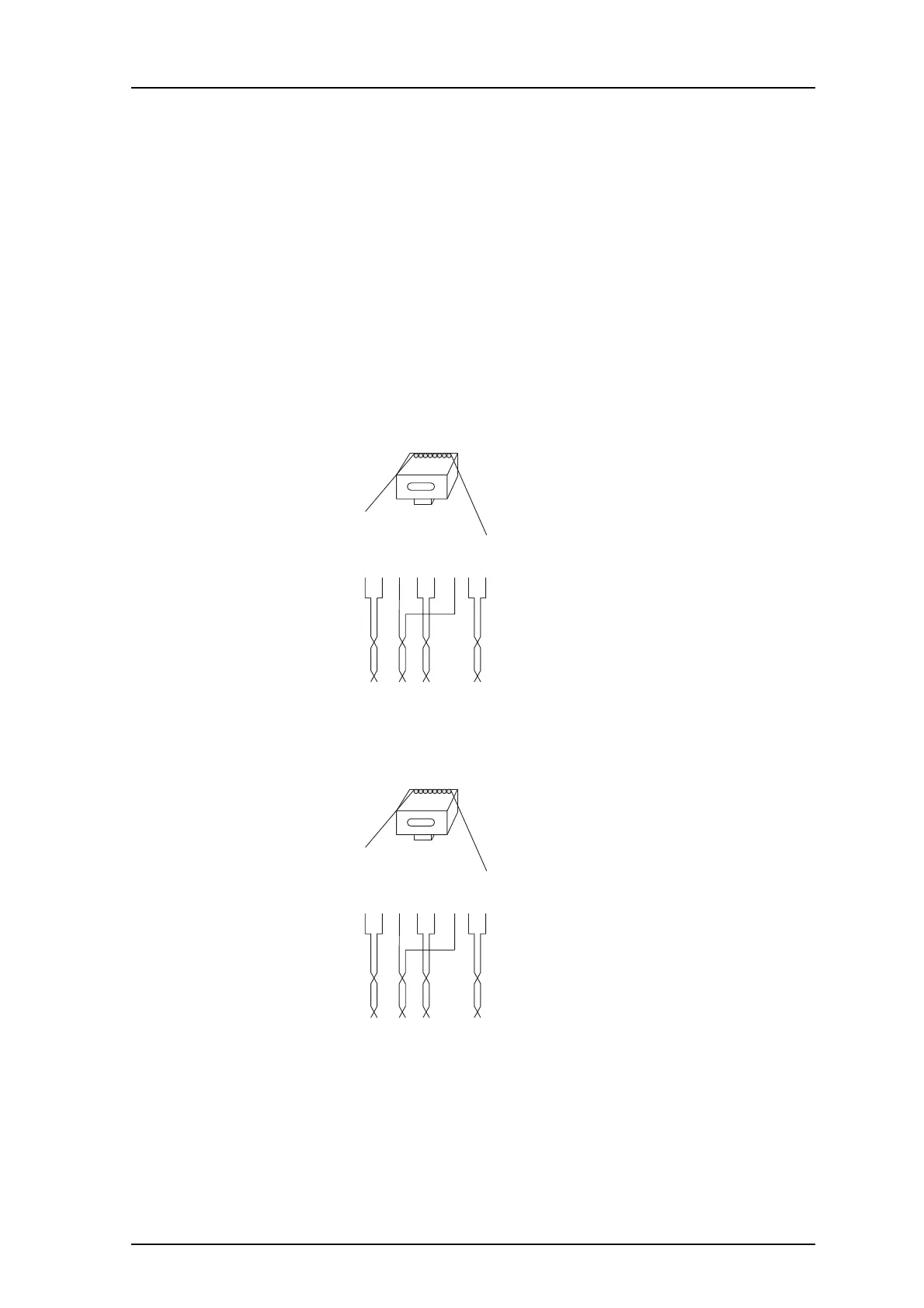

Figure 13. Connector pinning of the Sync IN cable
Sync OUT
Figure 28.
RJ45
modular jack
Sign Rx + Sign Rx - Sign Tx + Tx + Tx - Sign Tx - Rx + Rx -
Sign = Signalling
Rx = Reciever data pair
Tx = Transmitter data pair
027
15432678
Figure 14. Connector pinning of the Sync OUT cable
