ASCOM IP-DECT Base Station User Manual

TD 92372GB
2007-06-18/ Ver. E
Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
22
5.2.2 RFP Cable
The RFP cable connects the IPBL with the RFPs. The maximum cable length between IPBL
and a single RFP must not exceed 1500 meters.
Note: Ensure that during the installation, each RFP is given an extra length (5-10 metres)
of cable because it is possible that it will have to be moved for one reason or another.
1 Cut the cable to the correct length.
2 Connect the cable to a RJ45 modular jack. For information on the pinning, see
figure 15.
IMPORTANT: If local power supply is used for the RFP, the EPP cable pairs must not be
connected.
3 Label the cable.

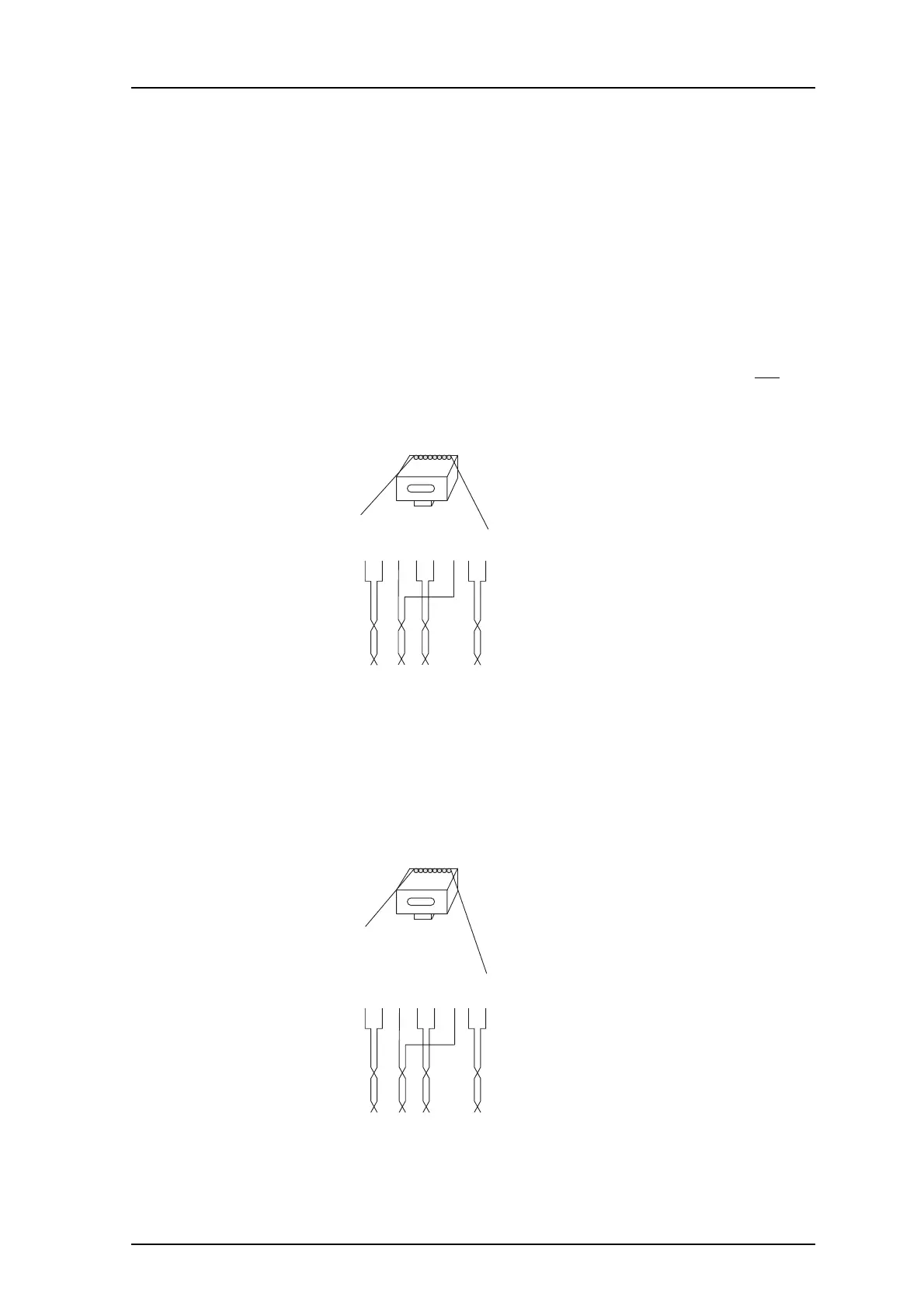

Figure 29.
RJ45
modular jack
EPP -b EPP -a SC1 -a SC0 -a SC0 -b SC1 -b NC NC
NC= Not Connected
EPP= Express Power pairs
SC = Data pair lead
028
15432678
Figure 15. Connector pinning of the RFP cable.
5.2.3 LAN Cable
1 Cut the cable to the correct length.
2 Connect the cable to a RJ45 modular jack. For information on the pinning, see
figure 16.
3 Label the cable.
Figure 30.
RJ45
modular jack
Ethernet A + Ethernet A - Ethernet B + NC NC Ethernet B - NC NC
NC = Not Connected
029
15432678
Figure 16. Connector pinning of the Ethernet cable.
