271
7647H–AVR–03/12
Atmel ATmega16/32/64/M1/C1

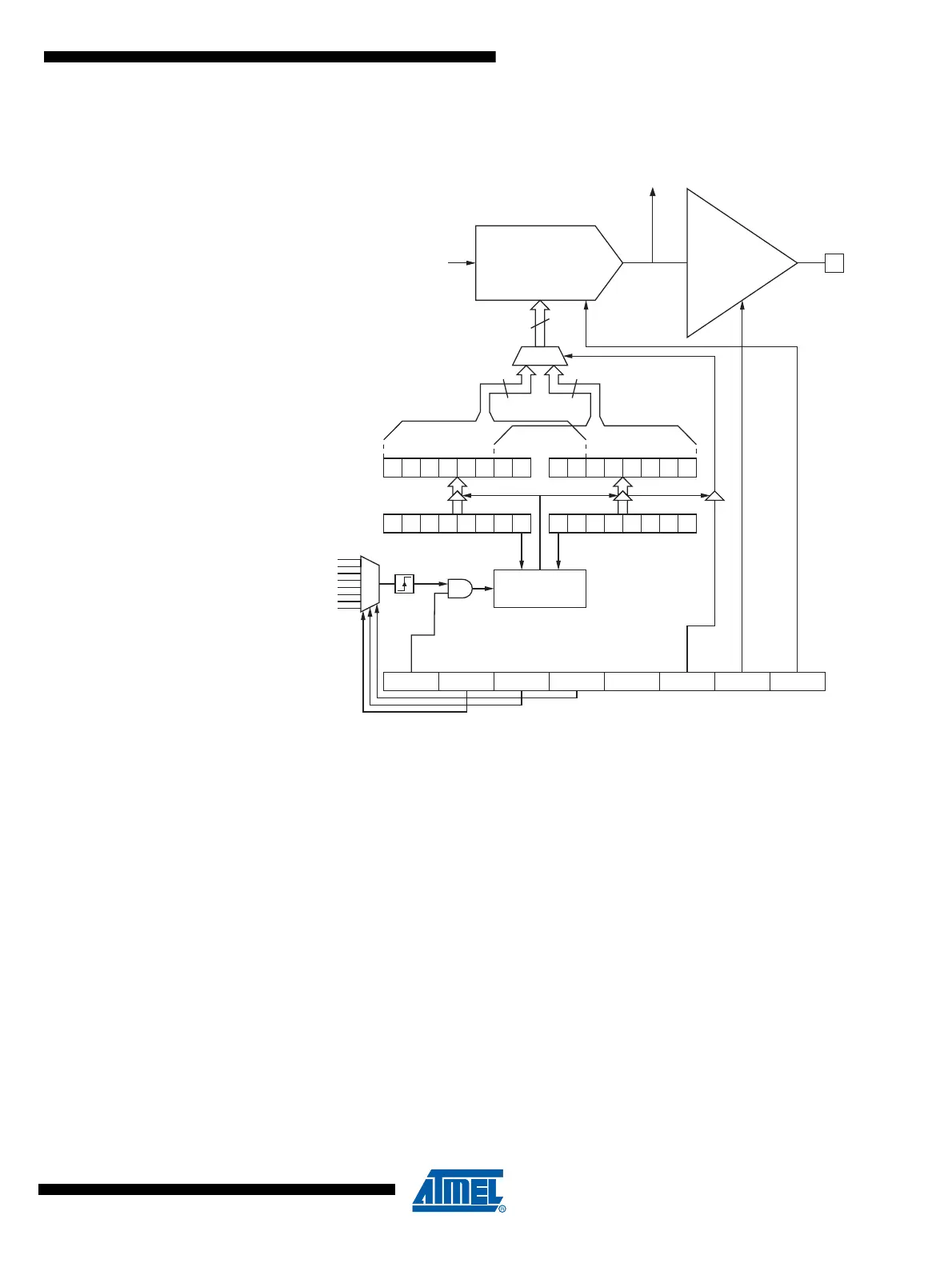

Figure 21-1. Digital to Analog Converter Block Schematic
21.2 Operation
The Digital to Analog Converter generates an analog signal proportional to the value of the DAC
registers value.
In order to have an accurate sampling frequency control, there is the possibility to update the
DAC input values through different trigger events.
21.3 Starting a Conversion
The DAC is configured thanks to the DACON register. As soon as the DAEN bit in DACON reg-
ister is set, the DAC converts the value present on the DACH and DACL registers in accordance
with the register DACON setting.
Alternatively, a conversion can be triggered automatically by various sources. Auto Triggering is
enabled by setting the DAC Auto Trigger Enable bit, DAATE in DACON. The trigger source is
selected by setting the DAC Trigger Select bits, DATS in DACON (See description of the DATS
bits for a list of the trigger sources). When a positive edge occurs on the selected trigger signal,
the DAC converts the value present on the DACH and DACL registers in accordance with the
register DACON setting. This provides a method of starting conversions at fixed intervals.
DAC Output
Driver
DALA DAOE DAEN
-DAATE DATS2 DATS1 DATS0
10
DACH DACL
DACON
1010
10
VRef
D2A pin
DAC
Result
Update DAC
Trigger
DAC Low bitsDAC High bits
Edge
Detector
Sources
