335

7647H–AVR–03/12

Atmel ATmega16/32/64/M1/C1

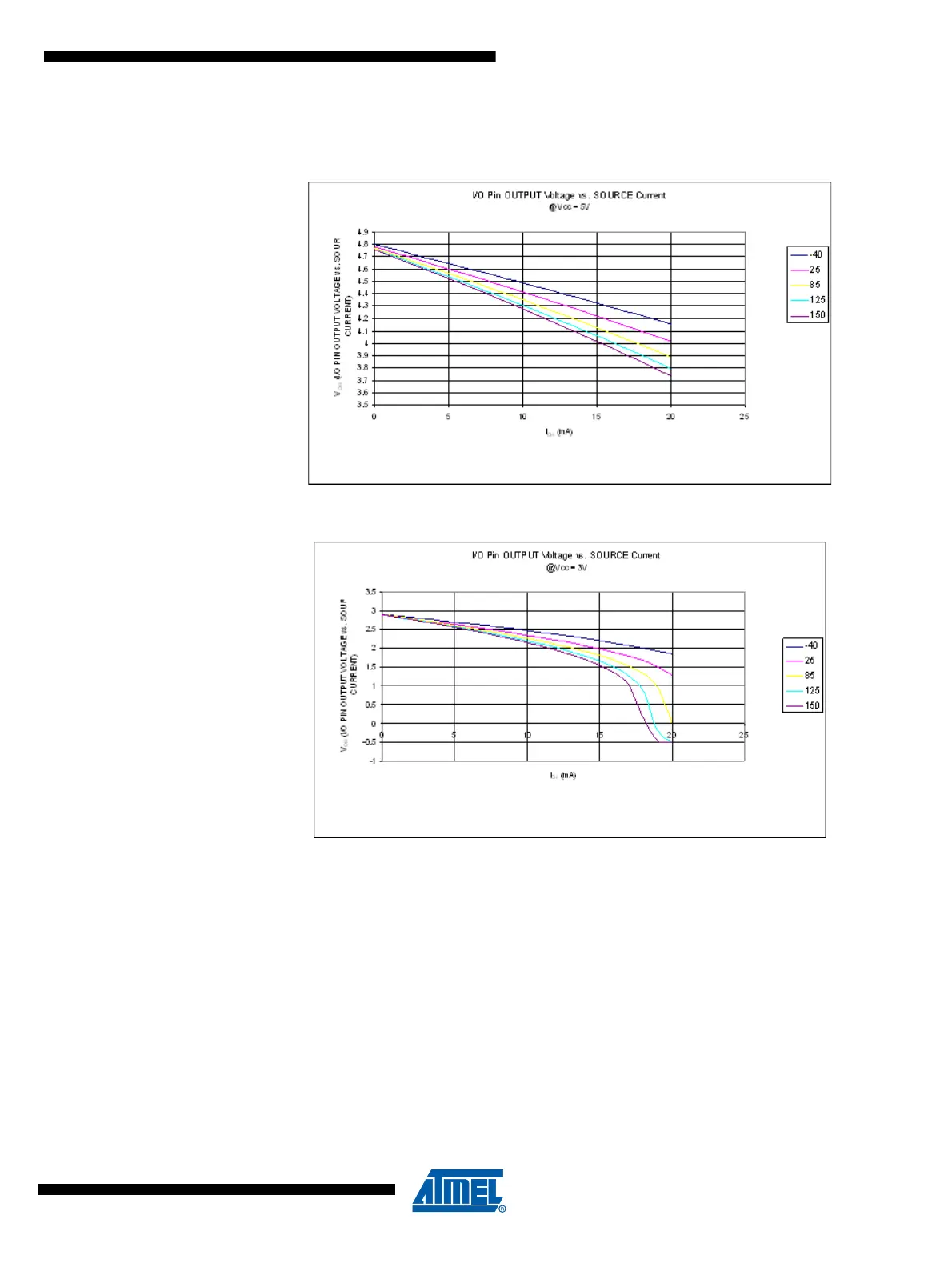

27.5 Pin Driver Strength

Figure 27-15. I/O Pin Output Voltage versus Source Current (V

= 5V)

Figure 27-16. I/O Pin Output Voltage versus Source Current (V

= 3V)
