333

7647H–AVR–03/12

Atmel ATmega16/32/64/M1/C1

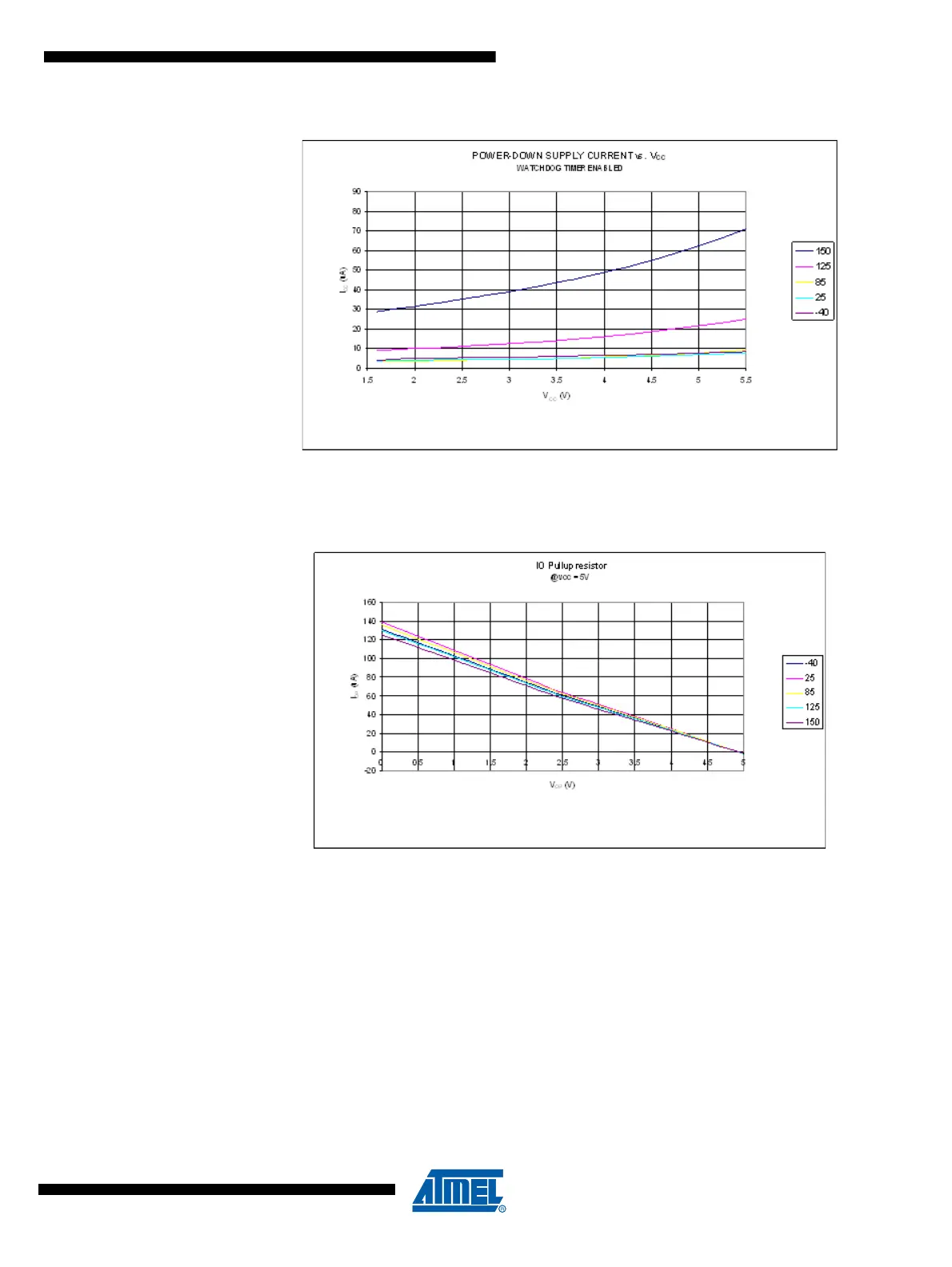

Figure 27-10. Power-Down Supply Current versus V

(Watchdog Timer Enabled)

27.4 Pin Pull-up

Figure 27-11. I/O Pin Pull-Up Resistor Current versus Input Voltage (V

= 5V)
