340
7647H–AVR–03/12
Atmel
ATmega16/32/64/M1/C1

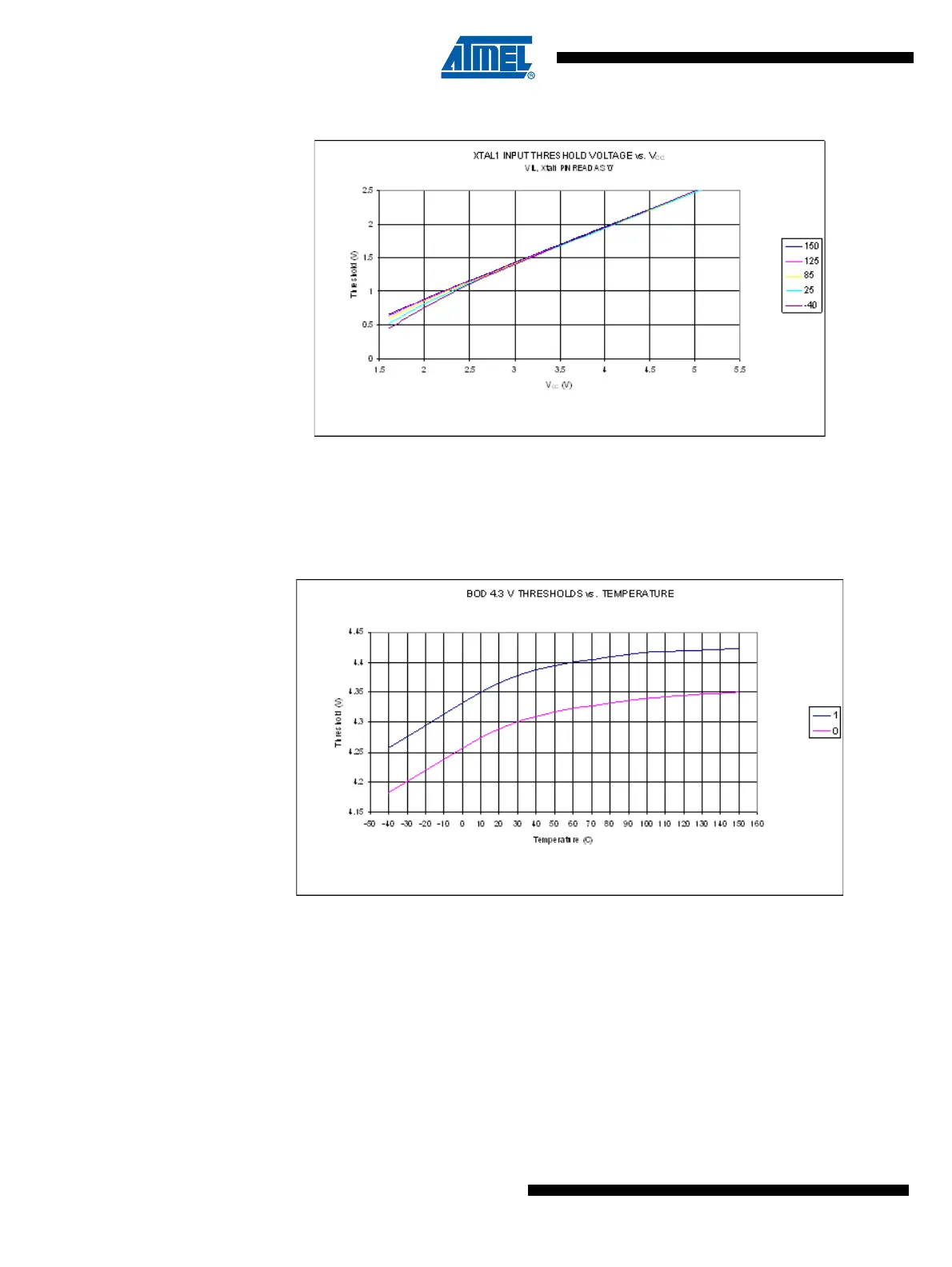

Figure 27-25.
XTAL1 Input Threshold Voltage versus V
CC
(XTAL1 Pin Read As '0')
27.7
BOD Thresholds and Analog
Comparator Hysterisis
Figure 27-26.
BOD Thresholds versus Temperature (BODLEVEL
Is 4.3V)
339
341
