Atmel ATmega32M1 User Manual

148
7647H–AVR–03/12
Atmel ATmega16/32/64/M1/C1
14.10 PSC Input Modes 001b to 10xb: Deactivate outputs without changing timing.

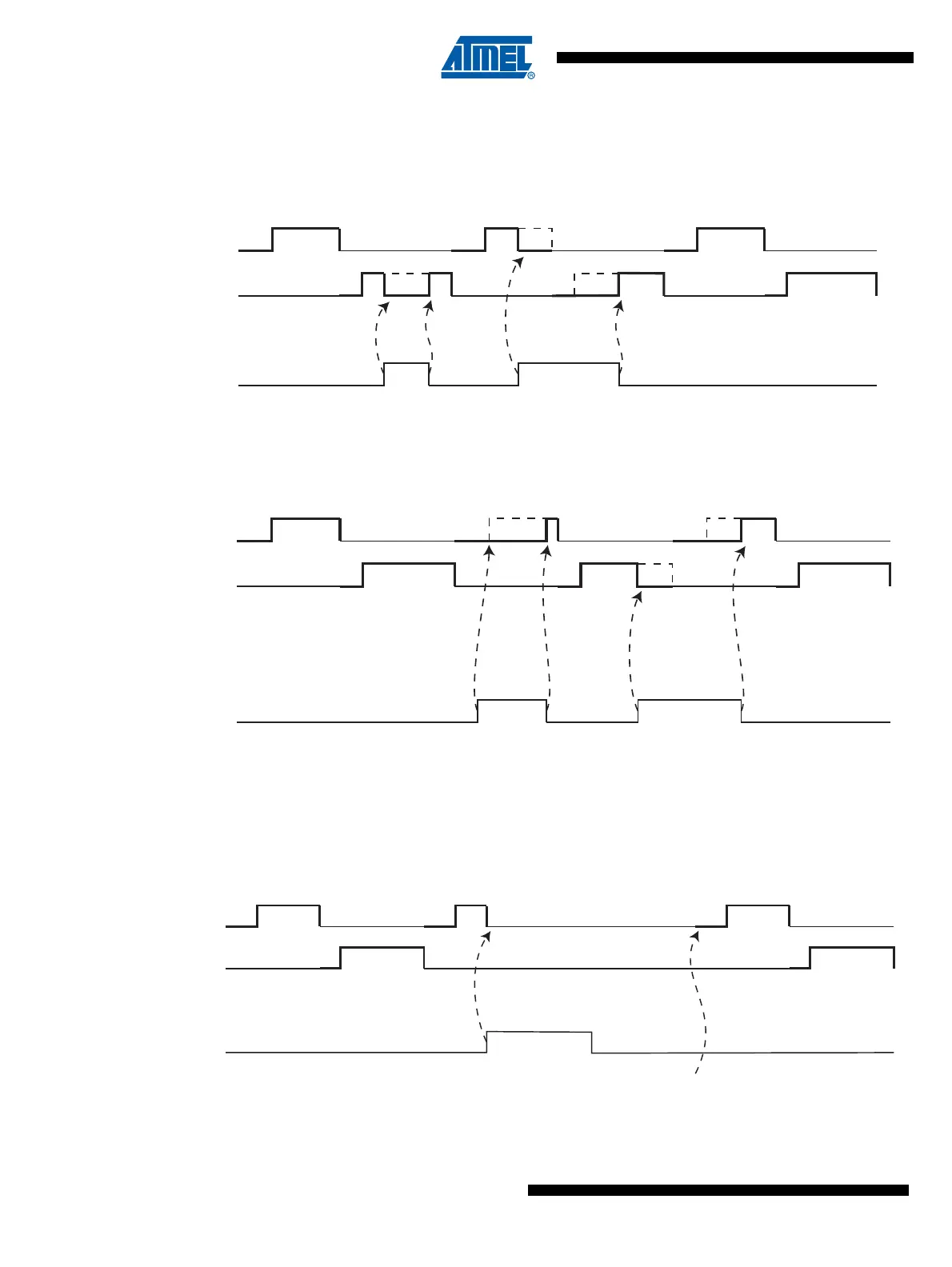

Figure 14-12. PSC behaviour versus PSCn Input in Mode 001b to 10xb
Figure 14-13. PSC behaviour versus PSCn Input A or Input B in Fault Mode 4
PSCn Input acts indifferently on On-Time0/Dead-Time0 or on On-Time1/Dead-Time1.
14.11 PSC Input Mode 11xb: Halt PSC and Wait for Software Action
Figure 14-14. PSC behaviour versus PSCn Input A in Fault Mode 11xb
Note: Software action is the setting of the PRUNn bit in PCTLn register.
PSCOUTnA
PSCOUTnB
PSCn Input
DT0 OT0 DT1 OT1 DT0 OT0 DT1 OT1DT0 OT0 DT1 OT1
PSCOUTnA
PSCOUTnB
DT0 OT0 DT1 OT1 DT0 OT0 DT1 OT1DT0 OT0 DT1 OT1
PSCn Input
PSCOUTnA
PSCOUTnB
DT0
OT0
DT1 OT1
DT0 OT0 DT0 OT0
DT1 OT1
Software Action (1)
PSCn Input
