144
7647H–AVR–03/12
Atmel
ATmega16/32/64/M1/C1
14.8
Signal Description

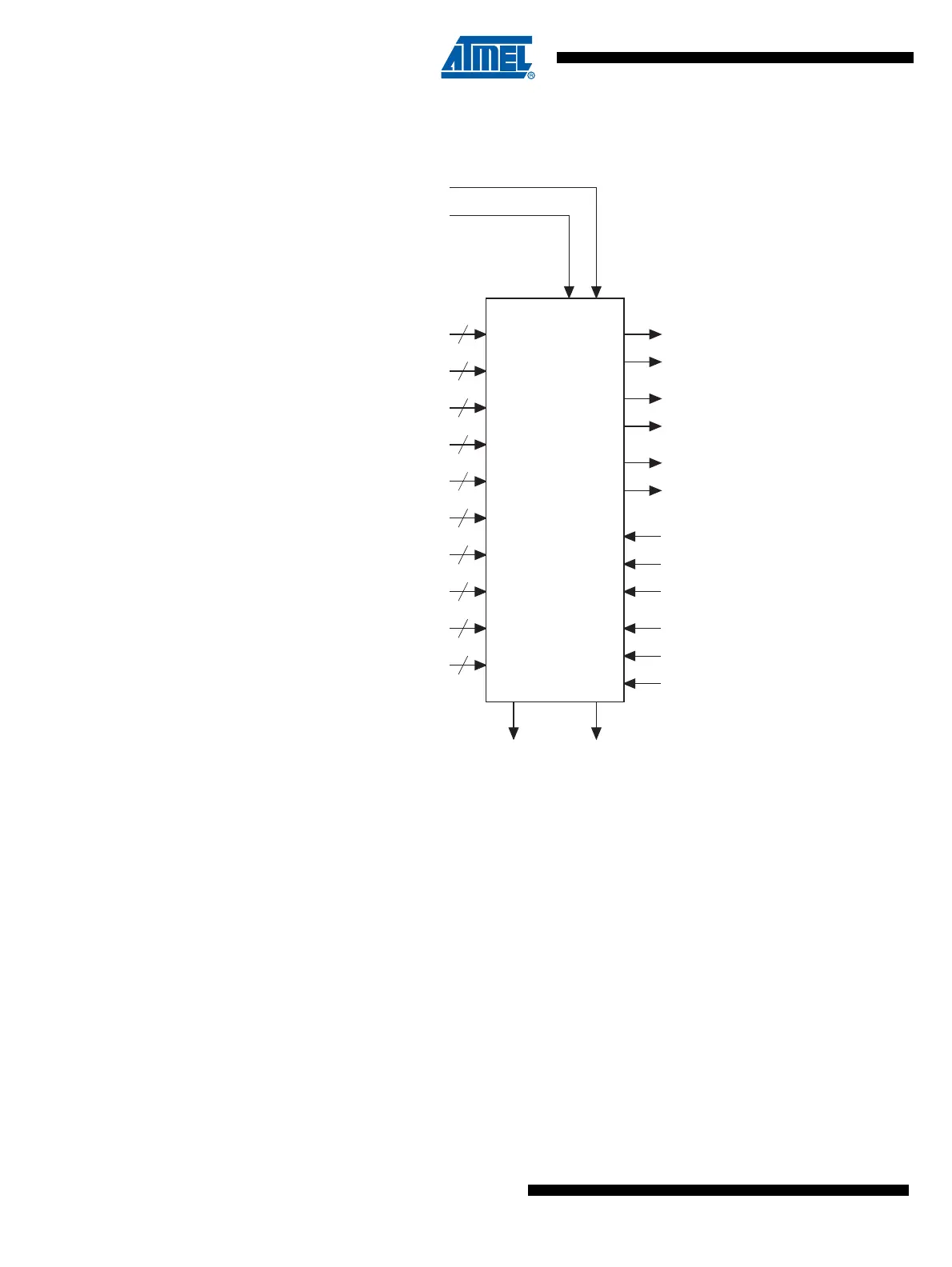

Figure 14-9.
PSC External Block View
POCRRB[11:0]
POCR0RA[11:0]
POCR0SA[11:0]
POCR0SB[11:0]
PSCIN2
AC1
O
PSCOUT0A
PSCOUT1A
CLK
12
12
12
12
CLK
PSCOUT0B
PSCOUT1B
PSCASY
I/O
PLL
PSCOUT2A
PSCOUT2B
POCR1RA[11:0]
POCR1SA[11:0]
POCR1SB[11:0]
12
12
12
POCR2RA[11:0]
POCR2SA[11:0]
POCR2SB[11:0]
12
12
12
IRQ PSC
AC2
O
PSCIN1
PSCIN0
AC0
O
143
145
