336

7647H–AVR–03/12

Atmel ATmega16/32/64/M1/C1

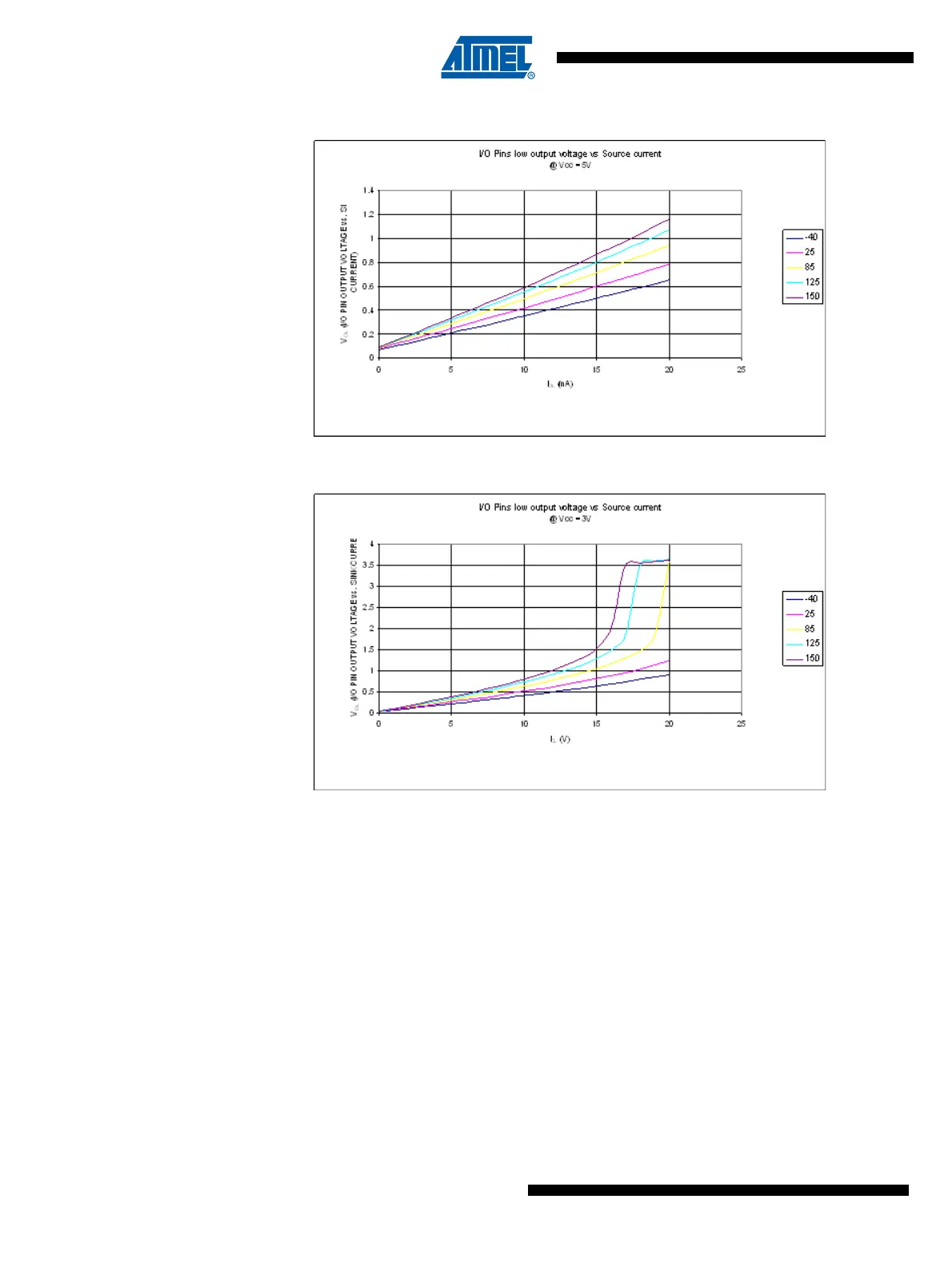

Figure 27-17. I/O Pin Low Output Voltage versus Source Current (V

= 5V)

Figure 27-18. I/O Pin Low Output Voltage versus Source Current (V

= 3V)
