343
7647H–AVR–03/12
Atmel
ATmega16/32/64/M1/C1

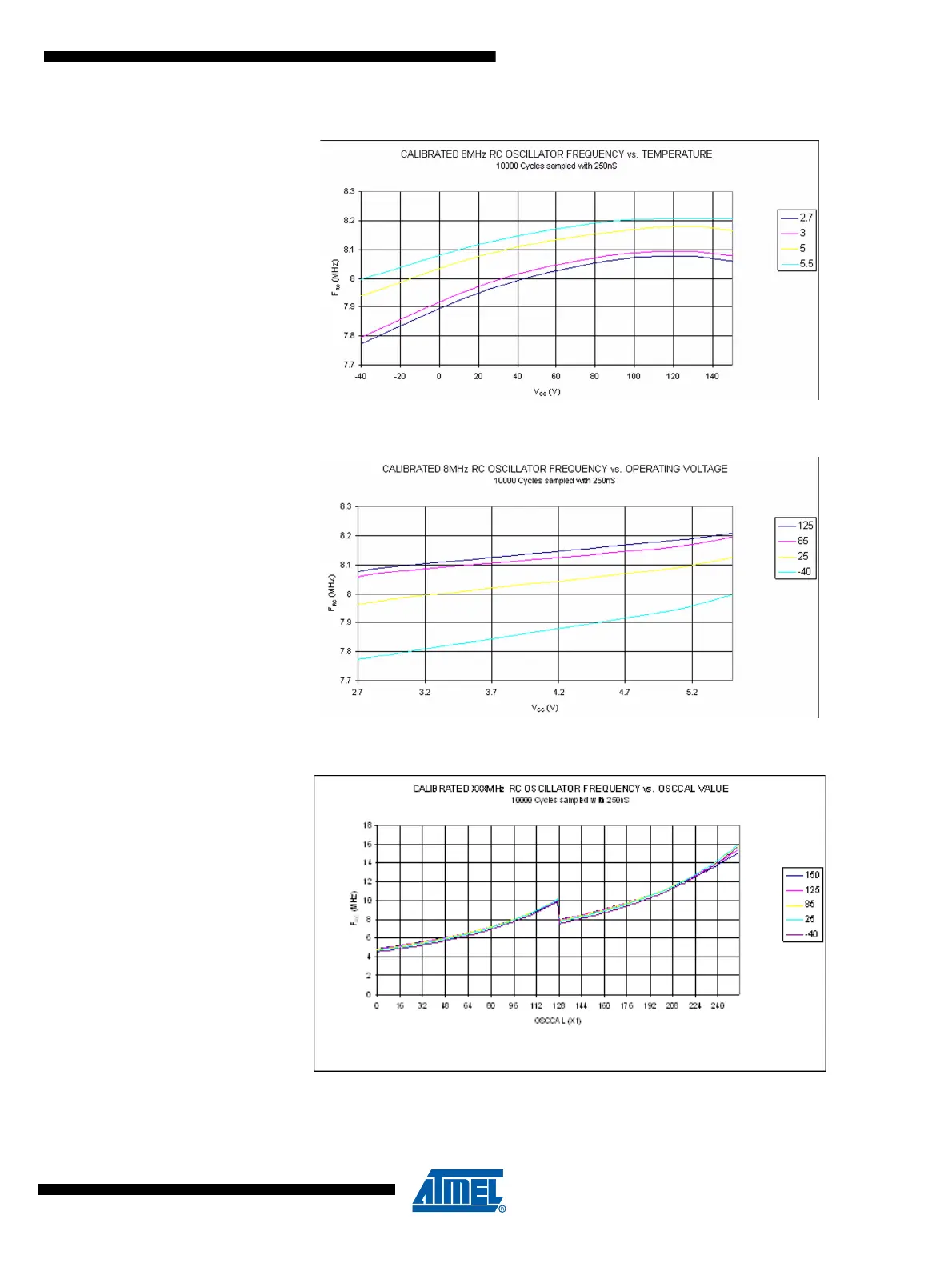

Figure 27-32.
Calibrated 8MHz RC Oscillator
Frequency verus Temperature
Figure 27-33.
Calibrated 8MHz RC Oscilla
tor Frequency versus V
CC
Figure 27-34.
Calibrated 8MHz RC Oscillator Fr
equency versus Osccal Value
342
344
