User's Manual 7. Performing Advanced Operations

131 C450HD IP Phone

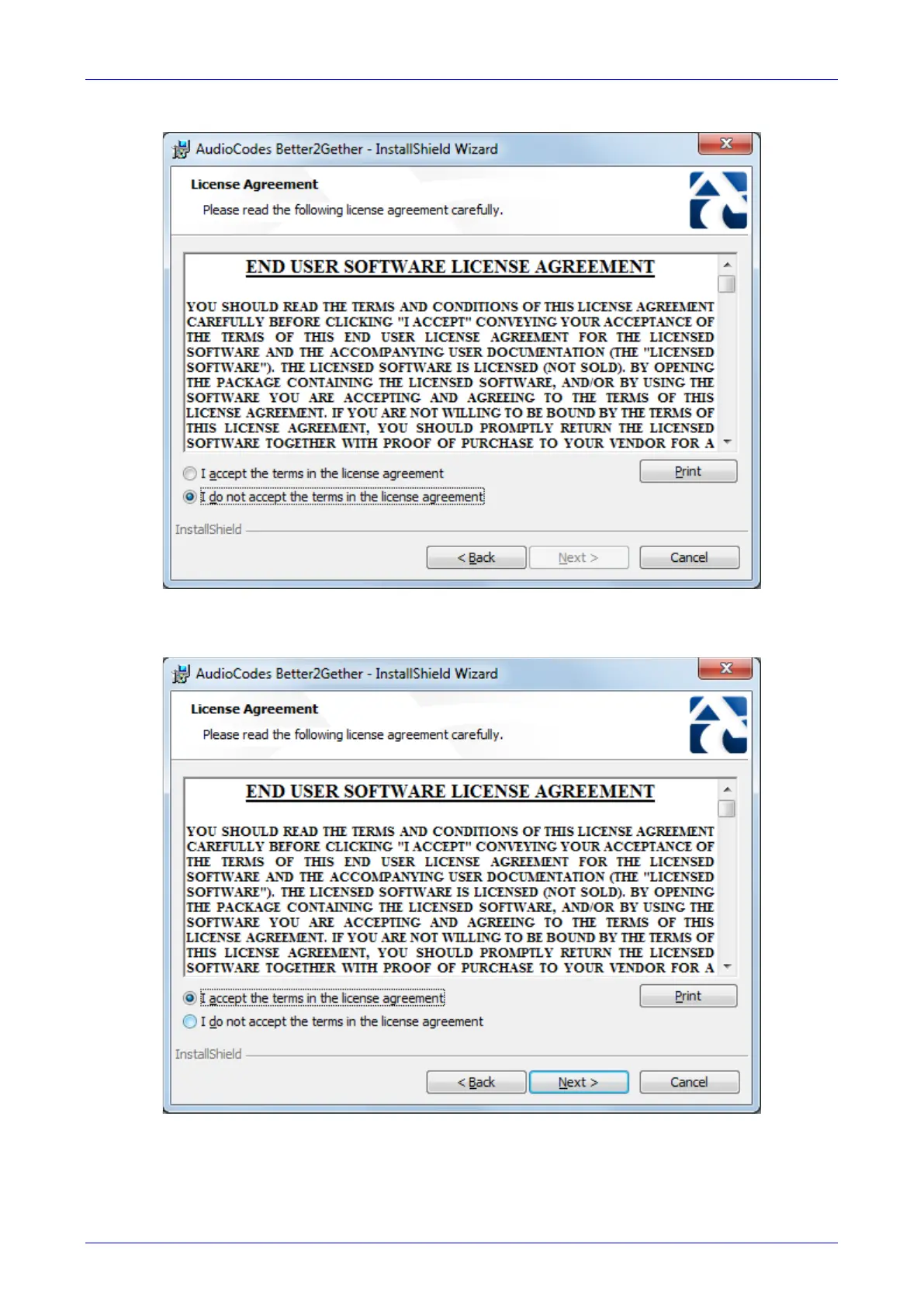

Figure 7-3: License Agreement

3. Select the I accept… option and click Next.

Figure 7-4: License Agreement

4. Click Next; the Destination Folder screen opens.
