User's Manual 7. Performing Advanced Operations

133 C450HD IP Phone

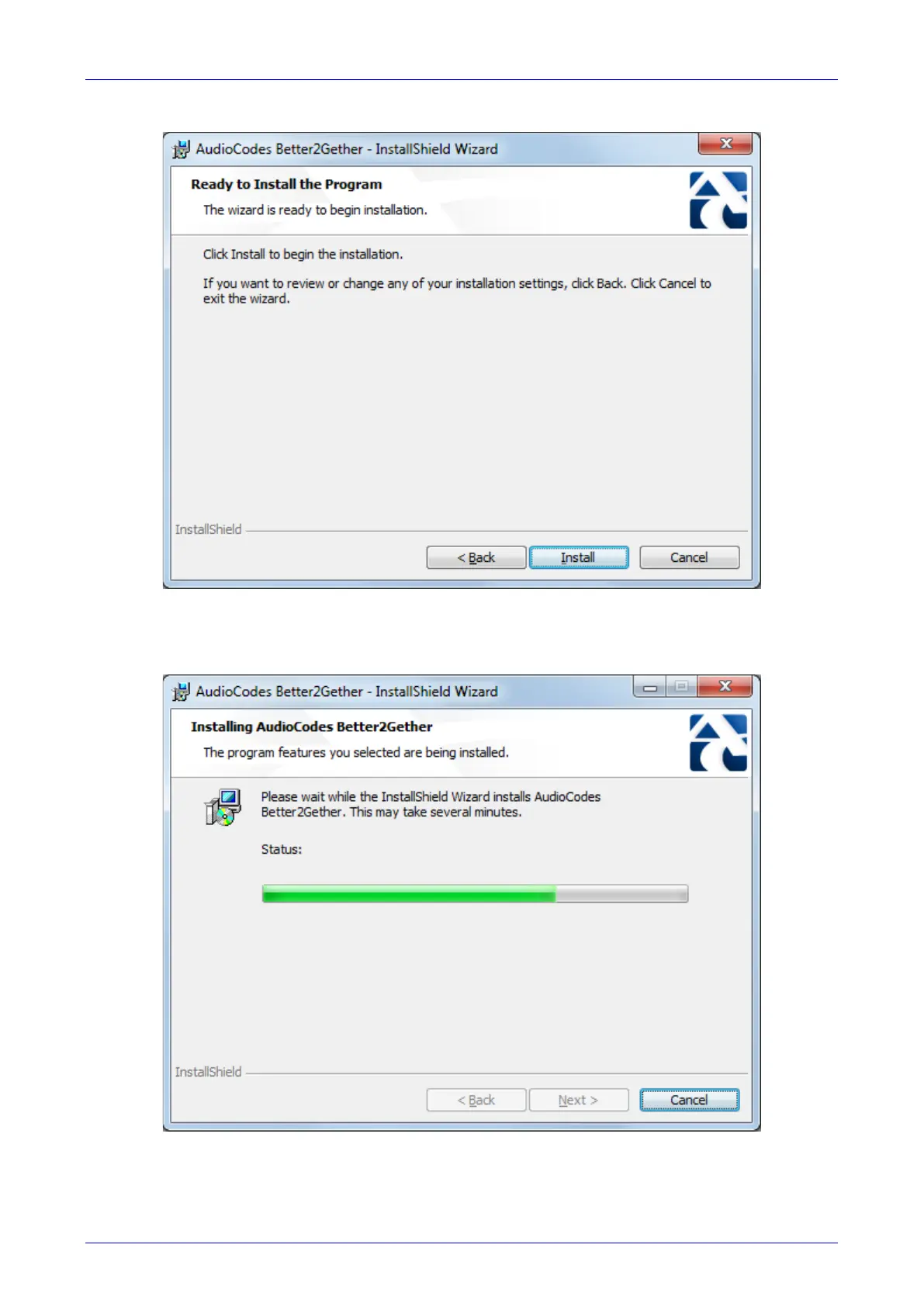

Figure 7-7: Ready to Install

8. Click the Install button; the Installing AudioCodes Better2Gether screen opens indicating

installation progress status.

Figure 7-8: Installing AudioCodes Better2Gether

9. Wait until the following screen is displayed:
