C450HD IP Phone
User's Manual 16 Document #: LTRT-13261
2.2.2 Rear View
The rear view of the phone is shown in the figure below and described in the table below.

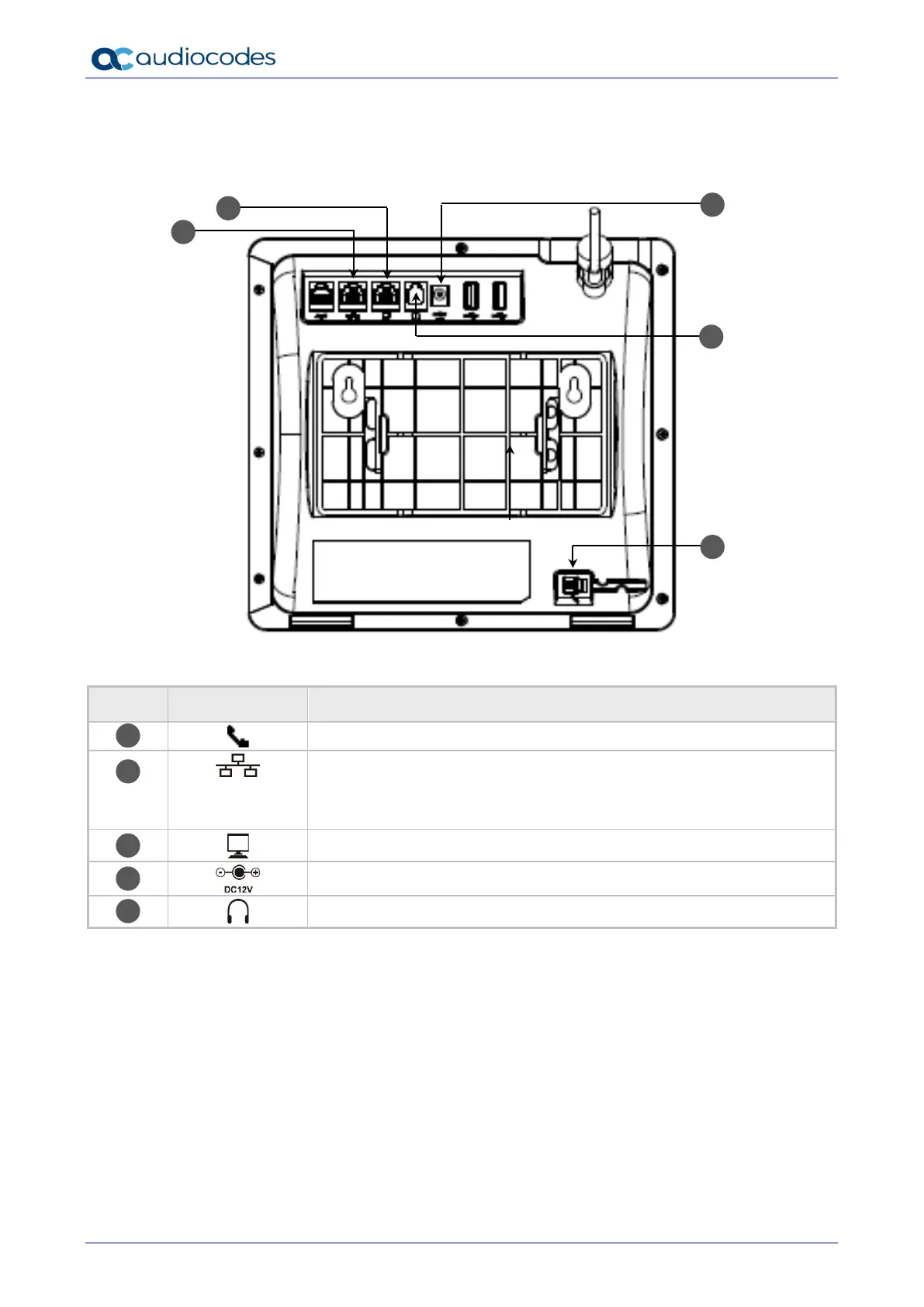

Figure 2-2: Rear View
Table 2-2: Rear View Description
# Label Description
Handset jack, i.e., port RJ-9, to connect the handset.
RJ-45 port to connect to the Ethernet LAN cable for the LAN connection
(uplink - 10/100/1000 Mbps). If you're using Power over Ethernet (PoE),
power to the phone is supplied from the Ethernet cable (draws power
from either a spare line or a signal line).
RJ-45 port to connect the phone to a PC (10/100/1000 Mbps downlink).
12V DC power jack that connects to the AC power adapter.
Headset jack, i.e., RJ-9 port that connects to an external headset.
1
2
3
4
5
2
3
4
5
1
