C450HD IP Phone
User's Manual 18 Document #: LTRT-13261
Note: If the LAN to which the phone is connected supports Power over Ethernet (PoE), no
AC adapter is required; the phone receives power from the Ethernet network.
Prior to connecting power, refer to the Compliancy and Regulatory Information at
www.audiocodes.com/library.
2.4 Mounting the Phone
The phone can be mounted on a:
Desk (see Section 2.4.1 below)
Wall (see Section 2.4.3)
See also https://www.youtube.com/watch?v=oGe9STB9lFE to assemble the base stand.

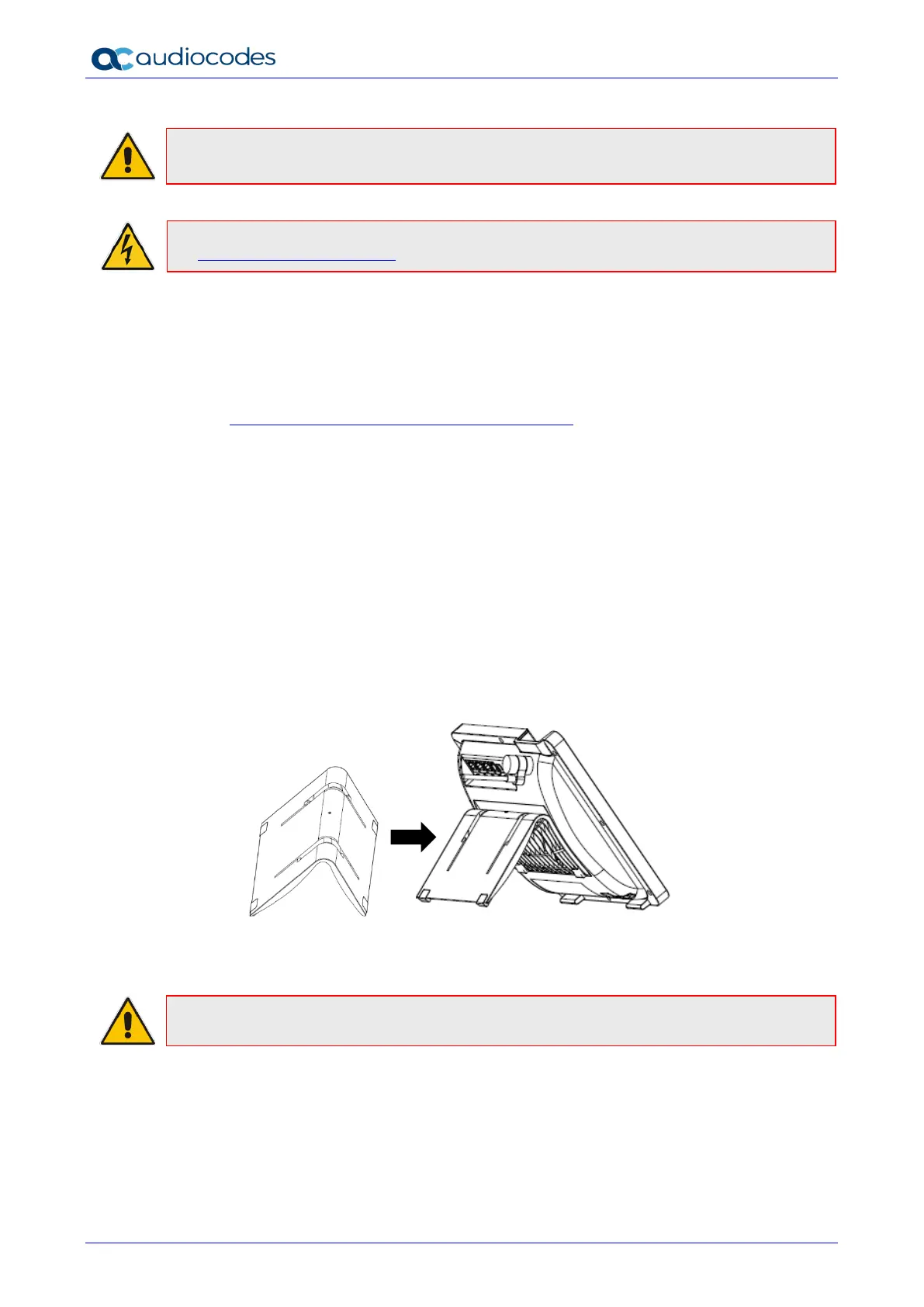

2.4.1 Desktop Mounting
This section shows how to mount the phone on a flat surface like a desk.
To mount the phone on a flat surface like a desk:
1. Off-hook the handset (if on-hook) and place the phone upside down, i.e., base-up, on your
desktop.
2. On the phone's stand, identify outer notches.
3. On the phone's base, identify outer rails.
4. Invert the stand and align its outer notches with the base's outer rails.
5. Insert the stand's outer notches into the base's outer rails and slide the notches along the
rails until the stand click-locks into the base.
6. Revert the phone and stand it on the desktop.
2.4.2 Mounting the Expansion Unit on a Desktop
Note: Only applies to C450HD phone users with the Expansion Unit option.
A dedicated stand is supplied for the Expansion Unit. Its mounting mechanism is identical to the
phone's (see the previous section for more information).
2.4.2.1 Routing the Handset Cable
The phone features a groove for routing the handset cable.
