System Units – Overview
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 11

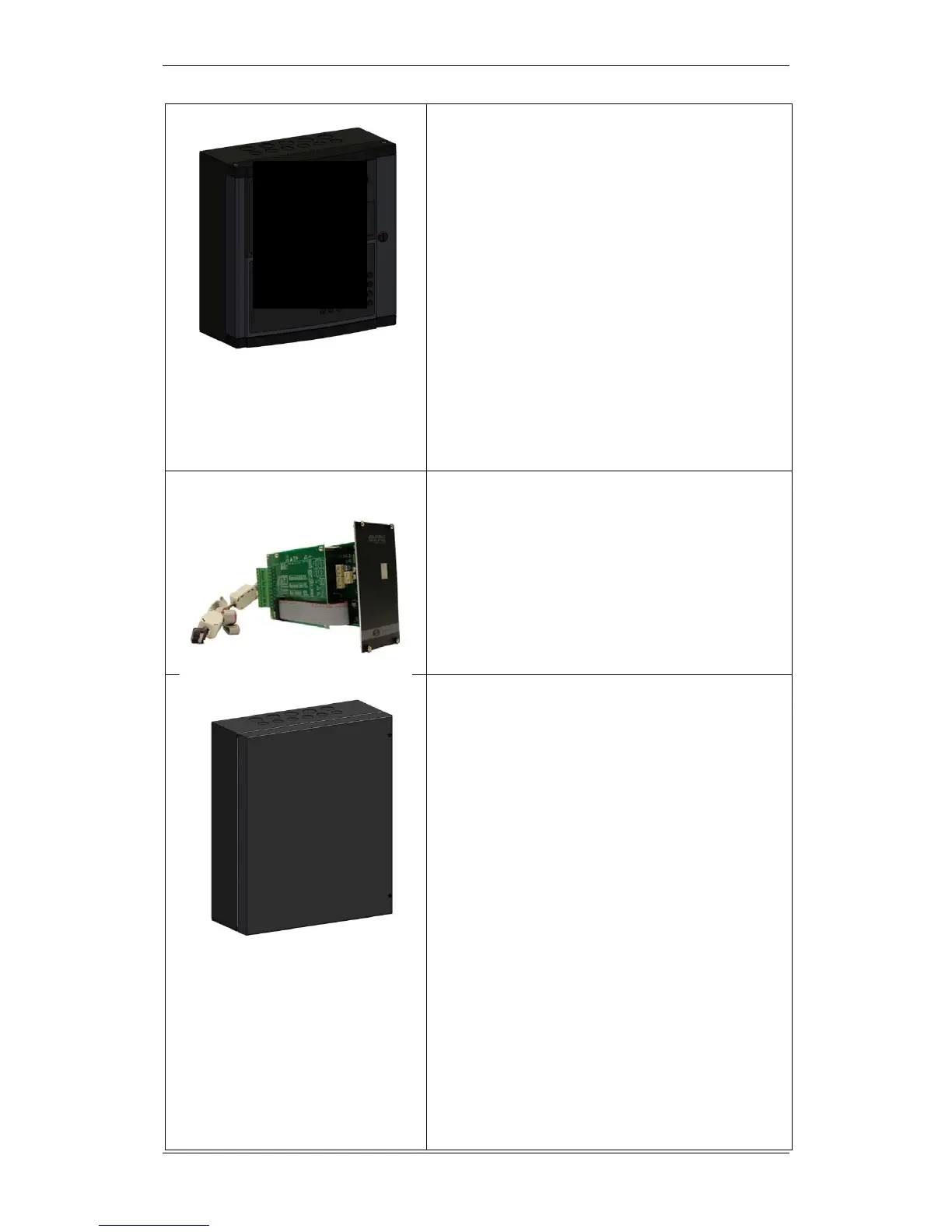

Controller BC-420
The Controller, BC-420, serves as a connection unit
for the detection loop, alarm sounders, controls and
inputs.
It can accommodate up to a maximum of 12 modules.
The panel provides connections for:
2 Ethernet ports and 2 USB host ports
1 RS-232, RS-422 or RS-485 serial port for
communication with third party equipment
1 AutroFieldBus (AFB) interface
1 AlCom+ interface
FailSafe relay output
Dimensions:
HxWxD (mm): 350 x 350 x 194
Controller BC-440
The Controller Rack Unit BC-440 serves as a
connection unit for the detection loop, alarm sounders,
controls and inputs. It is a variant of the BC-420
Controller prepared for rack installations. Together
with the IO modules the unit will have the full
functionality of the BC-420 Controller.
Dimensions:
3Ux12HPx200mm
Power Cabinet BP-405
The Power Cabinet BP-405 provides space for two
12V/18Ah batteries (not included). The power supply
and battery brackets are already mounted when the
cabinet is delivered from the factory.
The cabinet provides:
Power Board BSF-400, including:
AutroFieldBus interface
115VAC /230VAC input
6 outputs 24VDC (max. 2A each)
1 fault relay output
Dimensions:
HxWxD (mm): 420 x 346 x 146
To Next Page
