Appendix A - Controller Board BSA_400
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 72

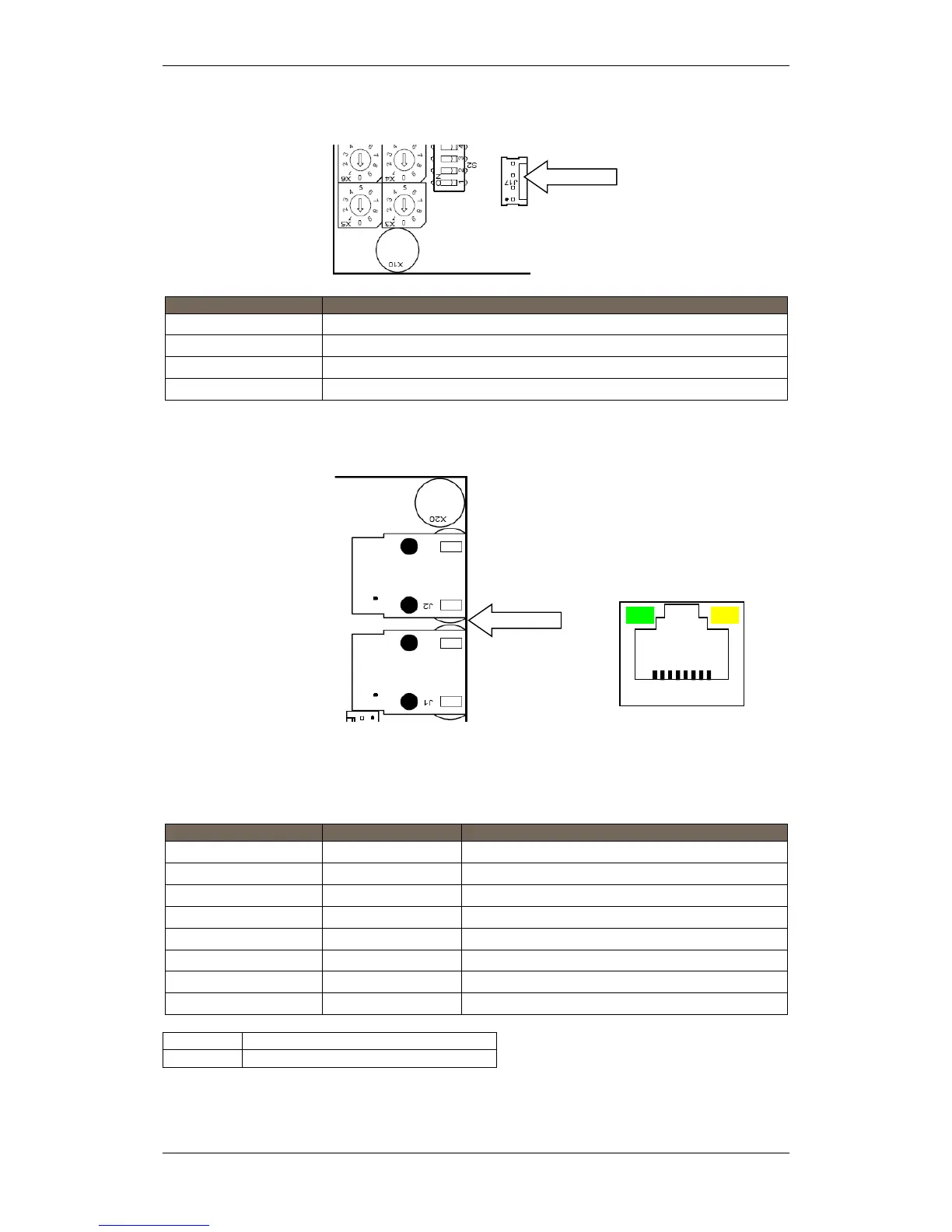

14.17 LCD Backlight Connector J17
14.18 Ethernet Ports (RJ-45 Connectors)
The BSA-400 board provides two separate 10/100Mbit Ethernet ports.
Each connector has 2 built-in status LEDs; Link and Act/Speed. The
connector is an RJ-45 modular jack, suitable for shielded cable CAT5
which allows cable lengths up to 100m.
If ON, 100MBit/s, if OFF, 10MBit/s
