3. System Units – Overview
For detailed information on each system unit, refer to separate
datasheets.

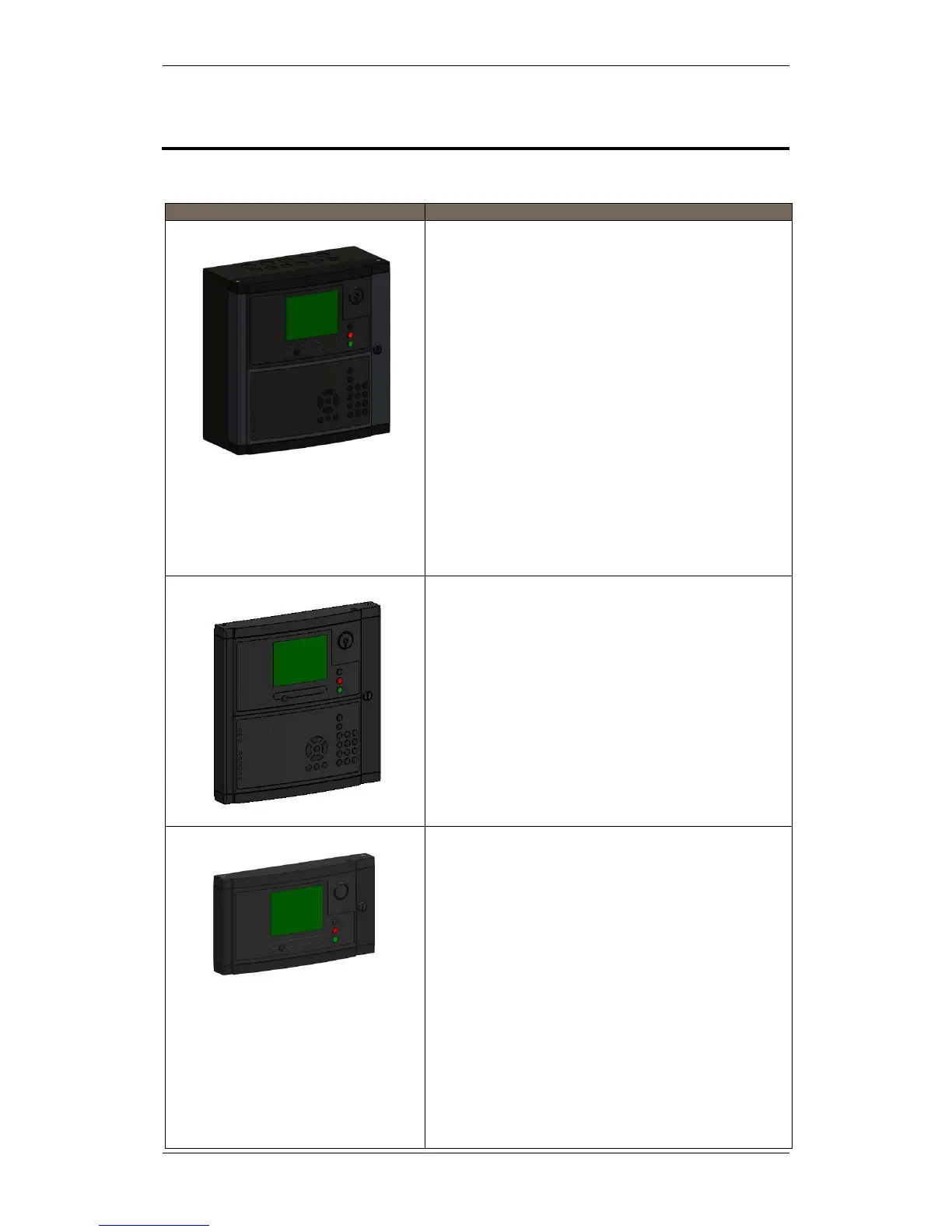

Fire Alarm Control Panel BS-420
BS-420 is a complete fire alarm control panel with full
operation capabilities. The panel serves as an
operating panel for one or several defined operation
zones. All alarm handling and system features can be
controlled and monitored from the panel.
The panel provides connections for:
2 Ethernet ports and 2 USB host ports
1 RS-232, RS-422 or RS-485 serial port for
communication with third party equipment
1 AutroFieldBus (AFB) interface
1 AlCom+ interface
FailSafe relay output
Power redundant
Dimensions:
HxWxD (mm): 350 x 350 x 194
Operator Panel BS-430
BS-430 serves as an operating panel for one or
several defined operation zones.
All alarm handling and system features can be
controlled and monitored from the panel.
Dimensions:
HxWxD (mm): 350 x 350 x 84
Repeater Panel BU-BV-420
The Repeater Panel BU-BV-420 serves as both a Fire
Brigade Panel and an Information Panel. Settings on a
dipswitch determine the type of panel.
The Fire Brigade Panel displays alarms and allows you
to operate alarms and receive additional information
related to the relevant operation zone.
The Information Panel serves as an indication device
only. It provides information related to the defined
operation zone(s).
Dimensions:
HxWxD (mm): 195 x 350 x 84
