Autronica Autro Safe User Manual

Mounting Instructions
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 15

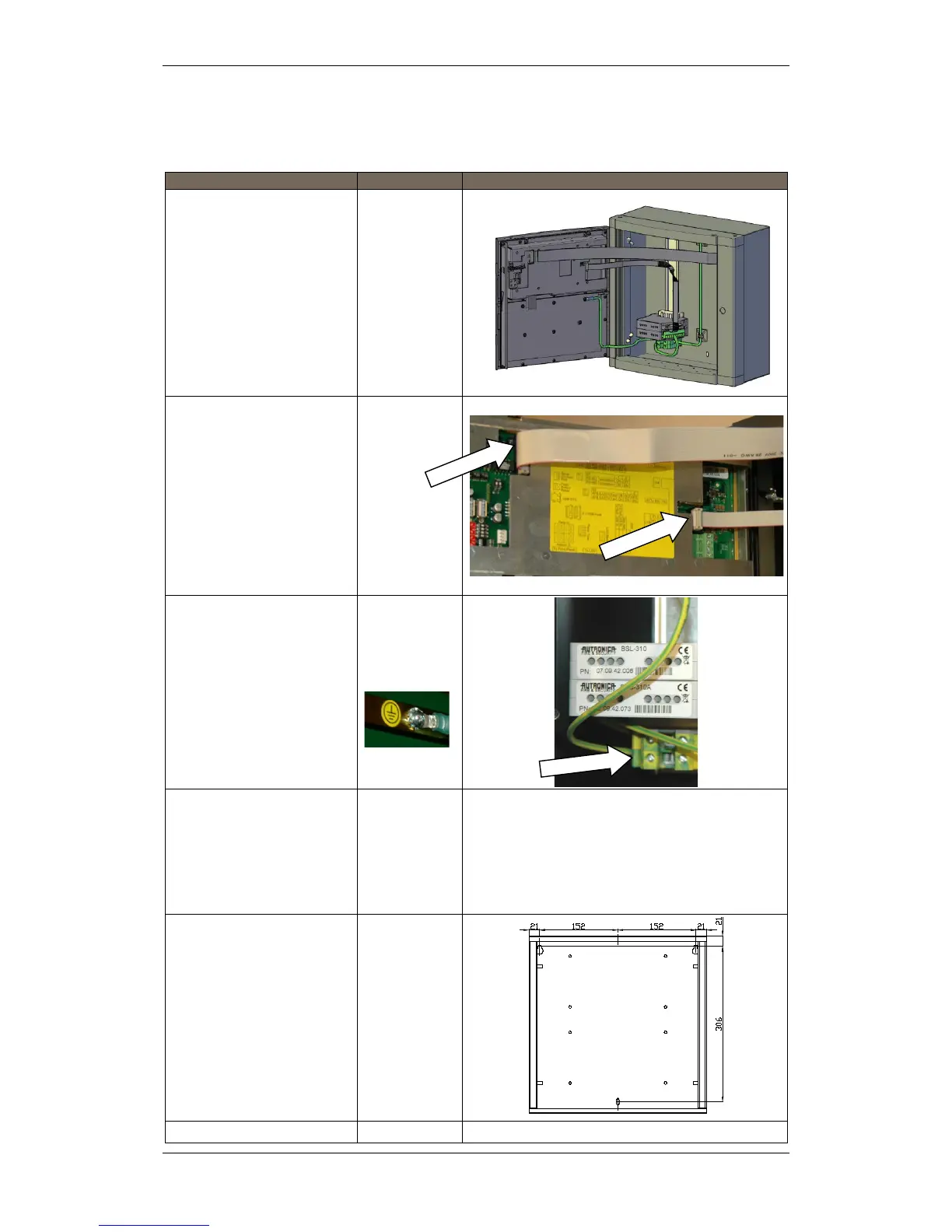

5.2 Mounting Fire Alarm Control Panel BS-420 /
Controller BC-420
Instructions
Remarks
Illustrations

Unlock the front panel
by turning the unbraco
key clockwise.
 Open the front panel.
In order to easily
access the
mounting holes
when mounting
the cabinet, the
front panel should
be removed.

Disconnect both ribbon
cables from the front
panel.

Unscrew and disconnect
the earth cable from the
termination block inside
the cabinet.
Note: Do NOT
unscrew the earth
cable from the
connection point
on the front panel
(PE=Protective
Earth).

Loosen the 4 wing nuts
located on the right and
left hand side of the
cabinet, then close the
front panel, and remove
the front panel from the
cabinet.

Mark and drill the 3
holes according to the
illustration.
The cabinet has 3
mounting holes
located at the
rear. The 2 upper
holes are of key-
hole-type.

Partly fasten the upper
