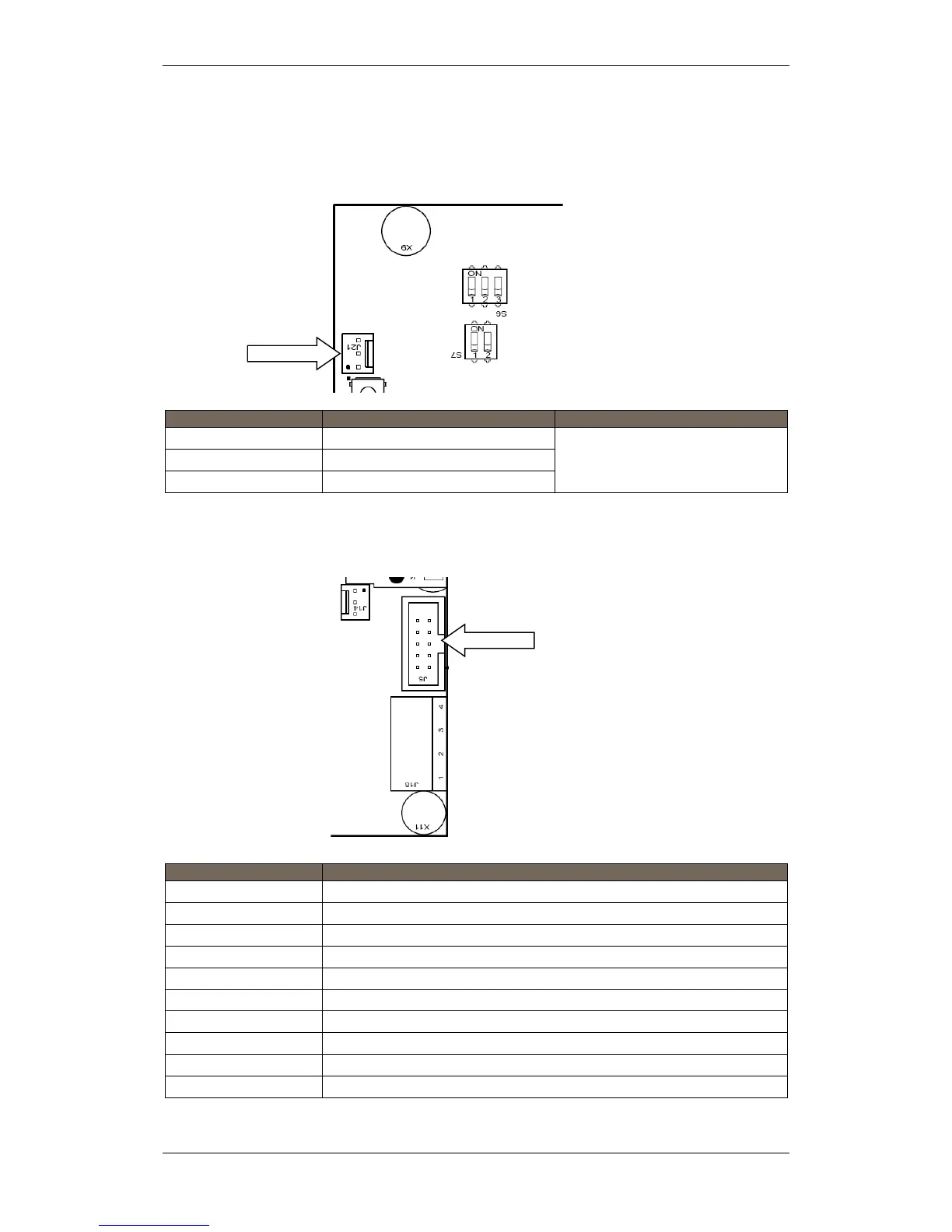

14.15 Serial Debug Connector J21
A standard AutroSafe programming cable XJA-029 is to be connected
to this connector. The interface uses RS-232 115,2kbaud 8N1.
Connector
Description
Communication Parameters
J21.1
0V reference
115,2kbaud 8 data bit, none
parity, 1 stop bit
J21.2
RX
J21.3
TX
14.16 AL_Com+ Connector J5
Cable part number: XGE-1/10-50
Connector
Description
J5.1
AL_Com+ CTS
J5.2
0VIN
J5.3
AL_Com+ RXD
J5.4
0VIN
J5.5
Not Connected
J5.6
0VIN
J5.7
AL_Com+ TXD
J5.8
0VIN
J5.9
AL_Com+ RTS
J5.10
0VIN
J5
J21
Connected to Communication
Module BSL-310.
BSA-400
BSA-400
AL_Com+ debug
