Autronica Autro Safe - AutroFieldBus Connections; Ribbon Cable Connector BSA-400 to Terminal Block L1

Appendix A - Controller Board BSA_400
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 67
The ring loop topology ensures that no detectors/field units will be lost
due to a single break or short circuit of the AutroFieldBus cable.
The AutroFieldBus cable is normally 2-wire twisted pair category 5
copper cables, however, fibre optic cable is possible by use of
separate signal converters. The AutroFieldBus uses the same
guidelines as AUTROLON (AutroSafe version 3.8 and earlier), in
terms of cable lengths, fibre modem and boosters.

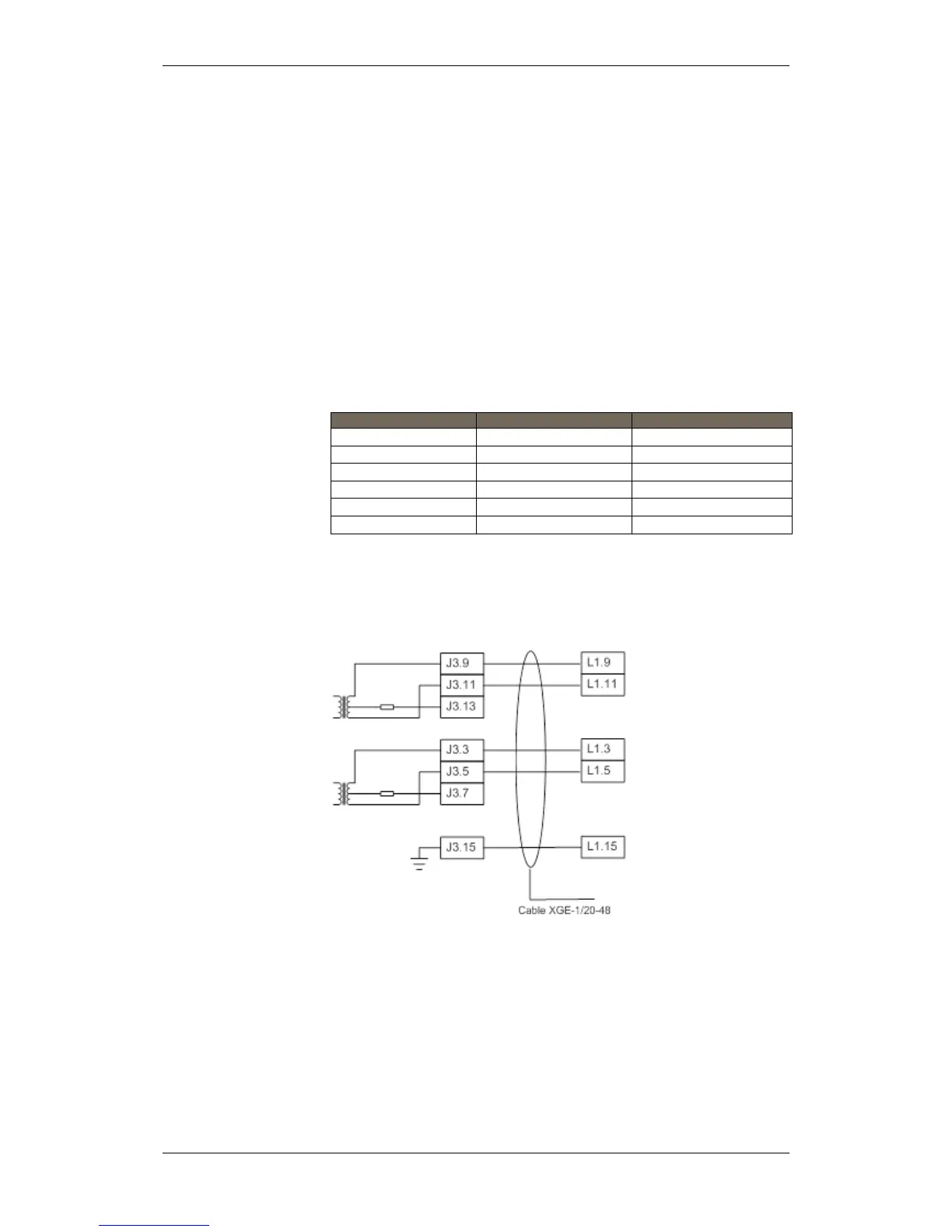

14.9 AutroFieldBus Connections
14.9.1 Ribbon Cable Connector BSA-400 to Terminal Block L1
Shielded cable required.
Terminal on BSA-400
Function
Terminal Block List L1
J3.9
AutroFieldBus A
L1.9
J3.11
AutroFieldBus A’
L1.11
J3.13
AutroFieldBus CT A
L1.13
J3.3
AutroFieldBus B
L1.3
J3.5
AutroFieldBus B’
L1.5
J3.7
AutroFieldBus CT B
L1,7
BSA-400
Ribbon cable connector
Terminal block L1
