Appendix A - Controller Board BSA_400
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 69

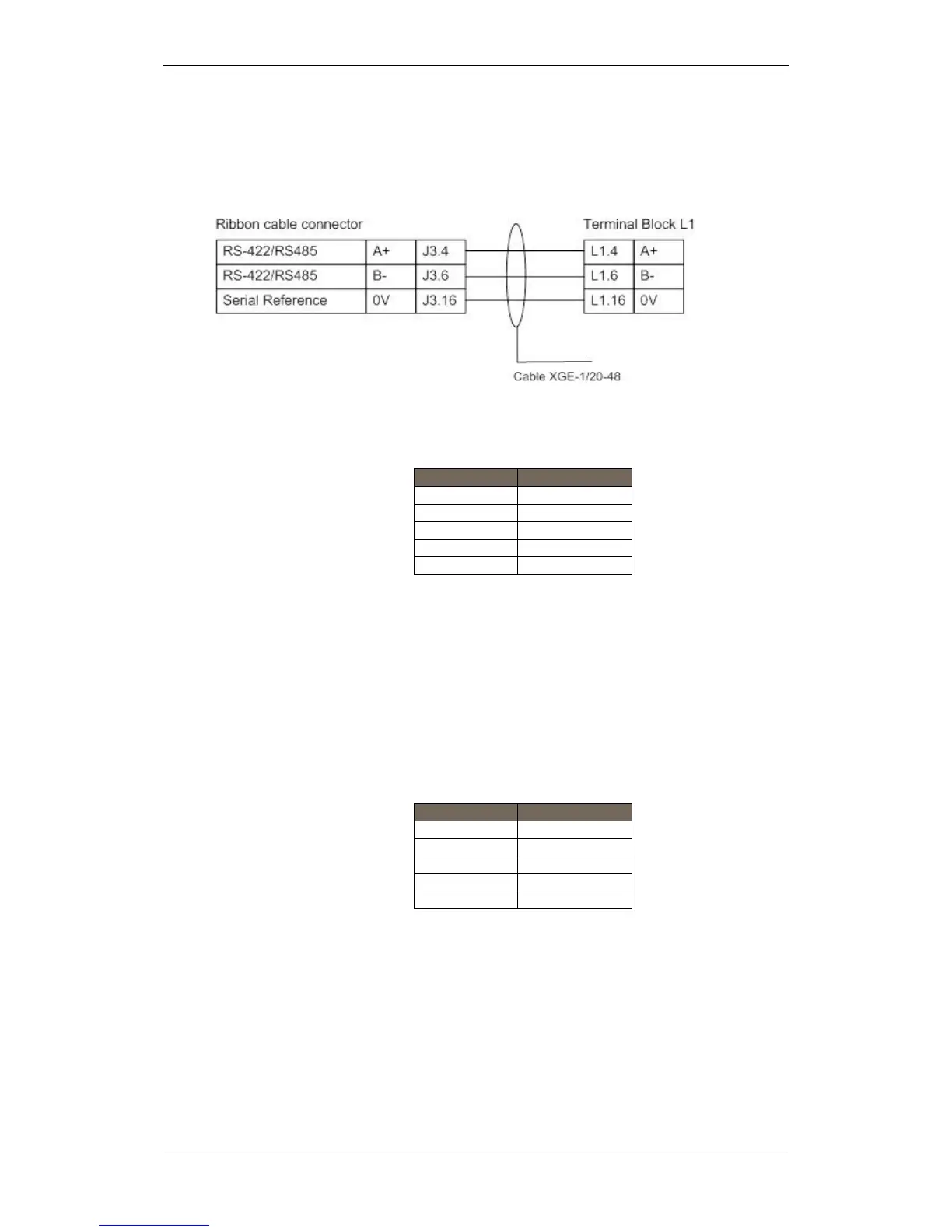

14.12 RS-485 Connections
14.12.1 Ribbon Cable Connector BSA-400 to Terminal Block L1
14.12.2 Switch Setting Switch S6 and S7
Switch
RS-485
S6.1
ON
S6.2
ON
S6.3
ON
S7.1
ON
S7.2
OFF
14.13 RS-422 Connections
14.13.1 Ribbon Cable Connector BSA-400 to Terminal Block L1
14.13.2 Switch Setting Switch S6 and S7
Switch
RS-422
S6.1
OFF
S6.2
OFF
S6.3
OFF
S7.1
ON
S7.2
ON
