Mounting Instructions
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 20

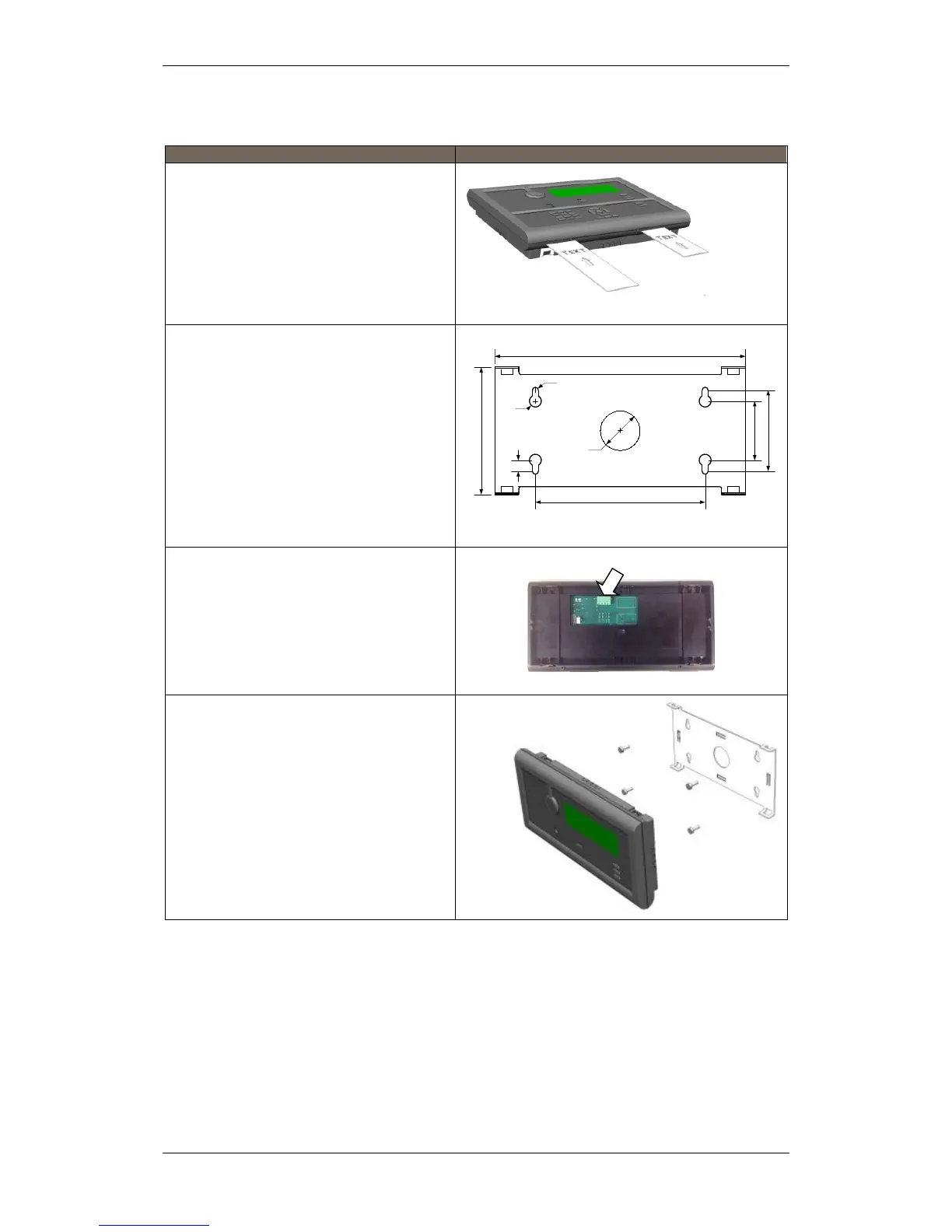

5.5 Mounting Loop Panels (BV-110 and BU-110)
Find the text foils in the relevant
language for the panel, and insert the
text foils in the correct locations (there
are two different foils in one foil kit
Through the small hole near the slot,
use a small screwdriver or similar to
slightly bend the edge (approx. 1mm) of
each foil until the edge slips behind the
opening of the slot.
Mount the wall bracket onto the wall.
Make sure to mount the panel onto a wall
with a flat surface in order to maintain IP
rating (IP32).
Connect AL_Com loop cables to the
correct terminal points on connector J3:
J3-1: In+
J3-2: In-
J3-3: Out+
J3-4: Out-
Place and centre the lower part of the
panel onto the lower part of the bracket,
then simply push the upper part of the
panel towards the bracket until it snaps
on.
