Autronica Autro Safe User Manual

Mounting Instructions
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 19
Instructions
Remarks
Illustrations


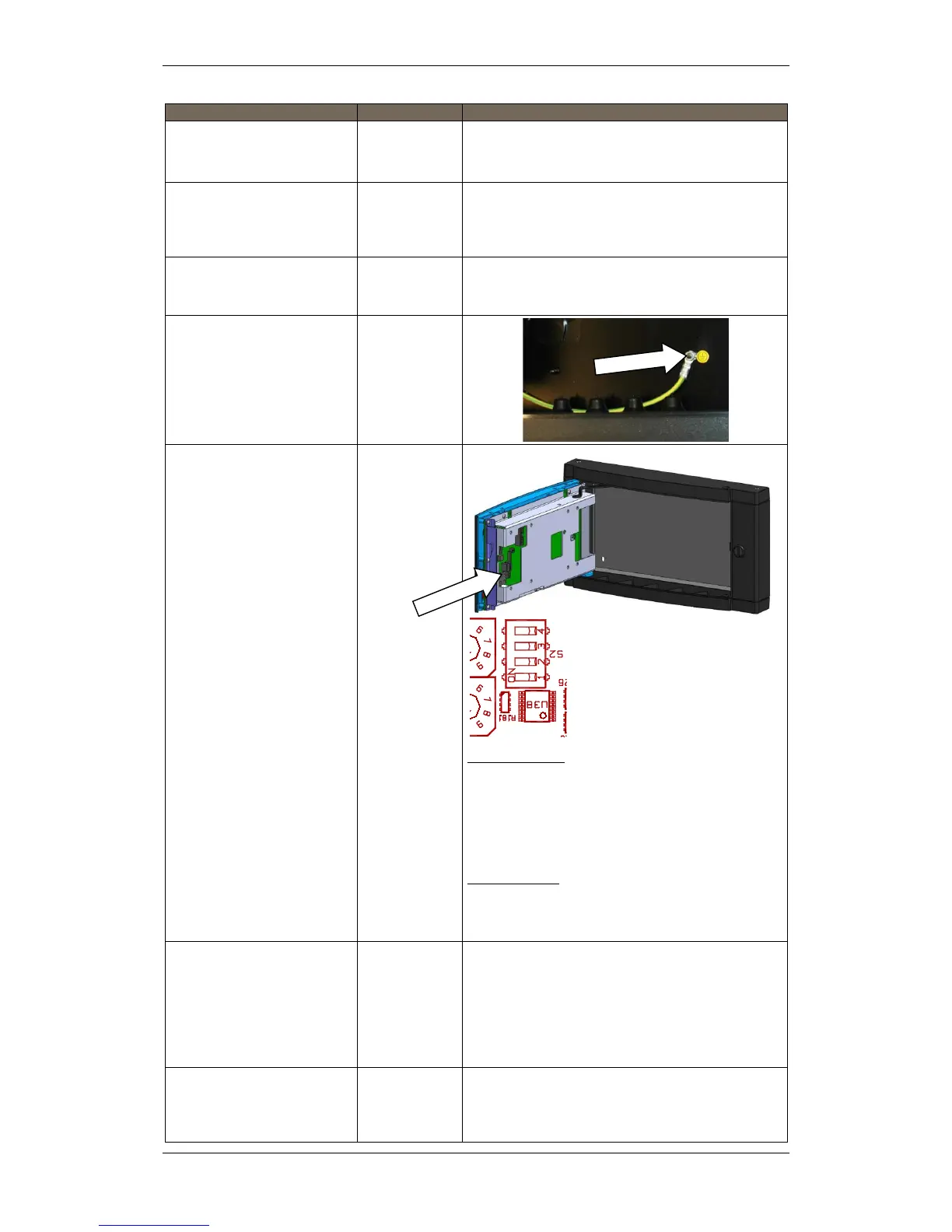

Partly fasten the bottom
screw.
 Tighten all screws.

Feed all the external
cables into the cabinet
from the top through the
suitable cable inlets.
For detailed
information on
cable
connections, see
chapter
9.

Reassemble the front
panel and tighten the 4
wing nuts.

Reconnect the earth
cable to the termination
point inside the cabinet
(PE=Protective Earth).

Set the appropriate
dipswitch settings on
dipswitch S2 (Controller
Board BSA-400)
according to the type of
panel (either a Fire
Brigade Panel or an
Information Panel).
The Repeater
Panel BU-BV-420
serves as both a
Fire Brigade
Panel and an
Information Panel.
Fire Brigade Panel
S2-1 ON
S2-2 ON
S2-3 OFF
S2-4 OFF
Information Panel
S2-1 ON
S2-2 OFF
S2-3 ON
S2-4 OFF

If the panel is to be used
as an Information Panel,
snap the plastic cap on
top of the keyhole.
The Information
Panel is an
indication device
only.
The plastic
covering is
delivered together
with the panel.

Insert the text foils (in
the appropriate
language) into the their
respective positions.
For detailed
description of the
various text foils,
see chapter
5.8.
S2
