Mounting Instructions
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 27
5.10 Cut Out Dimensions for Flush Mounting in a Wall
The Repeater Panel BU-BV-420 and Operator Panel BS-430 can be
flush mounted in a wall.
5.10.1 Repeater Panel BU-BV-420

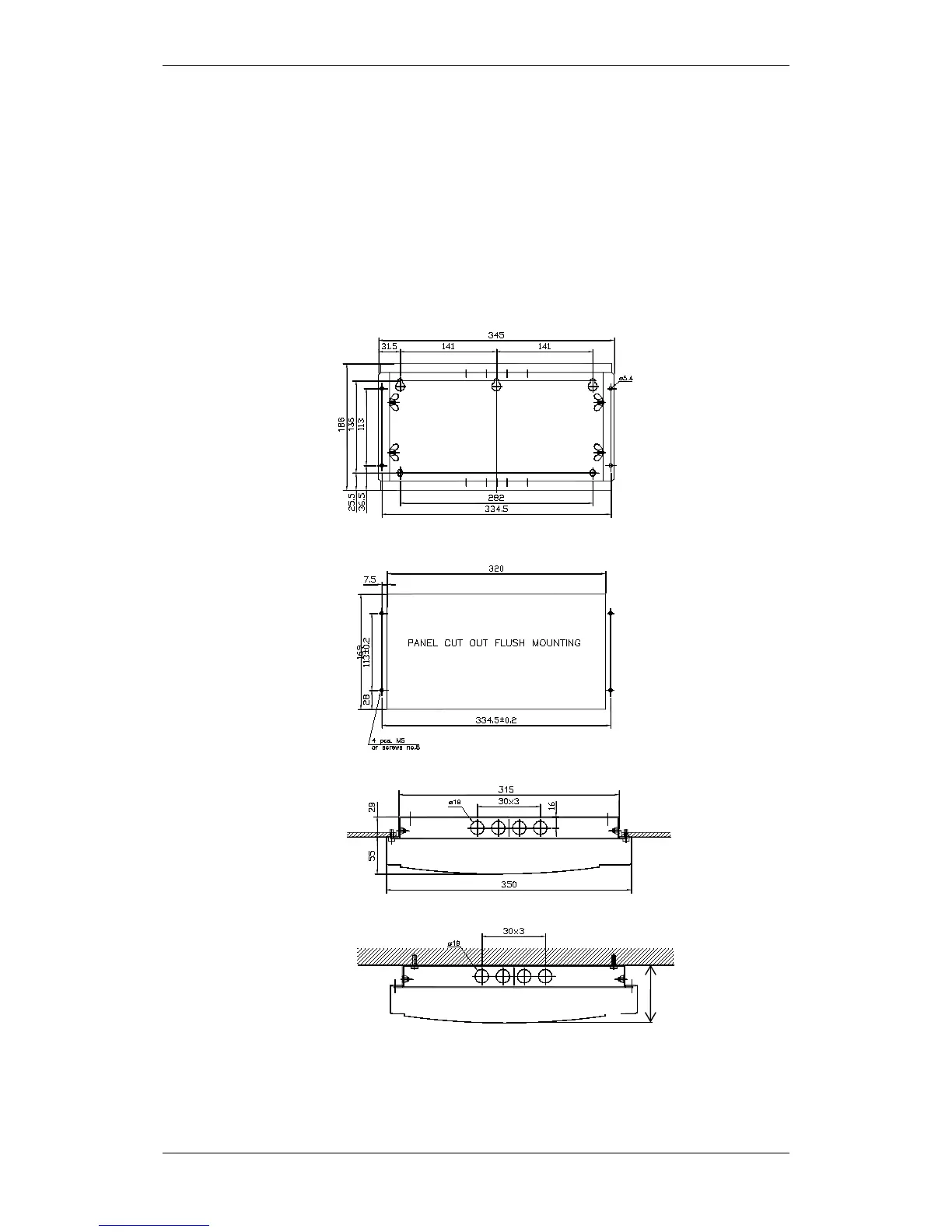

The illustration below shows the cabinet’s cut out dimensions. The
dimensions given include space for the cover frame.
85
