Connecting External Cables
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 43

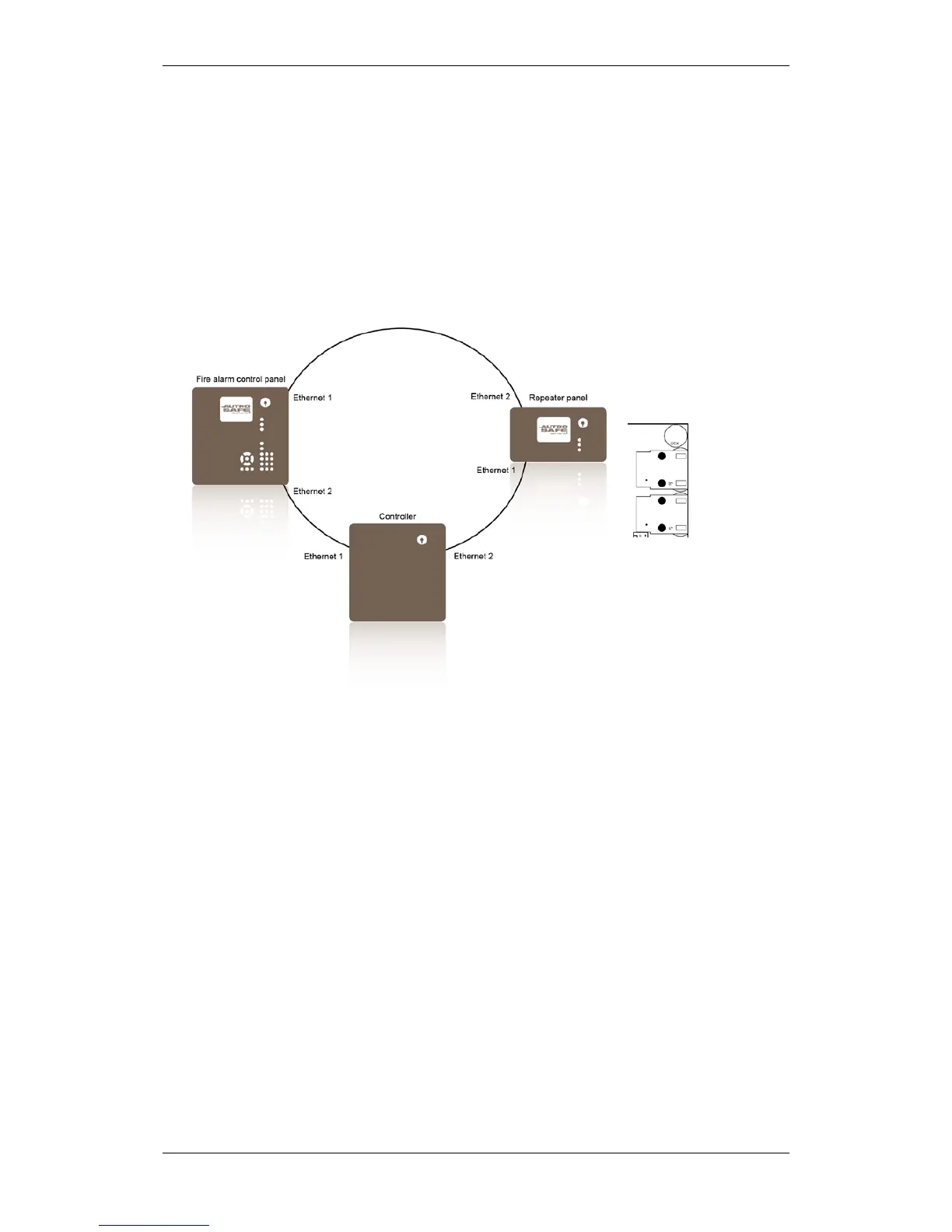

9.5.3 AutroNet Ring Topology
In an AutroNet Ring Topology all panels are connected to each other
forming a closed loop. The first panel is connected to the second, the
second is connected to the third, and so on (preferably from Ethernet
1 to Ethernet 2, from Ethernet 1 to Ethernet 2, from Ethernet 1 to
Ethernet 2 and so on).
A ring topology is a redundant network, as all panels will continue to
operate even with a single break or short-circuit on the ring.
