Connecting External Cables
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 46

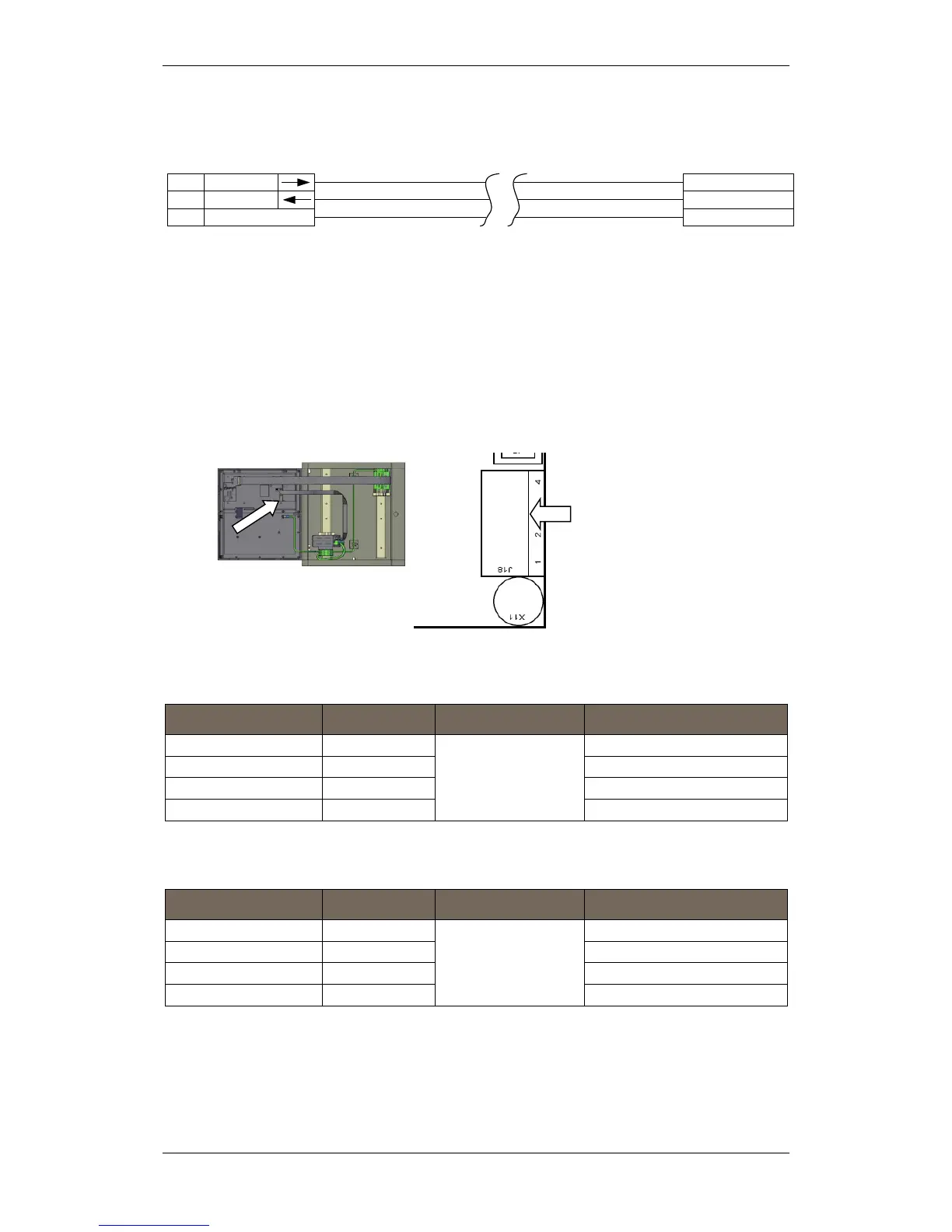

9.8 RS-232 Connections to Terminal Block, List L1
L1.12
L1.14
L1.16
RS-232 TX
RS-232 RX
Serial Reference
Terminal block list L1
RS-232
RS-232 TX
RS-232 RX
Serial Reference
9.9 24V Power Connections
9.9.1 Connections to Controller Board BSA-400
24V power is supplied to connector J18 on the Controller Board
BSA-400 on all panels.
Redundant cabling:
Connector J18 on
Controller Board BSA-400
Description
Connections to Power Board BSF-
400
J18.1
+24V In 1
Interconnection
A1 +
J18.2
0V In 1
A1 0V
J18.3
+24V In 2
A2 +
J18.4
0V In 2
A2 0V
Single cabling:
Connector J18 on
Controller Board BSA-400
Description
Connections to Power Board BSF-
400
J18.1
+24V In 1
Interconnection
A1 +
J18.2
0V In 1
A1 0V
J18.3
+24V In 2
A1 +
J18.4
0V In 2
A1 0V
From Power Board BSF-400
J18
