Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 21
5.6 Mounting Power Cabinet BP-405
AutroSafe Release 4 provides a Power Cabinet BP-405 with space for
two 12V/18Ah batteries (not included). The power supply and battery
brackets are already mounted when the cabinet is delivered from the
factory.
The mounting procedure deals with the mounting of the cabinet and
the internal batteries.
Note that the Power Cabinet can be placed under and fastened
directly to a Fire Alarm Control Panel BS-420 or a Controller BC-420.
The position of the 11 cable inlets/outlets at the bottom of the
BS-420/BC-420 match exactly with the ones on the top of the Power
Cabinet BP-405.
Instructions
Remarks

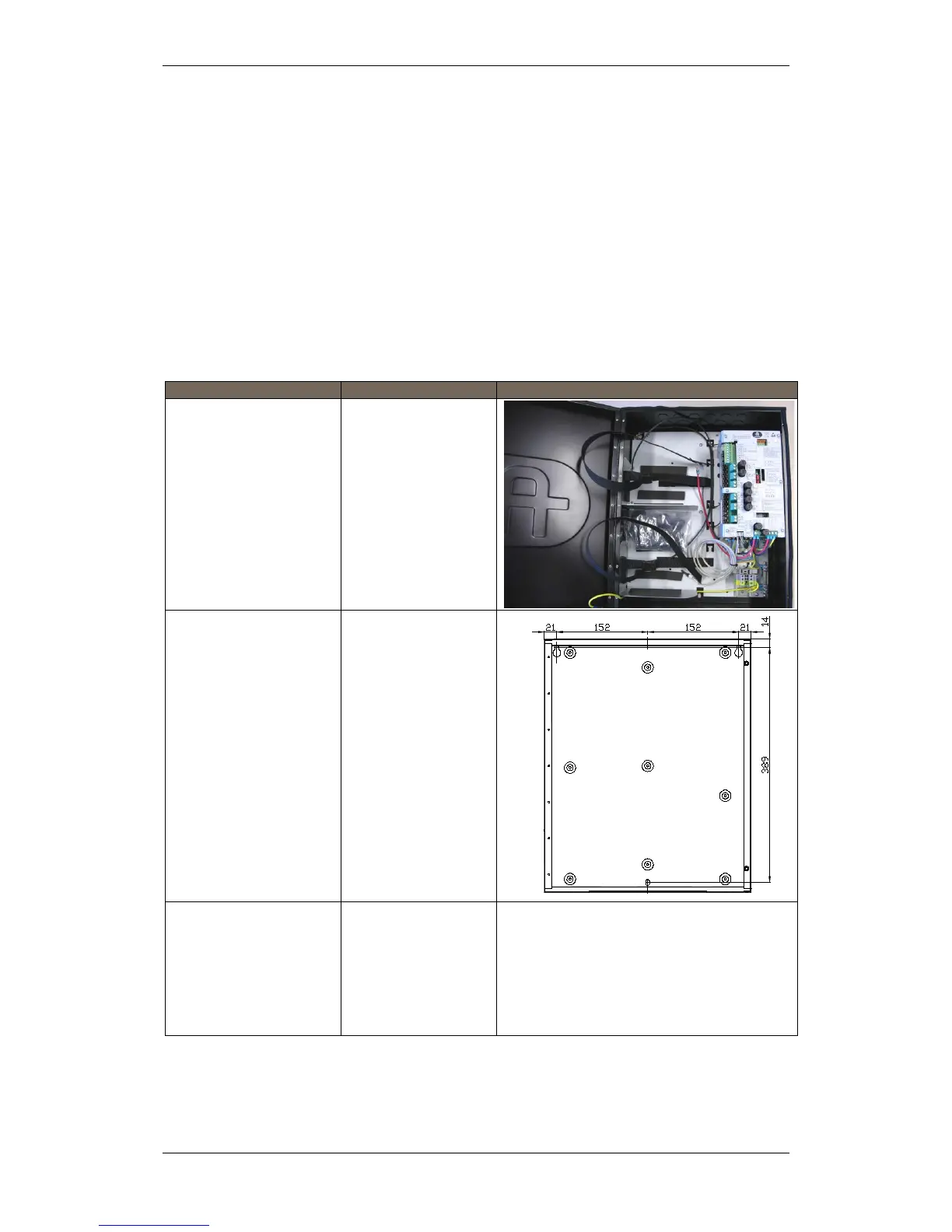

Illustrations

Unlock the front door
by unscrewing the
door lock screws
 Open the front door.

Mark and drill holes.
The cabinet has 3 mounting
holes located at the rear.
The 2 upper holes are of
key-hole-type.

Partly fasten the
upper screws.
 Hang the cabinet onto
the upper screws.
 Partly fasten the
bottom screw.
 Tighten all screws.
