Autronica Autro Safe User Manual

Mounting Instructions
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 22
Instructions
Remarks
Illustrations


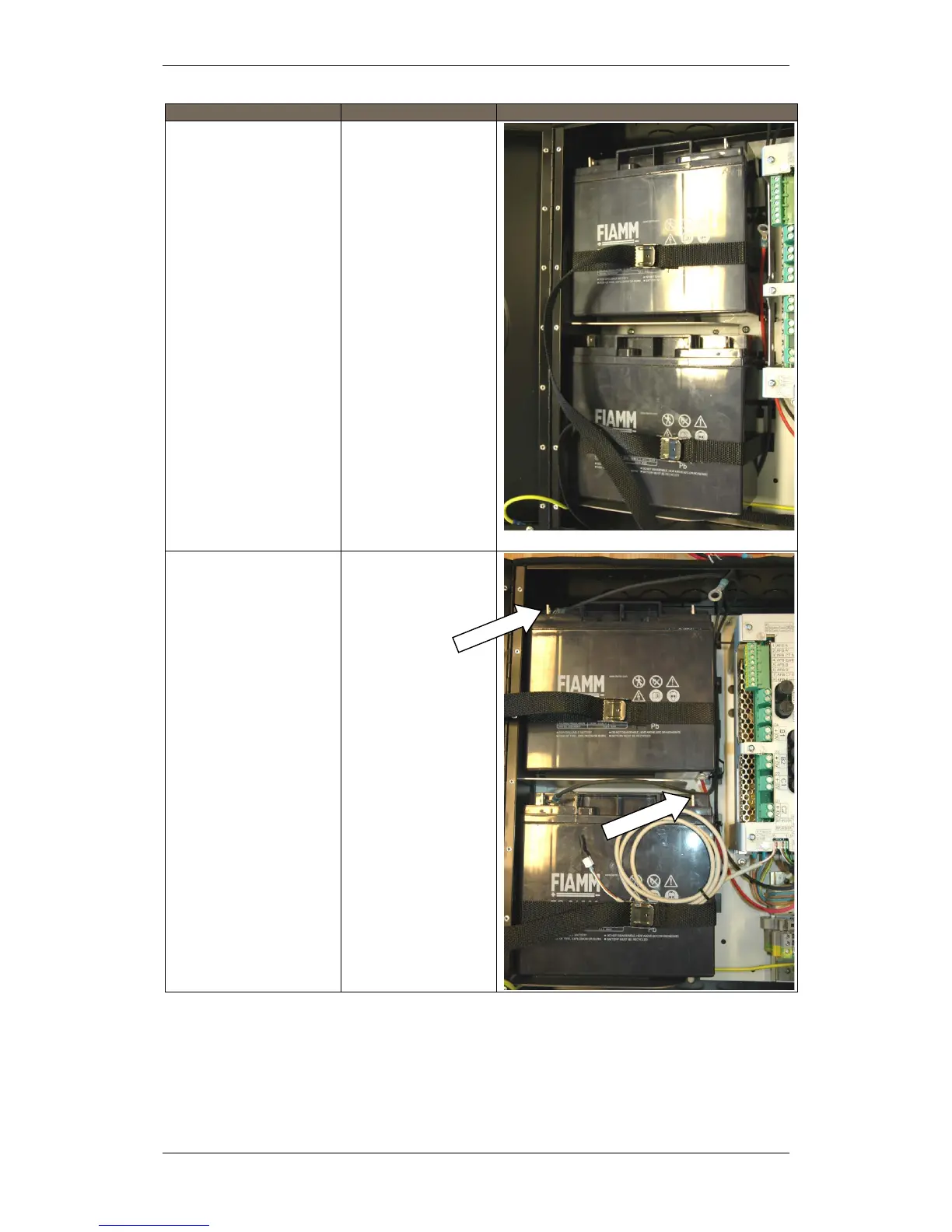

Insert both batteries in
their appropriate
locations with the
battery poles facing
up and towards the
outside of the cabinet.
 Tighten the strap
around each battery.

Connect the black
cable from the
connector on the
Power Board to the
minus pole on the
uppermost battery.
 Connect the red cable
from the connector on
the Power Board to
the plus pole on the
lowermost battery.
Make sure that the correct
black cable is connected to
the minus pole, i.e. the one
that is connected to the
Power Board on the other
end.
+
-
