Connecting External Cables
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 39
9.4 AutroFieldBus Connections
9.4.1 Connections to BS-420/BC-420 - Terminal Block (List 1)
Shielded cable required.
Terminal
Function
L1.9
AutroFieldBus A
L1.11
AutroFieldBus A’
L1.13
AutroFieldBus CT A
L1.3
AutroFieldBus B
L1.5
AutroFieldBus B’
L1.7
AutroFieldBus CT B
L1.15
Earth
L1.3
L1.5
L1.7
L1.15
L1.9
L1.11
L1.13
Last AFB unit
First AFB unit

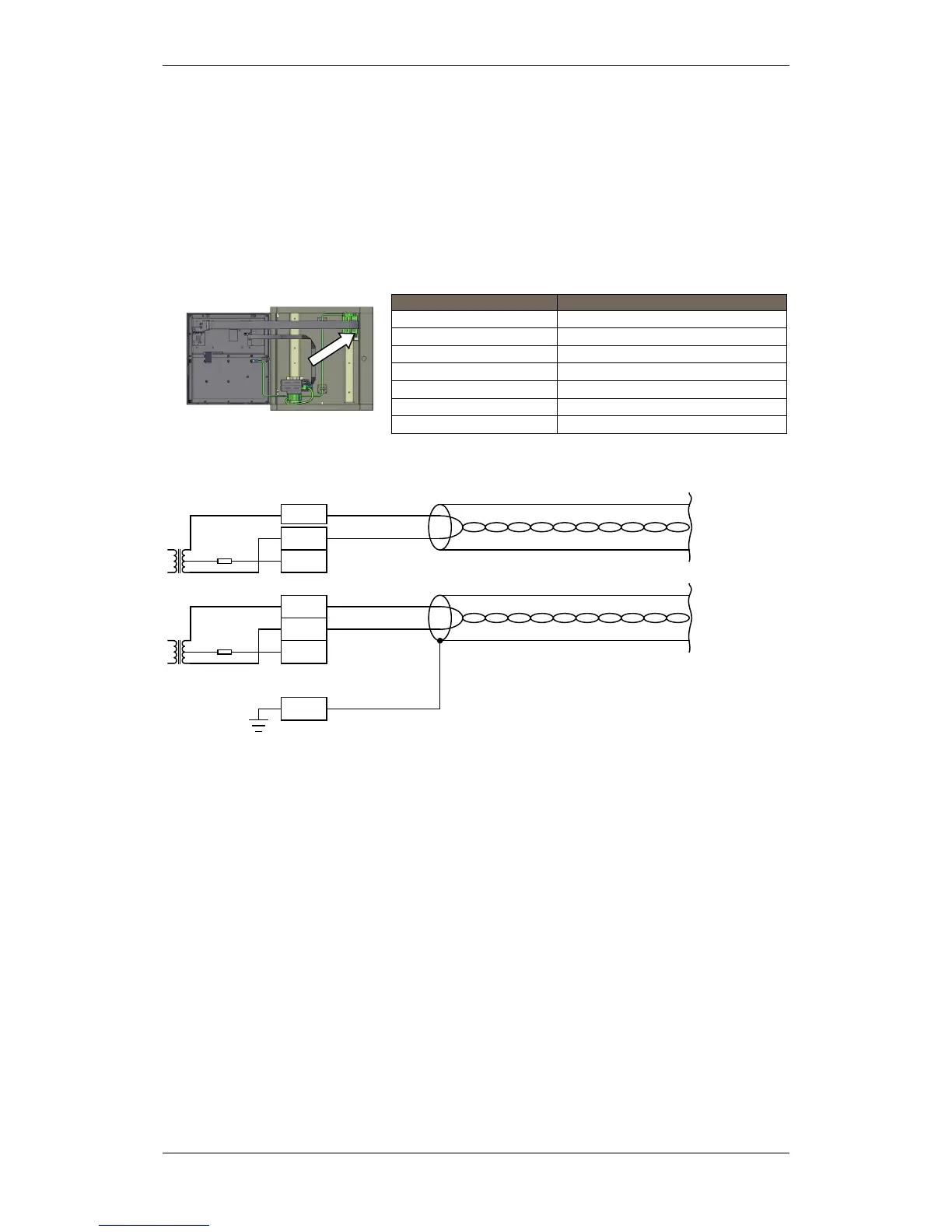

Terminal block L1 with shielded AutroFieldBus cable
AFB
AFB A
