Connecting External Cables
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 44

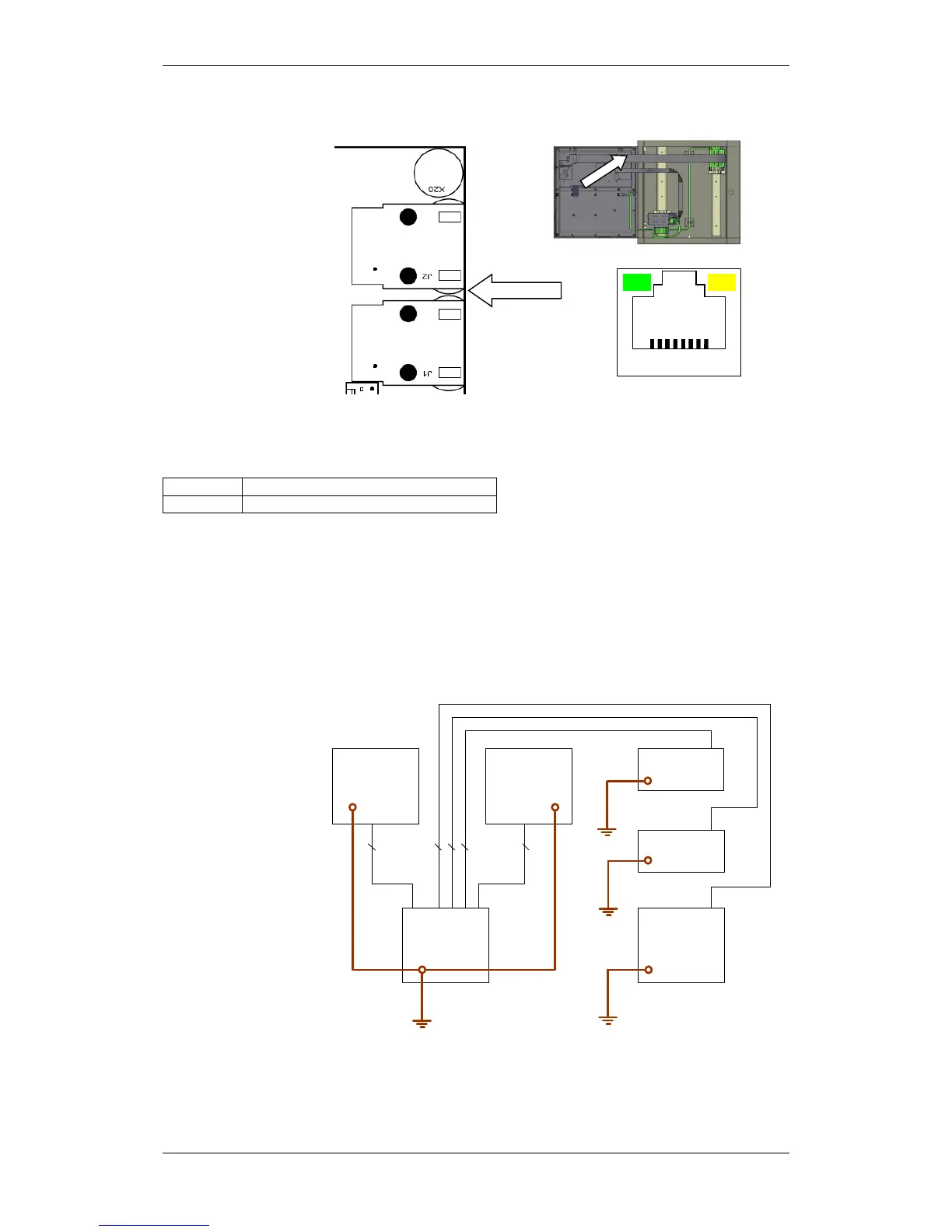

9.5.4 Connection to Controller Board BSA-400
The BSA-400 board on all panels provides two separate 10/100Mbit
Ethernet ports. The connector is an RJ-45 modular jack, suitable for
shielded cable CAT5 which allows cable lengths up to 100m.
If ON, 100MBit/s, if OFF, 10MBit/s
9.5.5 Common Earth Connections
All panels must be connected to a common earth for EMC
compliance.
2 x 2
24V
Fire Alarm
Control Panel
BS-420
Controller
BC-420 / BC-440
Power Cabinet
BP-405
BU-BV-420
BU-BV-420
Operator
Panel
BS-430
2 x 2
24V
Shielded or armoured cable must be used for the 24V DC power
supply.
To Next Page
