Autronica Autro Safe User Manual

Appendix B - Power Supply
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 76

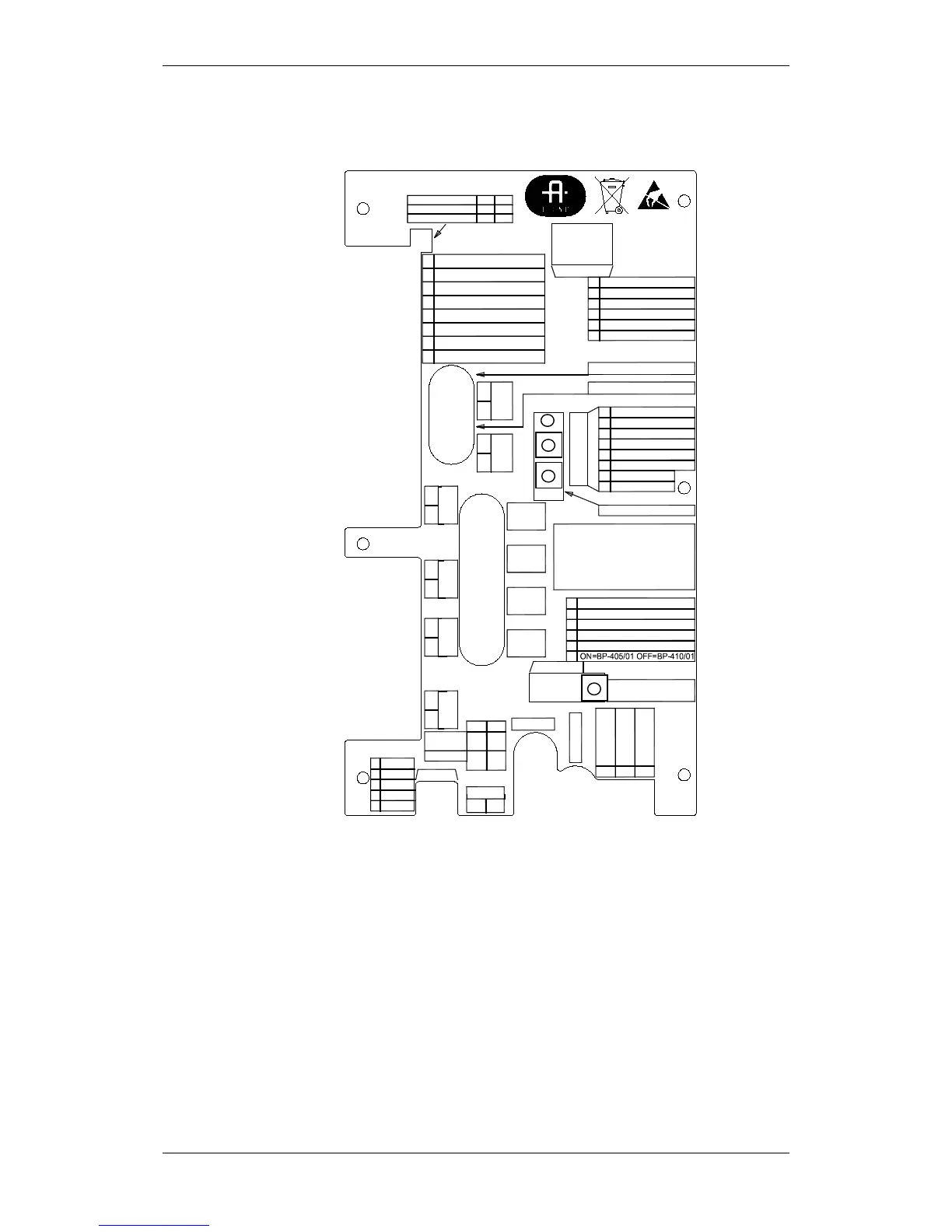

15.2 Circuit Board Layout BSF-400
1
2
3
AFB A
AFB A"
AFB CT A
4
5
6
AFB Earth Fault Sense
AFB B
AFB B"
7
8
AFB CT B
AFB Earth Fault Sense
J2
J26
1 6
1
2
3
Alarm NO
Alarm Com
RC (Remote test)
4
5
6
Fault Relay NO
Fault Relay NC
Fault Relay Com
F1 A1 F2AL
F2 A2 F2AL
J19
S1 Reset
High Low
8
7
6
Internal Fault
General Fault
Battery Fault
5
4
3
Fuse Fault
2
1
Mains Fault
Power ON
J24
J23
J22
0V
C2
J21
F2AL
F3 B1
F2AL
F4 B2
F2AL
F5 C1
F2AL
F6 C2
AFB Adress (H & L)
1
2
3
Earth Fault Sense ON/OFF
Battery relay (see manual)
AFB present
4
5
6
Battery present
61
S6
ON
OFF
source (see manual)
S2, Start on standby
15
5
4
3
2
1
Therm.+
Therm.-
PSF
-V
Vcon
+
-
BATT
J20
J17
F7 Battery
F8 Charger
1 2 3
Charger +24V Charger 0V Earth
J25
E-2868
J18
+
0V
+
C1
0V
+
B2
0V
+
B1
0V
+
A2
0V
+
A1
X11 X10
AFB Com
BP-410/01
BP-405/01
T10
T5
T10
T5
F7 F8
AH AH
AH AH
S5
AFB Earth Fault Off
AFB Earth Fault On
1
OFF
ON
2
OFF
ON
