Mounting Instructions
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 28
5.10.2 Operator Panel BS-430

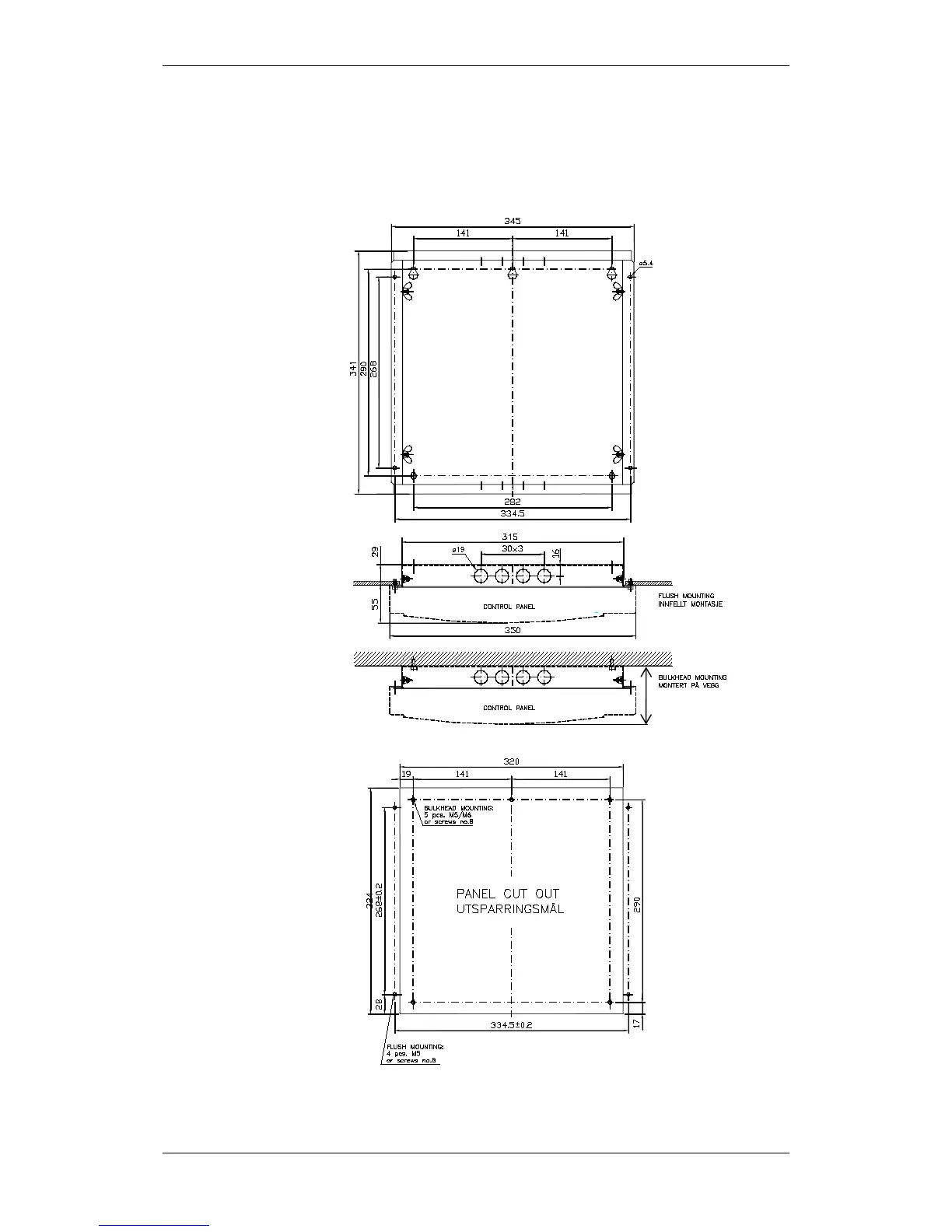

The illustration below shows the cabinet’s cut out dimensions. The
dimensions given include space for the cover frame.
