5.8 Inserting Text Foils
Find the text foils in the
relevant language for the
panel in question (foil sheets
are delivered with the panel).
The part numbers are
indicated below.

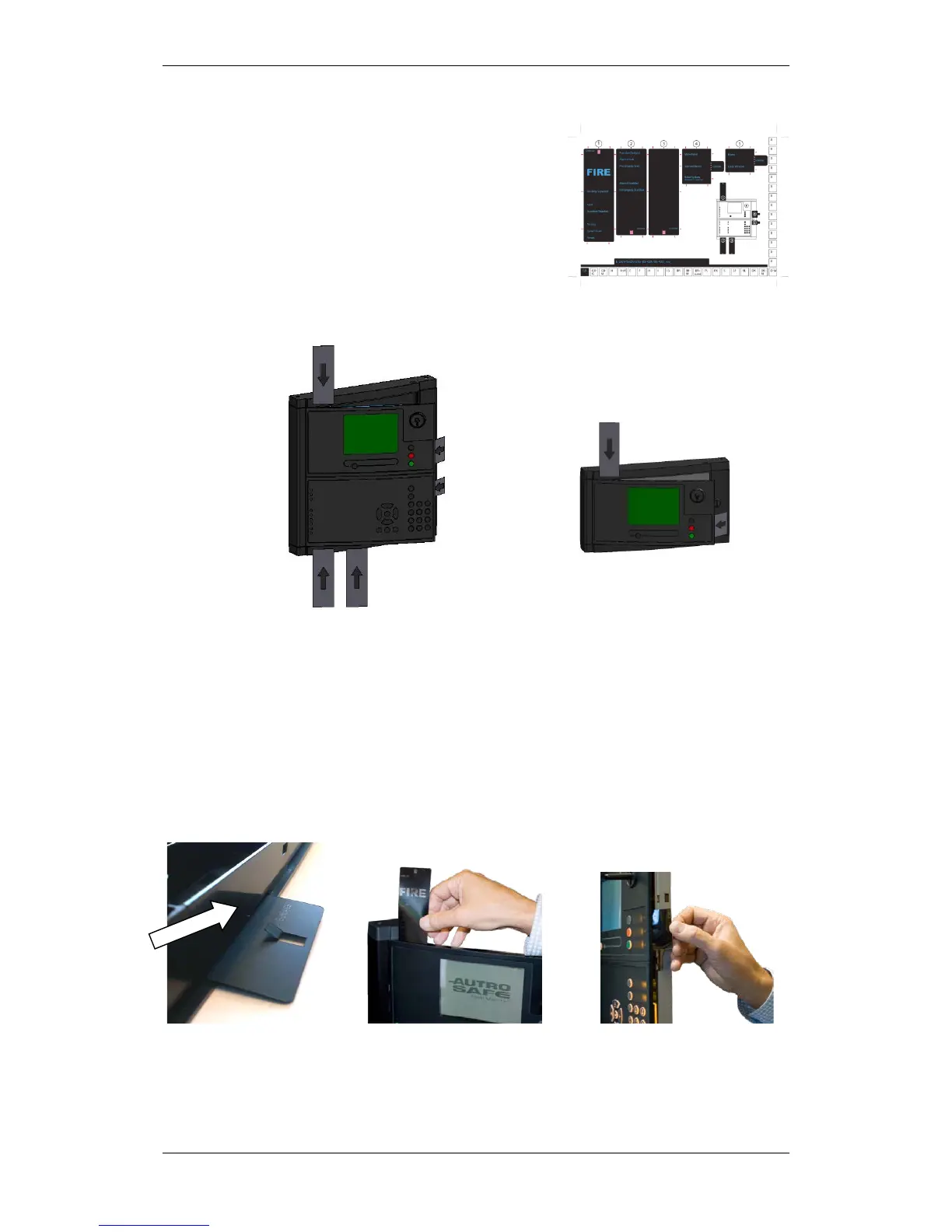

Make sure that you are holding the textfoil the correct way.
Bend the small flap towards the panel (as shown on the left most
illustation below), then insert the foil into the appropriate slot, and
slightly push it in as far as possible.
The foils that are to be inserted into the slot on the righ hand side
of the panel front have a small flap which can easily be bent (along
the perforation holes).
Fire Alarm Control Panel BS-420 is shown in the example below.
