Mounting Instructions
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 18
Instructions
Remarks
Illustrations

Reassemble the front
panel and tighten the 4
wing nuts.

Reconnect the earth
cable to the termination
point inside the cabinet
(PE=Protective Earth).

Insert the text foils (in
the appropriate
language) into the their
respective positions.
For detailed
description of the
various text foils,
see chapter
5.8.

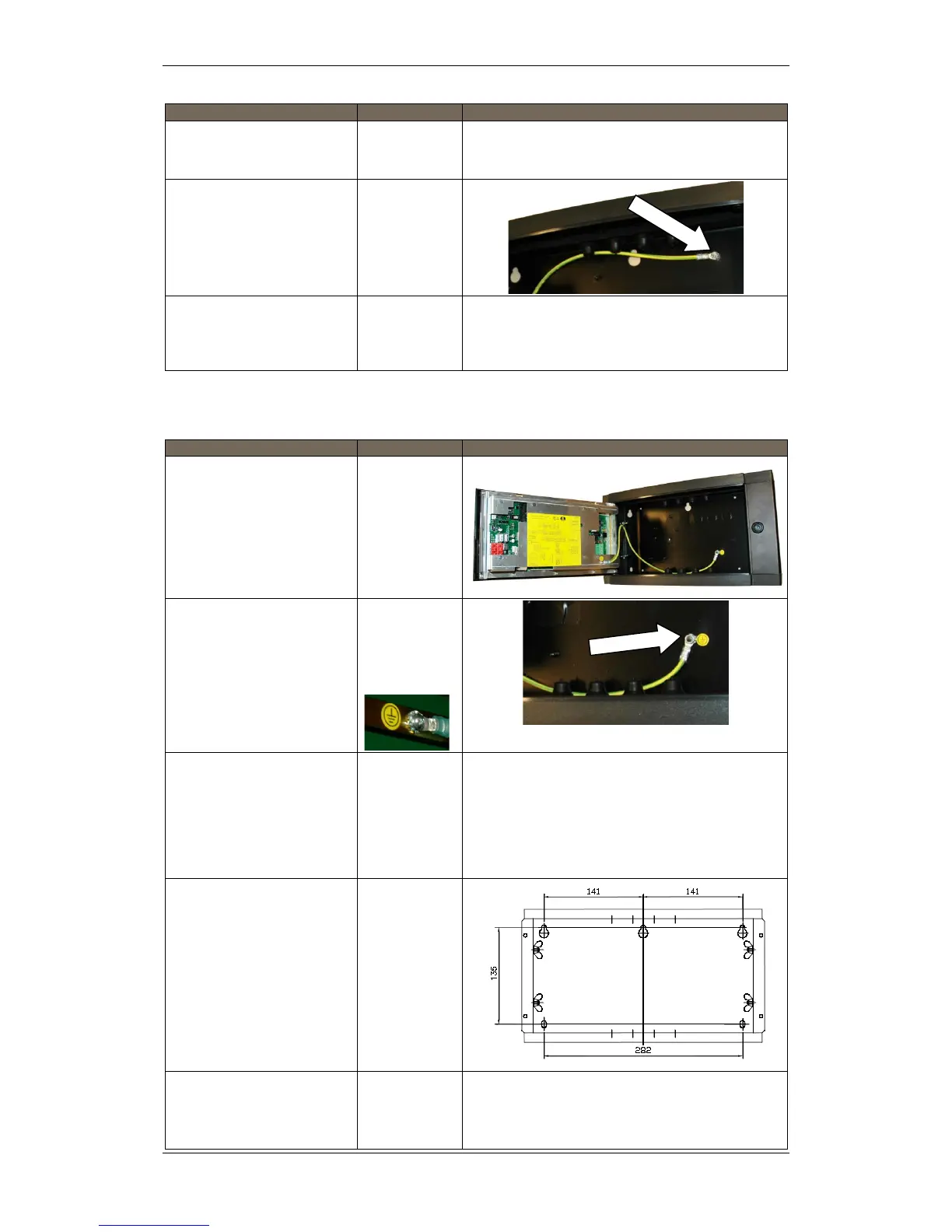

5.4 Mounting Repeater Panel BU-BV-420
Instructions
Remarks
Illustrations

Unlock the front panel
by turning the unbraco
key clockwise.
 Open the front panel.
In order to easily
access the
mounting holes
when mounting
the cabinet, the
front panel should
be removed.

Unscrew and disconnect
the earth cable from the
termination point inside
the cabinet.
Note: Do NOT
unscrew the earth
cable from the
connection point
on the front panel
(PE=Protective
Earth).

Unscrew the 4 wing nuts
located on the right and
left hand side of the
cabinet, then close the
front panel, and remove
the front panel from the
cabinet.

Mark and drill all 3
holes.
The cabinet has 5
mounting holes
located at the
rear. The upper 3
holes are of key-
hole-type.

Partly fasten the upper
screws.
 Hang the cabinet onto
the upper screws.
