Connecting External Cables
Installation Handbook, AutroSafe Interactive Fire Detection System, Release 4, 116-P-ASAFE-INSTALL/DGB Rev. I, 2014-04-01,
Autronica Fire and Security AS
Page 41
9.5 Connection of Network Cables (AutroNet)
Each panel provides two ports; Ethernet 1 and Ethernet 2. AutroNet
consists of one of the following network topologies:
AutroNet Redundant Star Topology
AutroNet Single Star Topology
AutroNet Ring Topology
9.5.1 AutroNet Redundant Star Topology

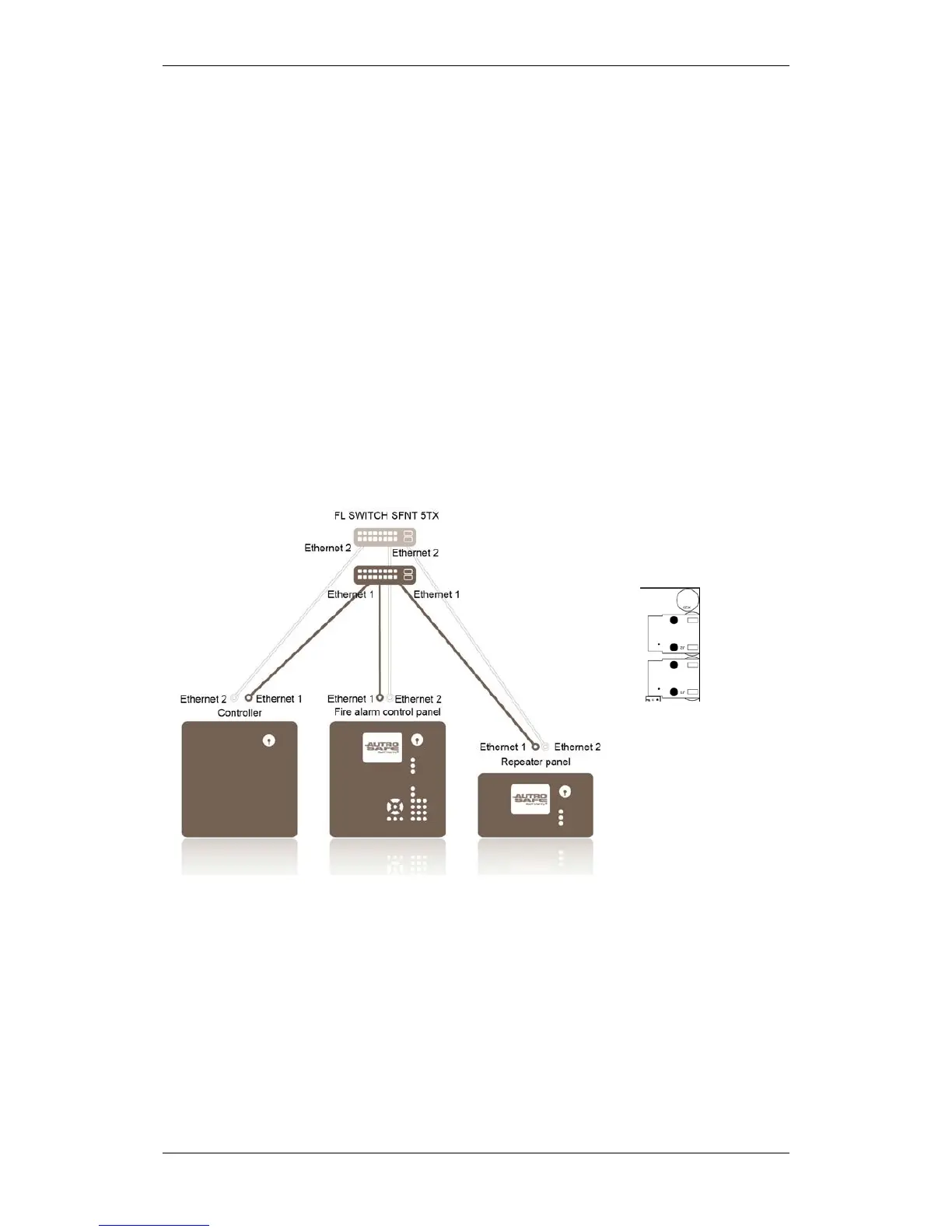

The illustration below shows an example of the fully redundant
standard AutroNet, where the following guidelines apply:
Connect the Ethernet cables for Ethernet 1 to and from the
connections labeled Ethernet 1 (panels and Ethernet switches)
throughout the entire system.
Connect the Ethernet cables for Ethernet 2 to and from the
connections labeled Ethernet 2 (panels and Ethernet switches)
throughout the entire system.
