Avaya S8100 Series Installing And Configuring

Connecting the USB modems
Issue 4.1 June 2005 25

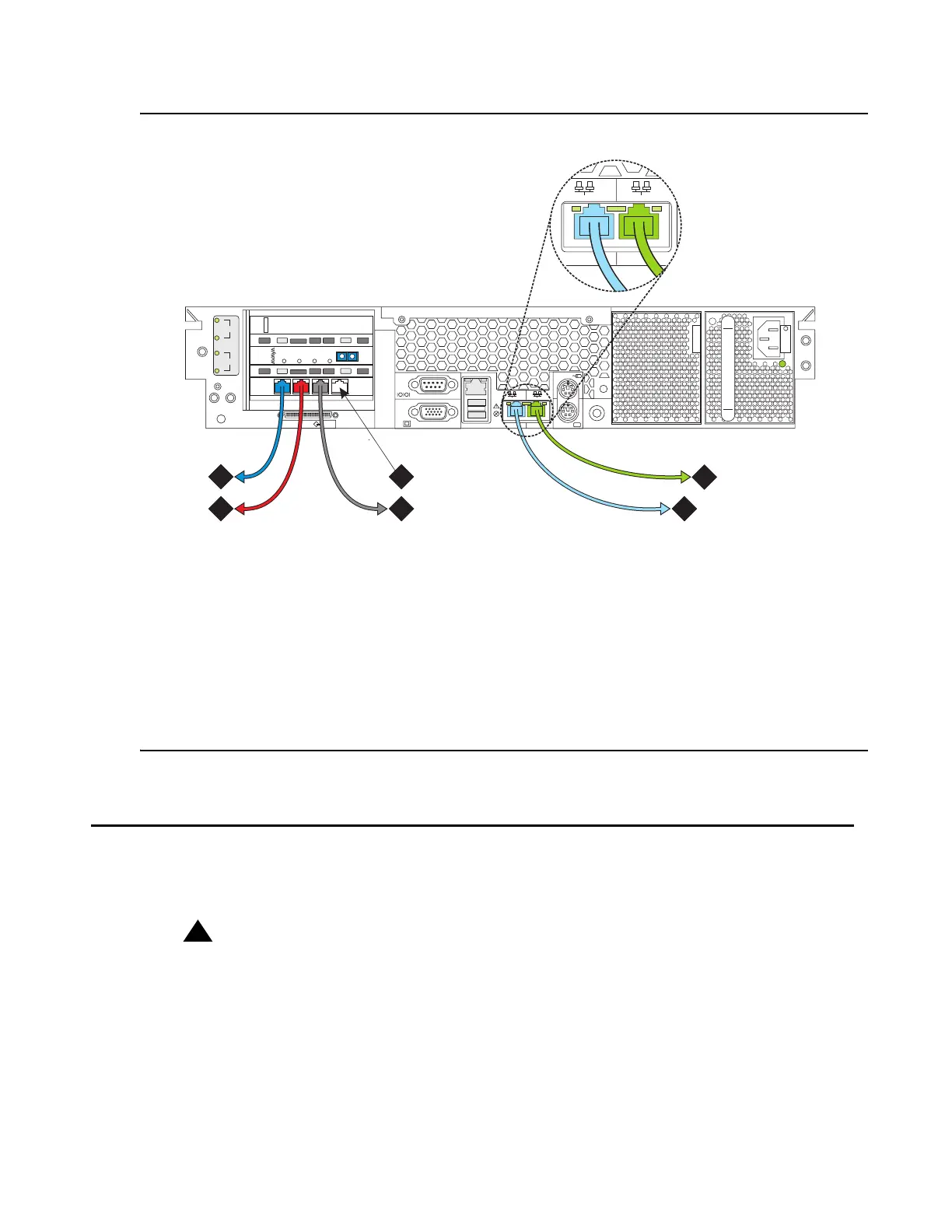

Figure 2: Avaya S8710 Media Server connectivity guide
Connecting the USB modems
If you have not connected the modems yet, do so now.
!
WARNING:
WARNING: Once you cable the modems to the media servers, do not unplug the modem
USB cable on the active server. If the modem must be replaced, replace it when
the media server is in standby mode.
Figure notes:
1. Eth0—to control network A (CNA) if
dedicated control network or to
customer’s network if nondedicated
control network. (straight-through
CAT5 cable)
2. Eth1—to services laptop
(cross-connect CAT5 cable)
3. Eth2—to duplicated media server
(cross-connect CAT5 cable)
4. Eth3—to control network B (CNB) if
duplicated control network
(straight-through CAT5 cable)
5. Eth4—to customer’s network if
dedicated control network
(straight-through CAT5 cable)
6. Eth5—unused
cadsnet2 KLC 043004
2
3
iLO
VDCI
DAL1 DUP MEMORY
RECEIVE MODE
LINC SYNC
TRANS MODE
LINC ACTIVE
1
2
3
133 MGz
100 MGz
100 MGz
UID
2 1
2
1
4
3
5
6
2 1
