Testing the media server installation
88 Installing and Configuring the Avaya S8700 Series Media Server
S8710 Media Server LEDs
The S8710 Media Server has the LEDs shown in Figure 11: LEDs on front panel of S8710
Media Server and Figure 12: LEDs on back panel of S8710 Media Server on page 89.
Currently, there is no method to test the LEDs on the S8710 Media Server.

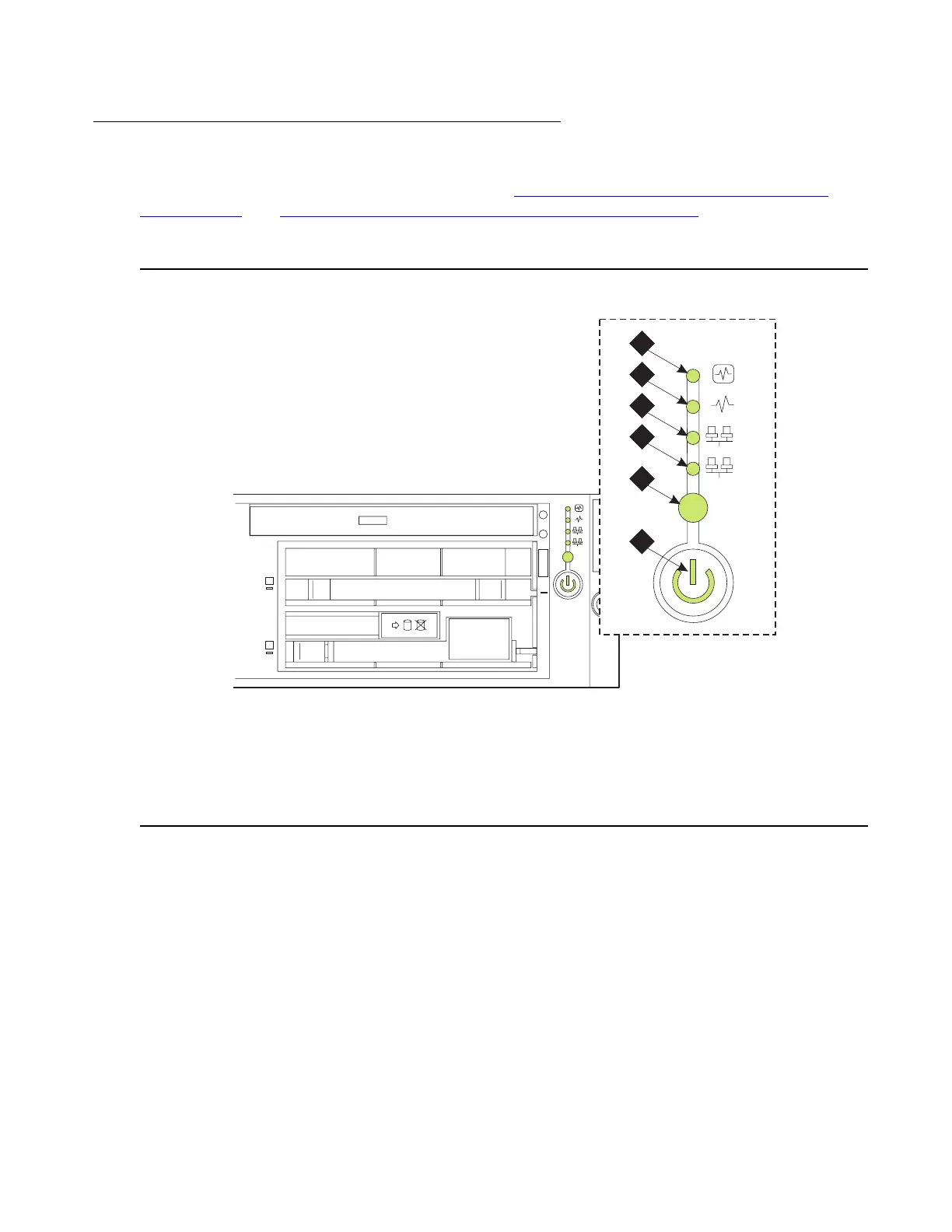

Figure 11: LEDs on front panel of S8710 Media Server
Figure notes:
1. Internal health
2. Power supply
3. NIC 1 (Eth0) link/activity (GREEN)
4. NIC 2 (Eth1) link/activity (GREEN)
5. Active/Standby mode (BLUE)
6. Power on/standby button/system power
Simplex
Duplex
ch
ch
2
0
1
1
2
1
1
0
disc
COMPACT
msdsled1 KLC 041304
2
1
1
2
3
4
5
6
