LED indicators
Issue 4.1 June 2005 91
Uninterruptible power supply LEDs
The Powerware uninterruptible power supply (UPS) front panel has the LEDs shown in

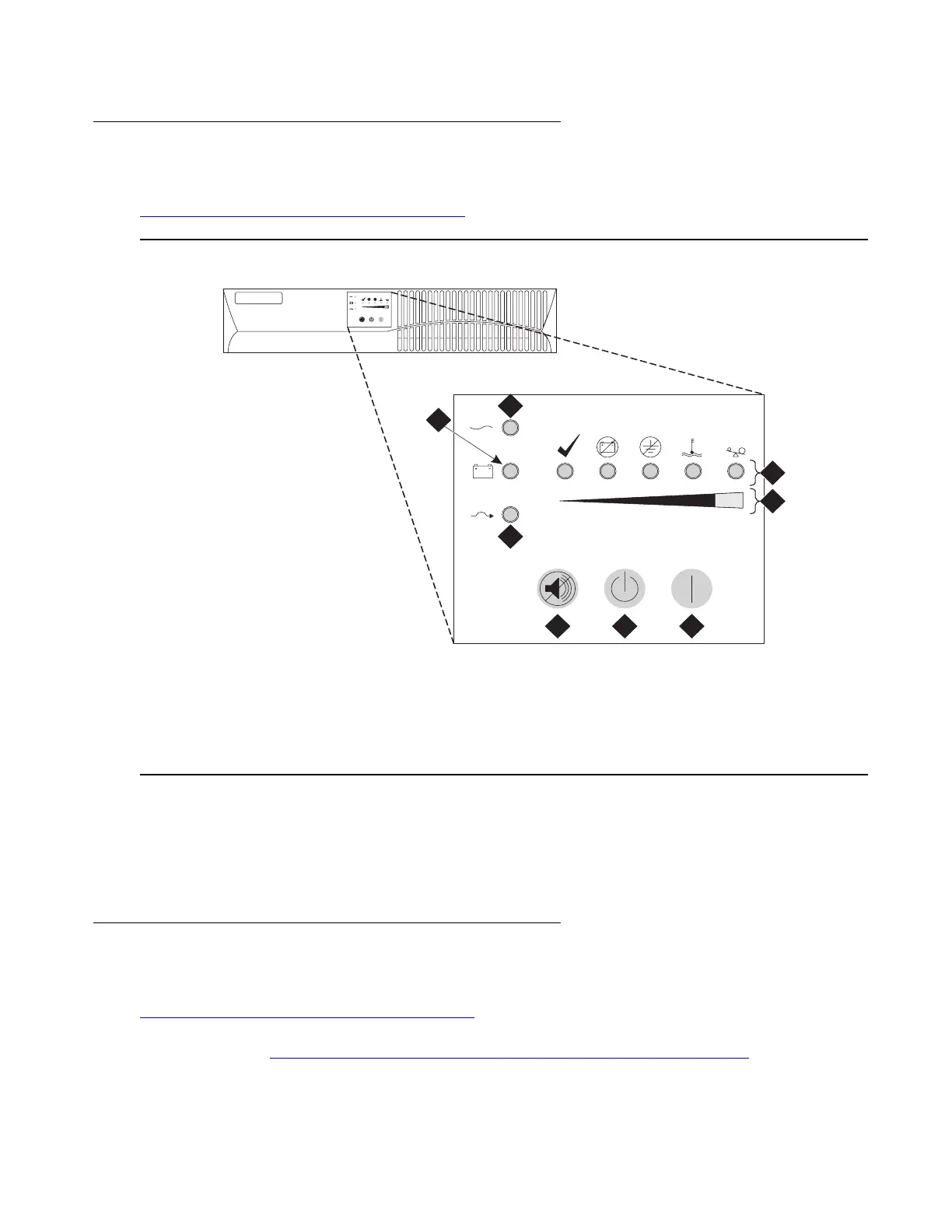

Figure 13: LEDs on Powerware 9125 UPS
.
Figure 13: LEDs on Powerware 9125 UPS
After plugging in the UPS, all the LEDs flash briefly. After a self test, the Normal mode LED
flashes, indicating that the UPS is in Standby mode.
For more information on the LEDs, see the UPS user’s guide that comes with the Powerware
UPS.
IPSI LEDs
The TN2312BP Internet Protocol Server Interface (IPSI) circuit pack LEDs are shown in
Figure 14: TN2312BP circuit pack faceplate
on page 92). It also has a programmable LED
display to indicate whether its IP address is dynamic (shows media gateway location) or static
(shows I P). See Figure 15: LED display on the IPSI circuit pack—static address
on page 93.
Figure notes:
1. Normal mode indicator
2. Battery mode indicator
3. Bypass mode indicator
4. Test/Alarm reset button
5. Off button
6. On button
7. Bar graph indicators
8. Alarm indicators
1
2
3
4 5
6
7
8
ledlups KLC 030102
