Setting the cabinet number
The number to program is the cabinet number not the port network number. If you have more
than one IPSI in a cabinet, they all have the same cabinet number.
1. While the first digit of the number is flashing, press the button until the correct tens digit (0
through 6) shows on the display. When the correct digit shows, stop. It flashes a few times
then stops (5 seconds). The second digit begins flashing.
2. While the second digit is flashing, press the button until the correct units digit (0 through 9)
shows on the display. When the correct digit shows, stop. The digit flashes a few times then
stops (5 seconds).

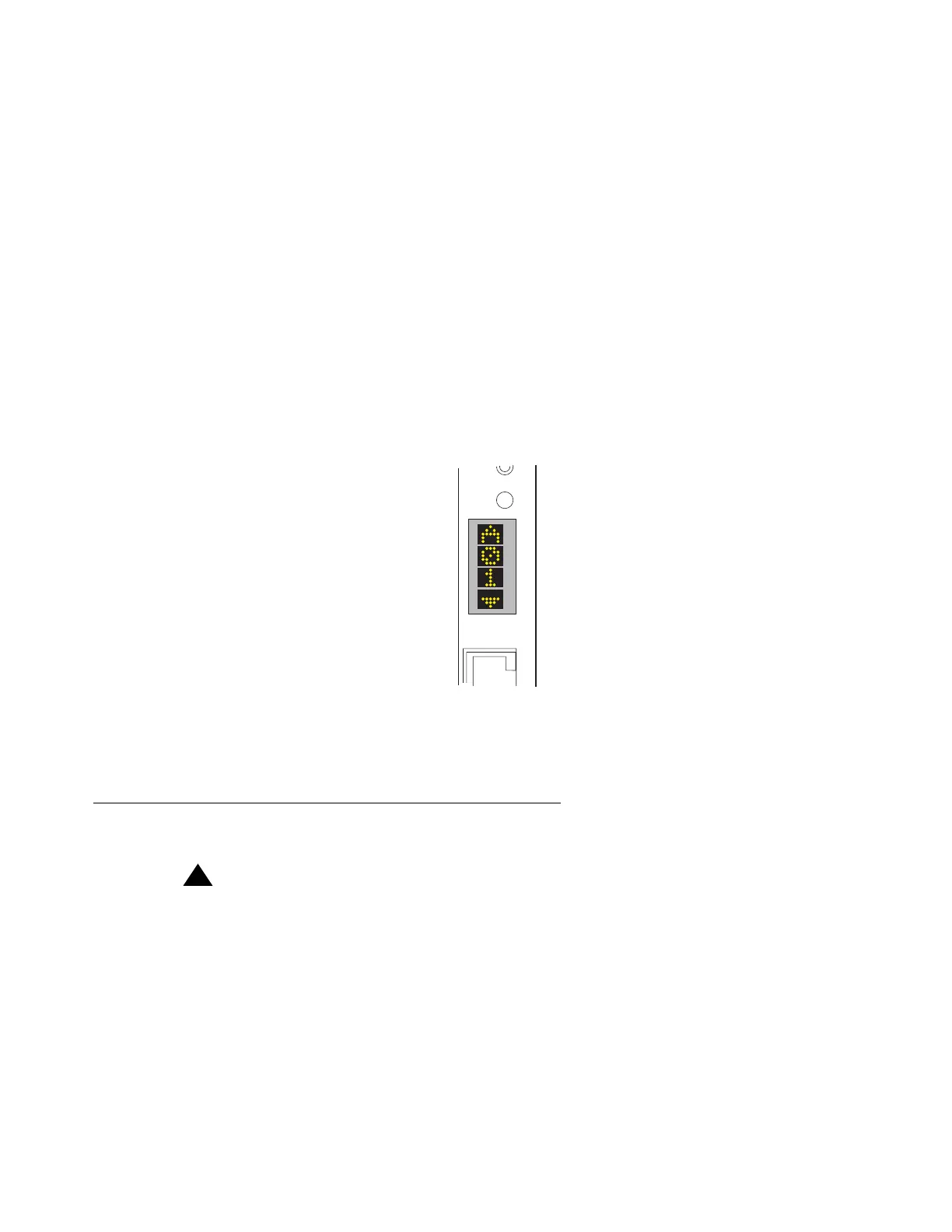

3. All segments of the display goes dark for one second, and then the Switch ID and media
gateway stack number is displayed in the top three characters of the LED display. A "V" is
shown in the fourth character (bottom) of the display. When the DHCP server assigns an
address to the IPSI, the center of the "V" is filled in to form the bottom half of a diamond in
the display.
For duplicated control network, repeat these steps for the second IPSI in the cabinet.
Using static addressing
!
Important:
Important: An IPSI in a port network (PN) that is backed up with the Enterprise Survivable
Server (ESS) option must use static addressing for the ESS to provide service to
the PN.
