Connecting to the media server directly
Issue 4.1 June 2005 97

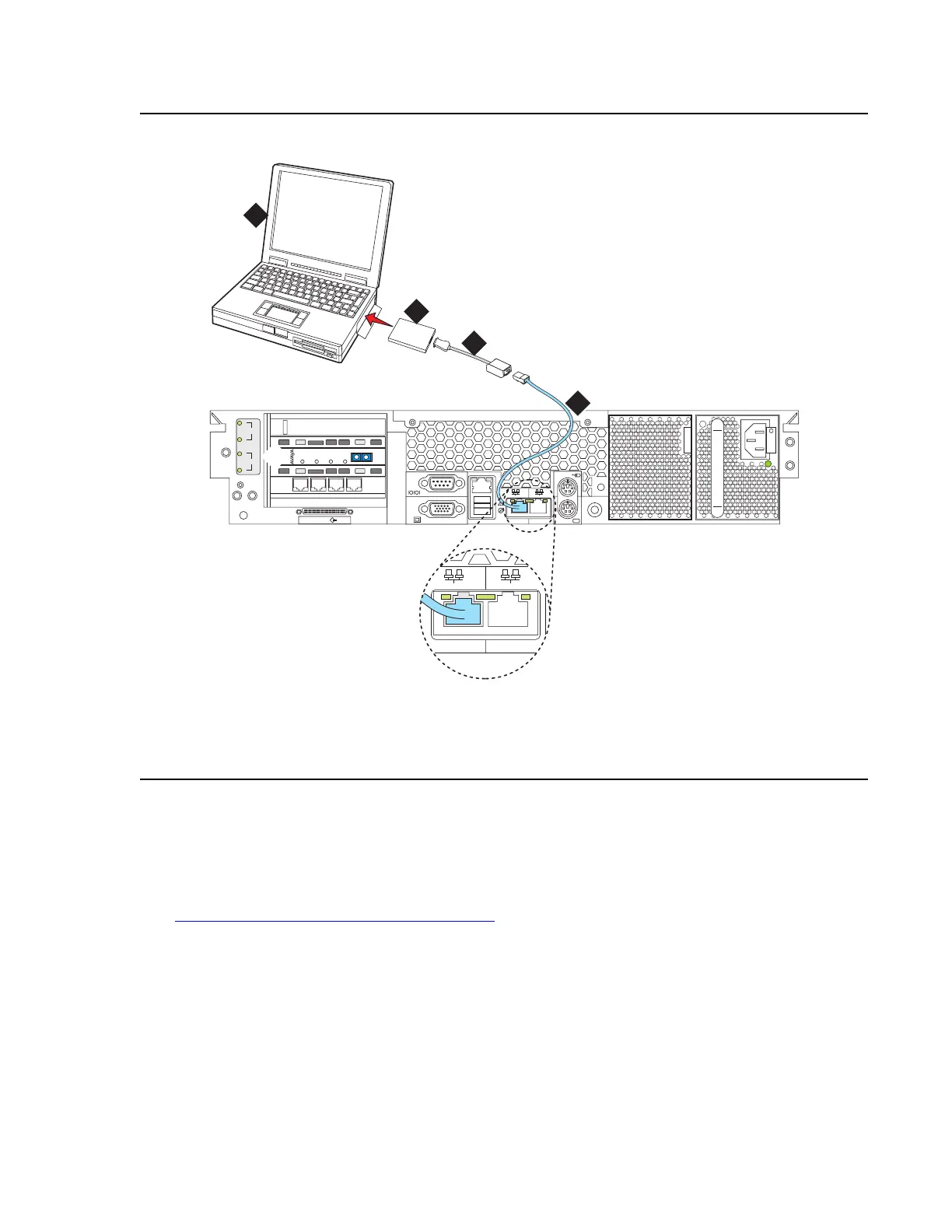

Figure 18: Services laptop computer connected directly to the S8710 Media Server
Once connected, you can administer the media server using these interfaces:
● Maintenance Web Interface for server-specific administration.
● A command line interface in a Telnet or terminal emulation application for Linux and SAT
commands (usable on the active media server only).
See Accessing the Maintenance Web Interface
on page 100 for more details.
Figure notes:
1. Services laptop
2. Network Interface Card (NIC)
3. NIC adapter cable (if necessary)
4. Black CAT5 crossconnect cable
2
3
iLO
VDCI
1
2
3
133 MGz
100 MGz
100 MGz
UID
2 1
DAL1 DUP MEMORY
RECEIVE MODE
LINC SYNC
TRANS MODE
LINC ACTIVE
cadlsrv2 KLC 042804
1
2
3
4
2 1
