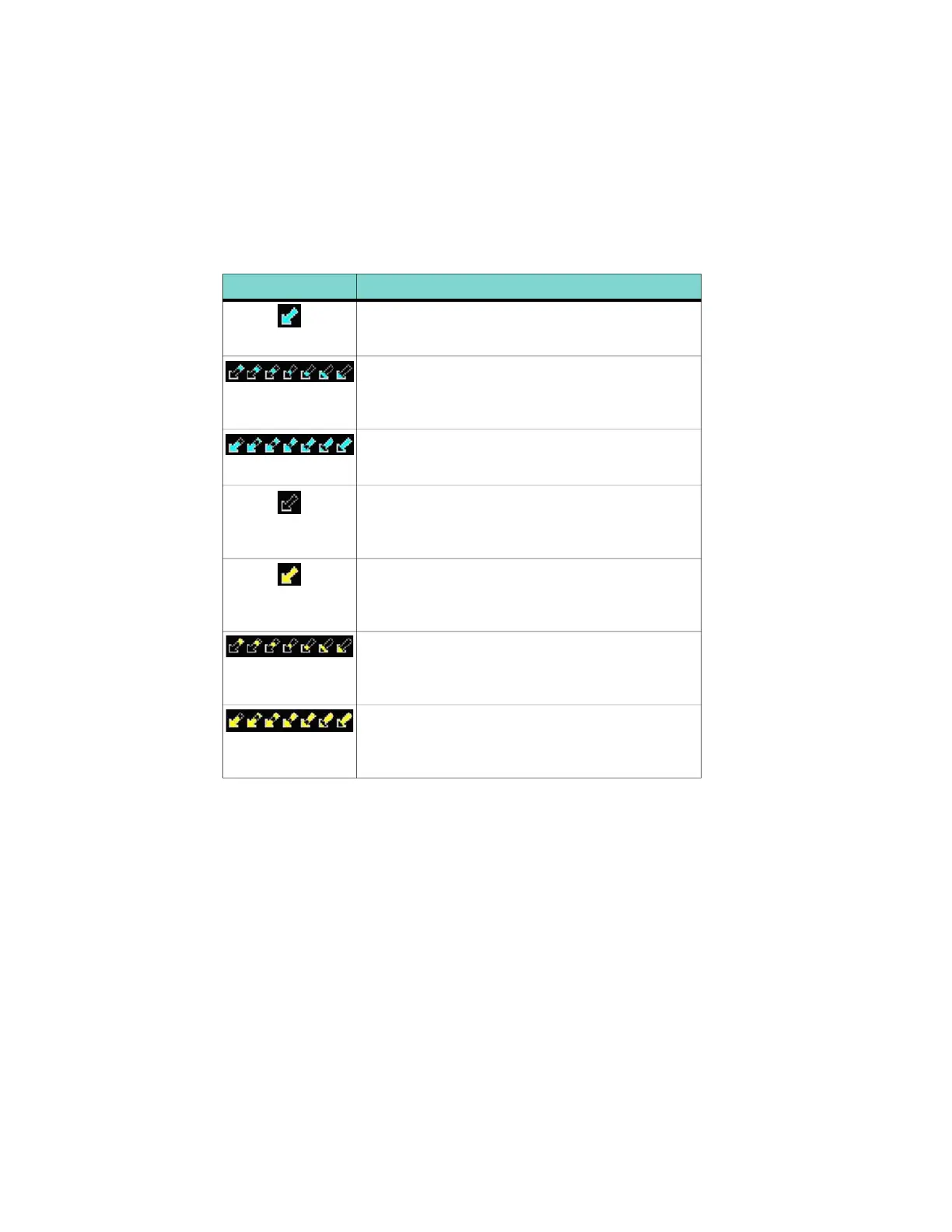

Table 9.2 Broadcast Datalink Sensor Status Block (Optional)
Symbol Status
A solid cyan arrow indicates that Datalink Radar
imagery is currently displaying on the Map page, but
the Broadcast signal is Marginal, Weak, or None.
An animated black and cyan arrow indicates that
Datalink Radar imagery is turned off for display on the
Map page, but the Datalink Radar data is valid and the
broadcast signal quality is Good.
An animated cyan arrow indicates that Datalink Radar
imagery is currently displaying on the Map page. The
broadcast signal quality is Good.
An empty (hollow) arrow indicates that Datalink Radar
imagery is turned off for display on the Map page and
the broadcast signal quality is Marginal, Weak, or
None.
A solid yellow arrow indicates that Datalink Radar
imagery is selected for display, but is not shown
because the Datalink Radar data is invalid. The
broadcast signal quality is Marginal, Weak, or None.
An animated black and yellow arrow indicates that
Datalink Radar imagery is turned off for display on the
Map page and the Datalink Radar data is invalid. The
broadcast signal quality is Marginal, Weak, or None.
An animated yellow arrow indicates that Datalink
Radar imagery is selected for display, but it is not
shown because the Datalink Radar data is invalid. The
broadcast signal quality is Good.
