4.2 European VFR Charts

600-00151-001 Rev 01 -33- Envision EX5000

3.5 4.2European VFR Charts

European VFR Charts can be included in the CMax subscription from

Jeppesen. If loaded, these European VFR Charts can be accessed

like standard CMax charts. JSUM version 2.1.5 or later must be used

to download European VFR Charts.

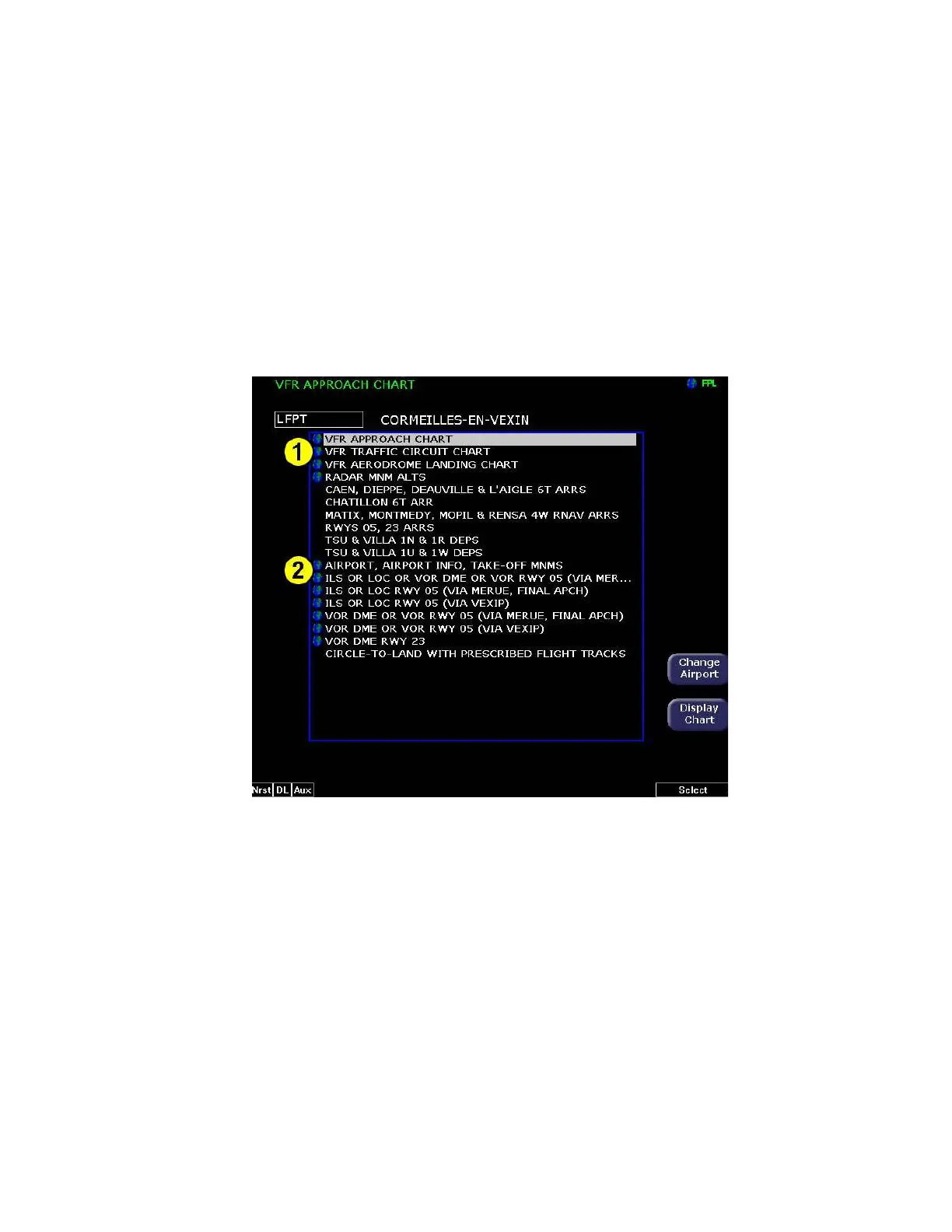

1) VFR Charts-If loaded, VFR charts will be listed first in the list of

CMax charts for a given airport.

2) IFR Charts-If loaded, standard CMax IFR charts will appear

second on the CMax Selection Page below European VFR

charts.

If a VFR chart is selected pressing "Display Airport" will display the

VFR airport diagram. Likewise, if an IFR chart is selected, pressing

"Display Airport" will display the standard Jeppesen airport diagram.
