CMax Chart Pages (Optional)
Envision EX5000 -38- 600-00151-001 Rev 01
Note that not all charts will have all information sections. Airport
charts, for example, may or may not have runway or departure
information. For larger airports, this information is often large enough
to warrant a separate chart, which can be selected from list on the
Selection page.
Charts that cannot be split into smaller sections are shown as a
complete chart, with the View button not displayed, since only one
View type is available.

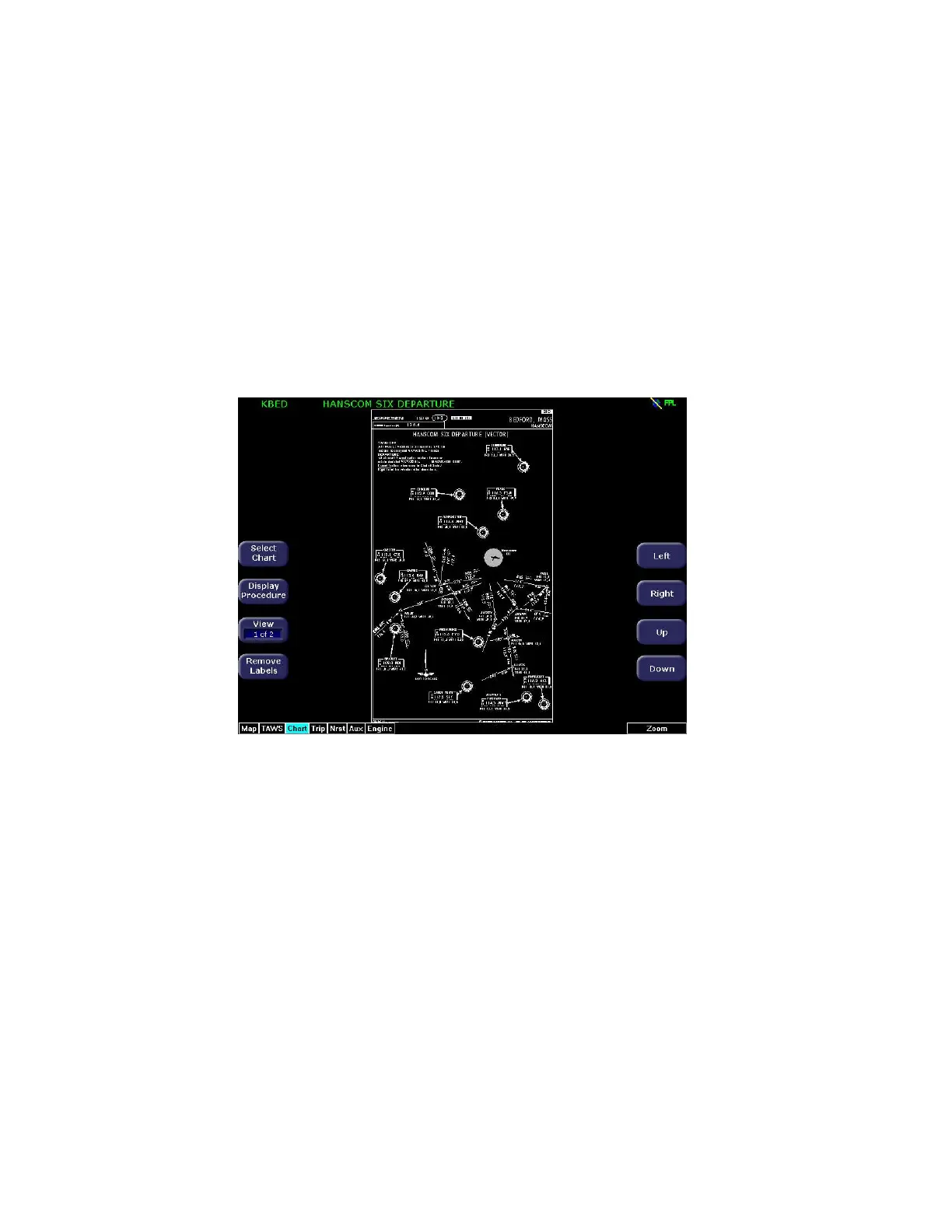

Figure 3.6 Airport Departure Chart (Night View)
