Line Styles
600-00151-001 Rev 01 -101- Envision EX5000

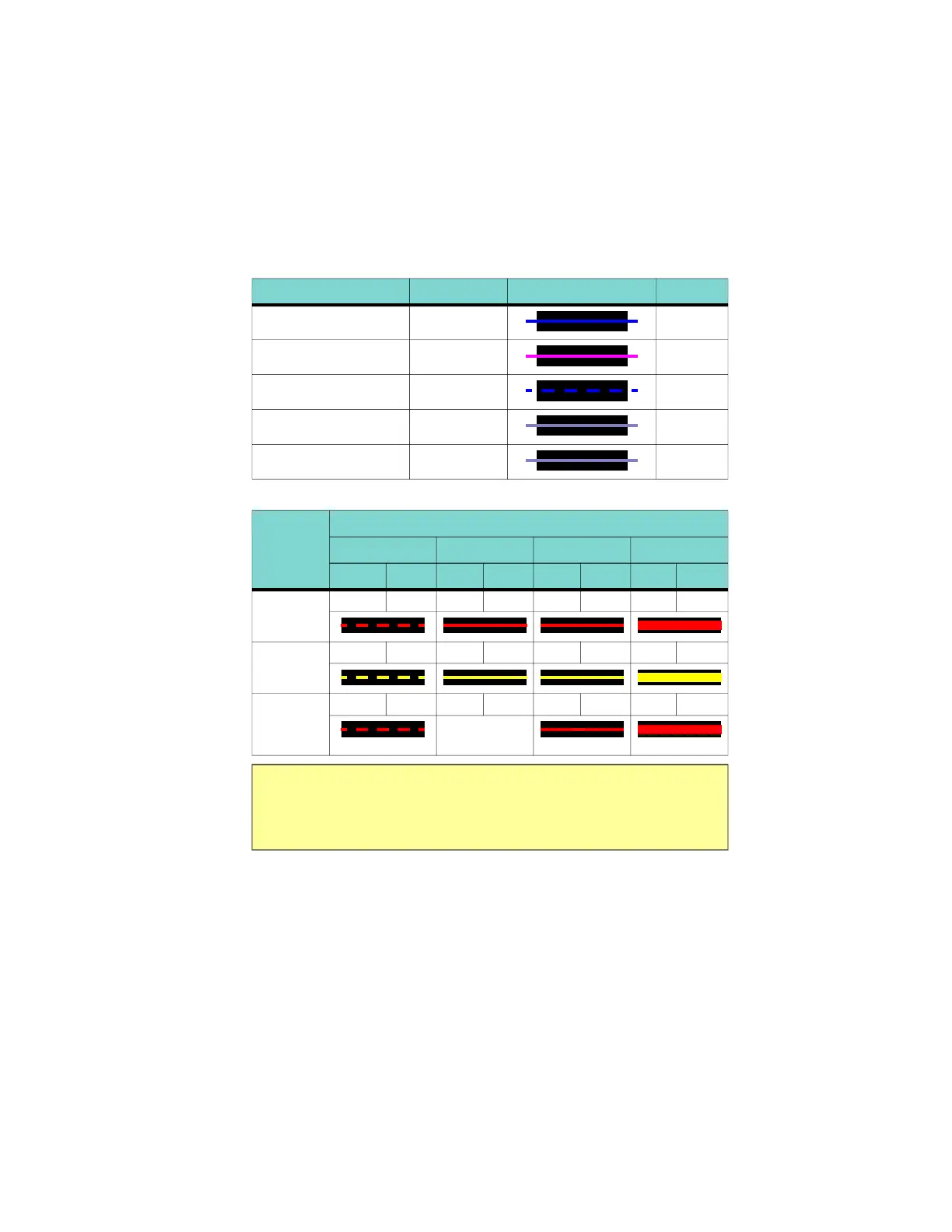

9.6 Line Styles
Table 9.7 Airspace and Airways Lines
Item Color Line Label
Class B Blue Elevation
Class C Magenta Elevation
Tower Zone Airspace Dashed Blue None
Victor Airways Blue grey ID Label
Jet Airways Blue grey ID Label
Table 9.8 SUA and TFR Status Lines
Region
Type
Status
Inactive Unknown Pending Active
Line Label Line Label Line Label Line Label
Prohibited,
Restricted
Dashed Inact Single Unk Single Pend Triple Act
Warning,
Alert, MOA
Dashed Inact Single Unk Single Pend Triple Act
TFR Dashed N/A N/A N/A Single N/A Triple N/A
N/A
Note: For adjacent or overlaying types of Special Use Airspace (e.g.
Restricted Areas or Prohibited Areas within larger MOAs), some masking of
the border lines may occur. See current aeronautical charts for accurate
boundaries.
