Avidyne Envision EX5000 - Table 9.4 Map Symbols - Navigational Fixes; Table 9.5 Map Symbols - Traffic Symbols; Table 9.6 Map Symbols - Other

Reference
Envision EX5000 -100- 600-00151-001 Rev 01

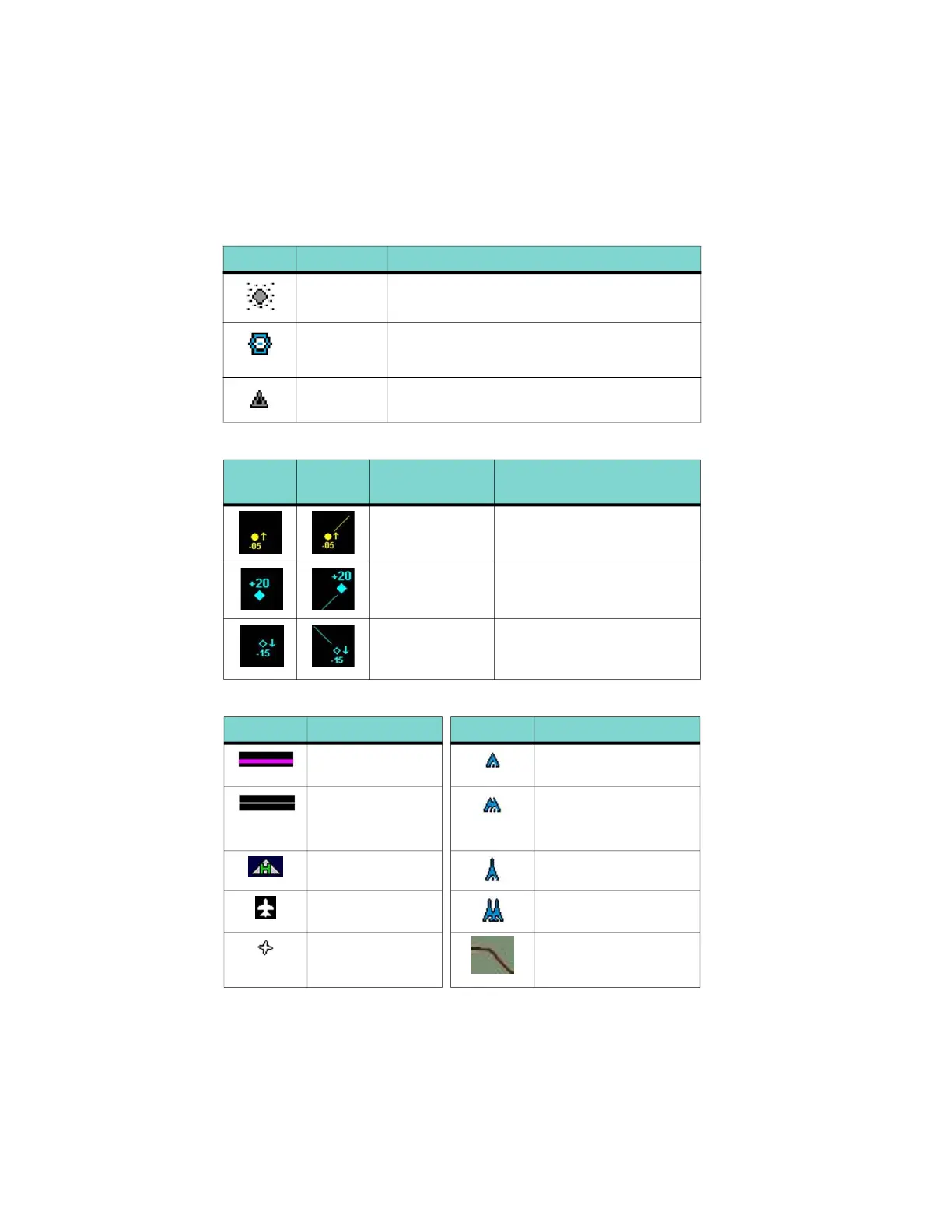

Table 9.4 Map Symbols – Navigational Fixes
Symbol Item Description
NDB All NDBs
VOR All VORs
Intersection Terminal, Jet, and Victor airway waypoints
(intersections)
Table 9.5 Map Symbols – Traffic Symbols
Non-TAS
Symbol
TIS
Symbol
Type Meaning
Traffic Alert (TA) Traffic within the alert zone
defined by the traffic sensor.
Proximate Traffic Traffic close to your position
but not within an alert zone.
Other Traffic Traffic detected by the traffic
sensor, but determined not
to be a current threat.
Table 9.6 Map Symbols – Other
Symbol Item Symbol Item
Flight Plan
(active leg)
Single Low Obstacle >=
200q AGL < 1000q AGL
Flight Plan
(inactive leg)
Low Obstacles within
1NM of each other >=
200q AGL < 1000q AGL
Map Orientation Single Obstacle >= 1000q
AGL
Ownship Symbol Obstacles within 1NM of
each other >= 1000q AGL
Flight Plan, Course
Waypoints
Interstate Highway
