3.6.2 Airport Chart Views
For airport charts, the available views are as follows:

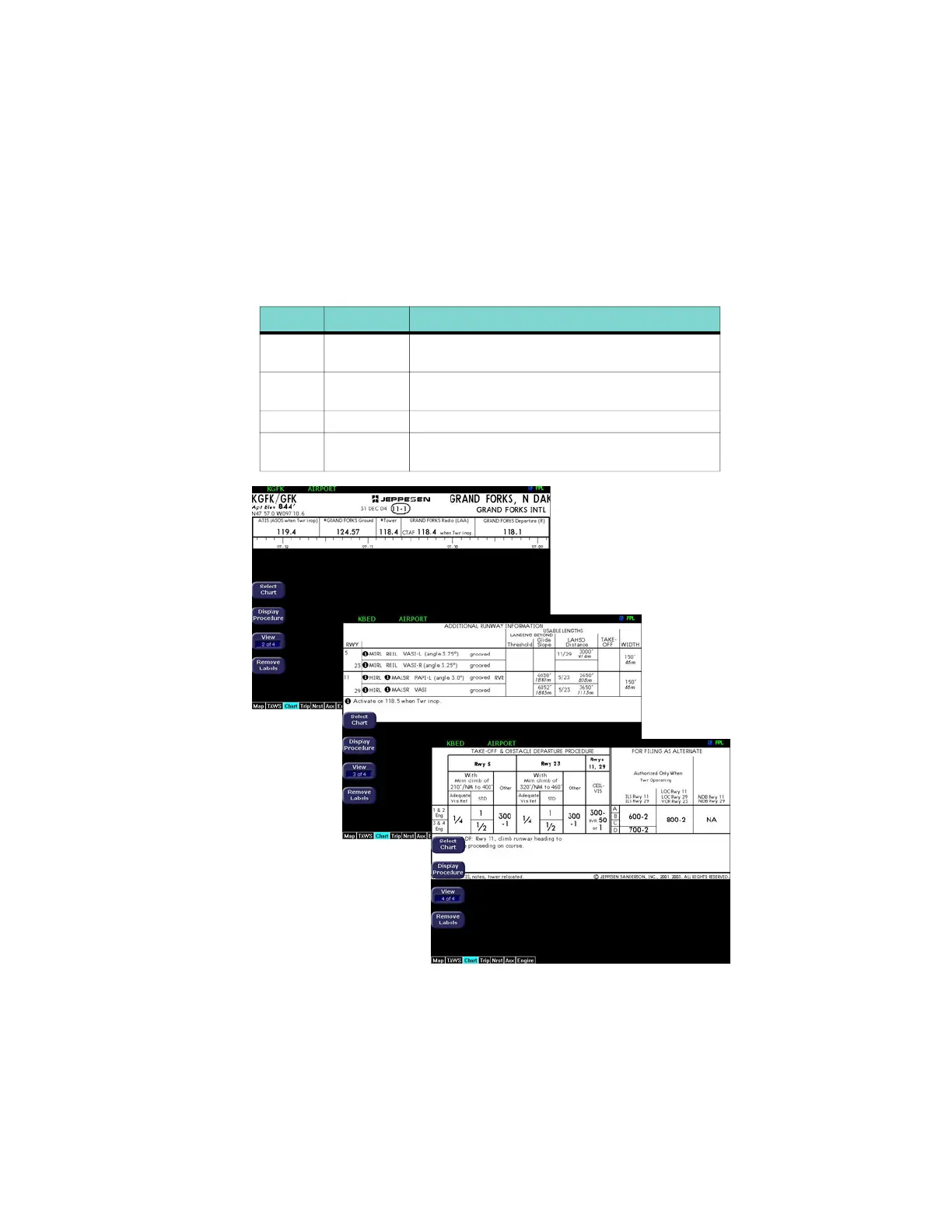

Figure 3.5 Airport Chart Views
Table 3.2 Airport Chart Views
# Chart Description
1 of 4 Plan Includes a flight plan overlay, if available (shown
in Figure 3.2).
2 of 4 Header Includes general chart information and
communications frequencies.
3 of 4 Runways Shows runway information for the airport.
4 of 4 Departure Displays specific departure procedure
information.
Header View
Runways
View
Departure View
