Install Access Control Core without mounting bracket
The mounting bracket is optional when installing the Access Control Core in the E1 enclosure of the Core Series
12/24V 4-Door Smart Hub or Core Series 24V Elevator Smart Hub, or the E2 enclosure of the Core Series
12/24V 8-Door Smart Hub.

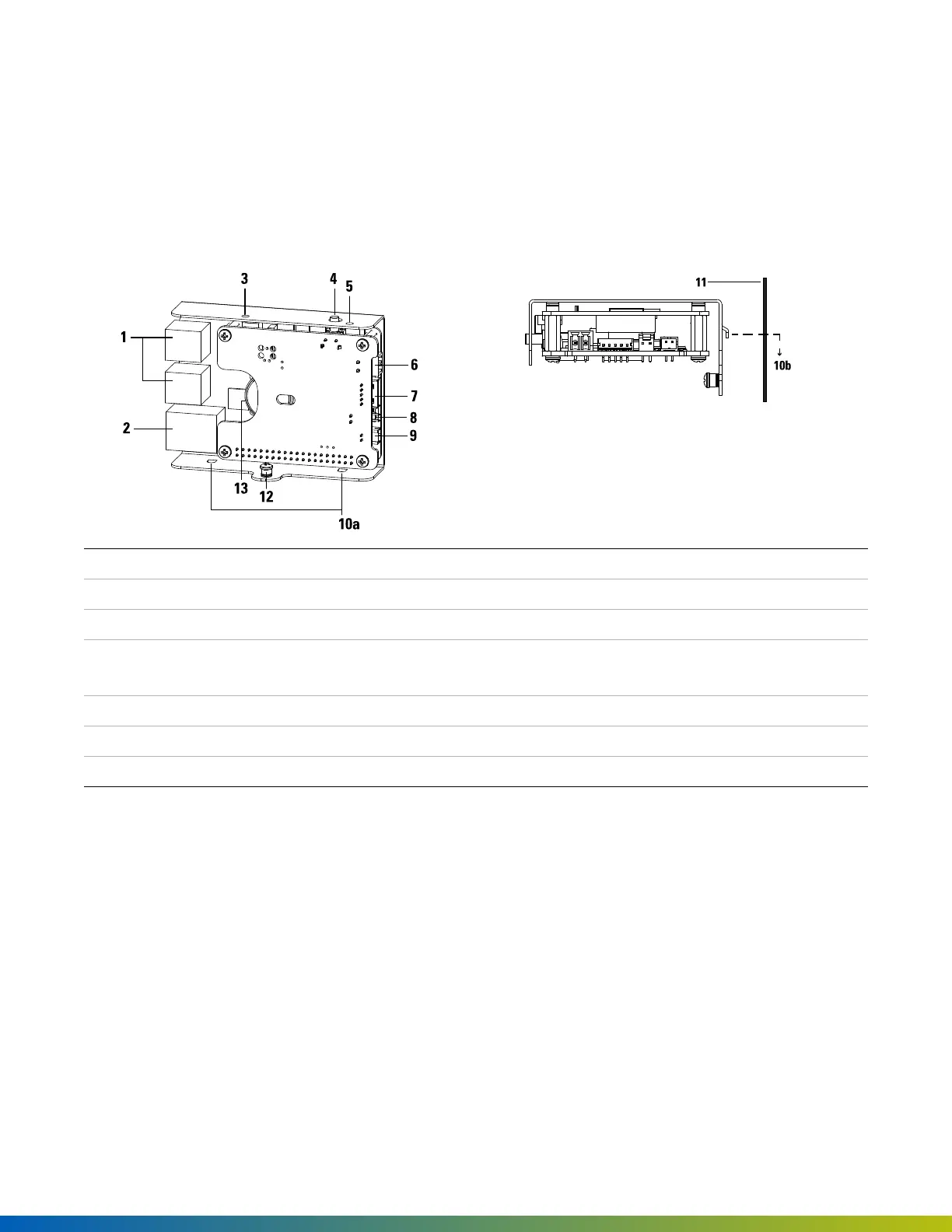

Front view
Side view with enclosure
1
USBports 8 Tamper input
2
Ethernet connector 9 LED out
3
Status LED 10a Core board hooks
4
ADMIN button 10b Core board installed facing down, up, left, or right,
depending on the enclosure model
5
Power LED 11 Back of enclosure
6
Power input 12 Mounting screw
7
SPIBus Link connector 13 Backup battery, CR2032
Mounting
1. Mount the Access Control Core perpendicular to the back of the enclosure, by hooking tabs into the
holes in the back of the enclosure.
2. Slide the Access Control Core into the enclosure (see 10a, 10b, 11). Then gently tighten the mounting
screw (12). Do not overtighten.
Wiring
1. Attach power connector (12/24VDC; see 6) to the input.
2. Connect the Ethernet cable (Internet connection required; see 2) prior to provisioning.
Installation 13
