Avigilon ALTA Core Series User Manual

Wiring the Core Series 12/24 16-Door Large Smart Hub
The Core Series 12/24 16-Door Large Smart Hub (SYS-16ENT-DVE6)uses the LifeSafety Power FP0150 and
FP250to power the Access Control Core and 8-Port Boards; LifeSafety Power B100secondary power supplies;
LifeSafety Power C8 Relay Based Lock Control Modulesto power 12-24V locking hardware; and the LifeSafety
Power D8P Power Distribution Module to power 12V and 24V locking hardware and accessories.

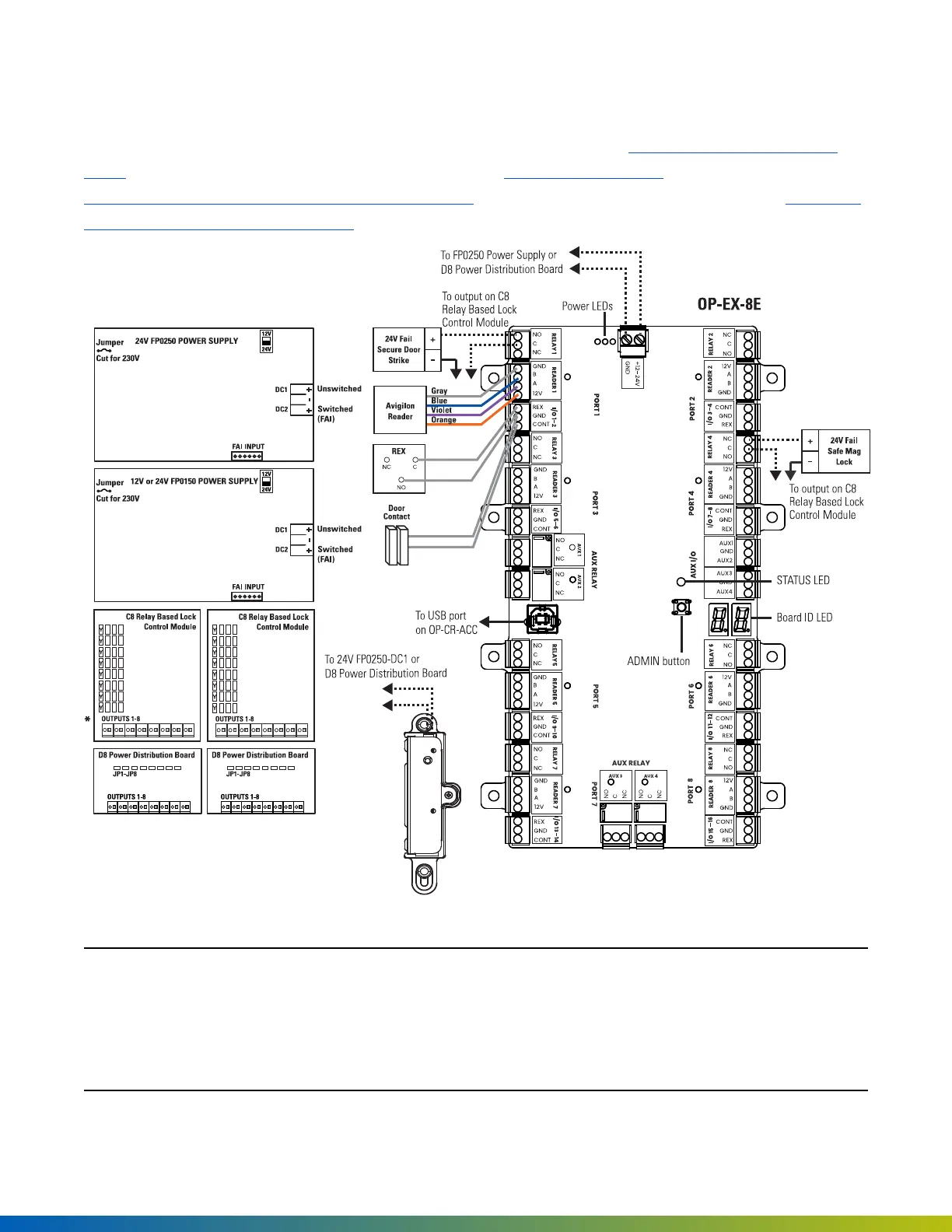

Figure 19 SYS-16ENT-DVE6wiring diagram
FP0150 and
FP0250 Power
Supplies
The main output can be switched by the Fire Alarm Interface (FAI).
Fail safe and fail secure are ways of configuring lock hardware:
l
Fail-safehardware unlocks when power is interrupted or lost.
l
Fail-securehardware locks when power is interrupted or lost.
Installation 50
